Acuity Prime

The new blueprint for flatbed print ROI

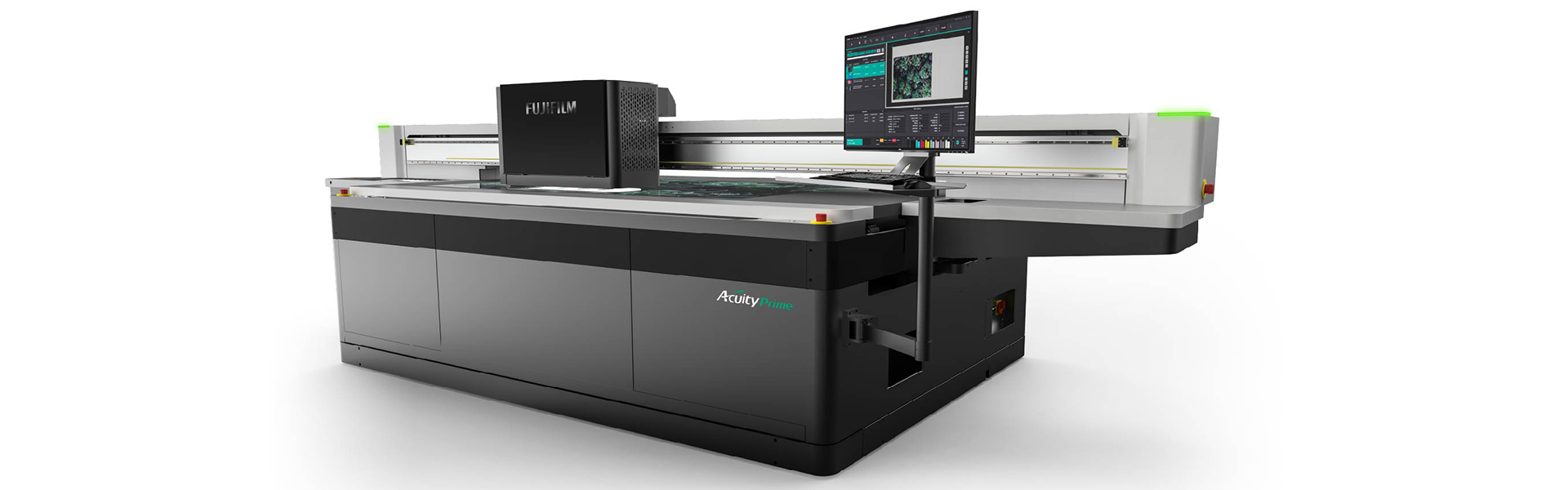

Banner Image

Overview

The benchmark platform for versatile print production

A true flatbed with a unique, exceptional design and high value, the Acuity Prime offers high quality printing on a range of rigid and flexible media, supported by its five dedicated vacuum zones and jettable primer. This range is available at a cost effective price point and offers an excellent return on investment.



Produce a wide range of applications

With outstanding image quality and excellent adhesion to a broad range of rigid and flexible media, materials and objects, the Acuity Prime can produce an amazing variety of printed products for distance and close viewing. The vacuum table can handle almost any sheet material. It secures rigid and flexible media and holds it perfectly flat for high quality print across every sheet.

 acuity prime wide format printer - acuity select
acuity prime wide format printer - acuity select

Expand your creative options

The option to print with white and clear inks, and to print directly to almost any material in perfect registration, enables the Acuity Prime to produce high value, creative work that could offer opportunities for new revenue. With the jettable primer option, the Acuity Prime can adhere to a wide variety of industrial media.

Designed with the operator in mind

At Fujifilm we understand the value of production time and usability, so we designed the Acuity Prime with the operator in mind. With a new and user-friendly GUI, easy clean printhead maintenance and visible status lights for the ink tanks, operators are able to spend less time maintaining the machine and more time printing.

 acuity prime wide format printer - ease of use
acuity prime wide format printer - ink prime

Lower cost of ownership and excellent ROI

With variable drop-size printheads and highly pigmented inks, Acuity Prime printers lay down a thin ink film, which minimises production costs, and in combination with a competitive system price, support an excellent ROI.

Download the Overview Sheet

Acuity Prime Series Overview

File Size:
783.5 KB
Document Type:
Portable Document Format
Download Resource

Features

The dedicated flatbed design with media registration pins ensures accurate registration for edge-to-edge printing and tiling of large layouts over multiple boards, even with multiple print passes.

 acuity prime - wide format printer - feature image
acuity prime - wide format printer - feature image

Acuity Prime printers are built to fit into compact spaces and the accessible design gives you flexibility in the way you work around the machine.

Pneumatic registration pins enable quick, repeatable, easy loading of rigid media in perfect registration.

 acuity prime - wide format printer - feature image
acuity prime - wide format printer - feature image

Greyscale printheads in a staggered configuration deliver near-photographic image quality that is consistent over the whole bed.

Five dedicated vacuum zones tailored to common media sizes reduce the amount of bed masking required and enable quick media changeover. Adjustable vacuum strength provides optimum handling for different media.

 acuity prime - wide format printer - feature image
acuity prime - wide format printer - feature image

The Acuity Prime can be configured with either 4,5,6 or 7 colour channels. The channels are populated with ink sets that best suit your application needs, including CMYK, white, clear and a jettable primer for excellent adhesion to more industrial media types.

How To Buy

Acuity Prime

Contact our sales team

We make it easy for you to purchase products, supplies and services from us. Our extensive network of representatives can help you choose the right solutions for your business needs.

Fill in your details below and a member of our team will be in contact.




Product image

Specifications

 Maximum print speed  150m2/hr
 Maximum rigid media size  2.5 x 1.25m
 Maximum media weight  45kg/m2
 Maximum media thickness  51mm
 Inks  Fujifilm Uvijet HM UV LED ink curable inks
 Colour configuration options Acuity Prime 20:
4 channel - CMYK
5 channel - CMYK + P, CMYK + W or CMYK + Cl
6 channel - CMYK + P + W, CMYK + P + Cl or CMYK + W + Cl

Acuity Prime 30:
4 channel - CMYK
5 channel - CMYK + P, CMYK + W or CMYK + Cl
6 channel - CMYK + P + W, CMYK + P + Cl or CMYK + W + Cl
7 channel - CMYK + P + W + Cl
 Curing system  Long lasting, low energy LED curing system
 Printheads  Ricoh Gen 5 greyscale, variable drop 7 - 21 pl
 Printing resolution  20: Maximum 726 x 1,200 dpi (Fine Art)

30: Maximum 726 x 1,200 dpi (Fine Art)
 RIP recommendation  ColorGATE, Caldera, Onyx
 Power requirements  220-240 VAC, single phase 50Hz/60Hz
 Compressed Air Requirement  Constant supply (24 hrs)

Clean and dry, with filtration (if required)

Minimum pressure 90 psi / 6.20 bar
 Dimensions (W x L x H)  2.1 x 4.9 x 1.5 m
