Housing for G-type cartridges (standard type made of stainless steel).

Support

Overview Housing for G type cartridges (standard type made of stainless steel)

Can be used widely for general applications.
A wide variety of types are available.
Applicable element: G type cartridge (DOE: Double Open End, gasket type)

* Various types of adapters and optional parts are available.
* Customized design and manufacturing services are available for applications that require other than those standard specifications type. Contact us for consultation on large size housings and housings with special specifications.

Specifications

Main specifications

Pressure resistance: 0.49MPa
Heat resistance: Less than 100℃
Material: Main body: SUS304 stainless steel (for 3 cartridges, for 6 cartridges)
/ SUS316 stainless steel (for 1 cartridge)
Packing: silicone (standard)

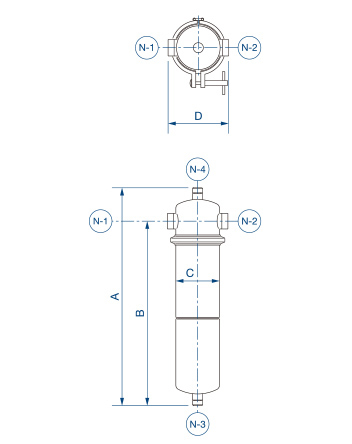

Outline dimensions / Diameter Number of cartridges fitted: 1

	Type
	FSG1-1 20PA	FSG1-2 20PA	FSG1-3 20PA
A (mm)	431	685	939
B (mm)	365	619	873
C (mm)	φ86.6 (Outer diameter)
D (mm)	120
N-1 Inlet	Rc3/4 (20A)
N-2 Outlet	Rc3/4 (20A)
N-3 Drain	G1/4 (8A) (Plug with a roulette)
N-4 Vent	G1/4 (8A) (Plug with a roulette)
Pressure gauge Nozzle	None
Number of cartridges (Equivalent to 250 mm in length)	1	2	3
Operating weight (approx. weight in kg)	3.5	5.5	7.5

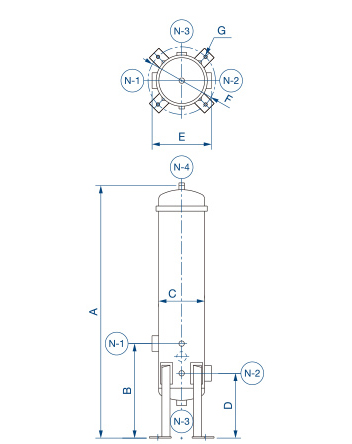

Number of cartridges fitted: 3

	Type
	FSG3-2 40PA	FSG3-3 40PA
A (mm)	935	1185
B (mm)	350	350
C (mm)	φ170 (Outer diameter)
D (mm)	240
E (mm)	220
F (mm)	250
G (mm)	4-φ12
N-1 Inlet	Rc1-1/2 (40A)
N-2 Outlet	Rc1-1/2 (40A)
N-3 Drain	Rc3/4 (20A)
N-4 Vent	G1/4 (Plug with a roulette)
Pressure gauge Nozzle	Rp1/4 (8A)
Number of cartridges (Equivalent to 250 mm in length)	6	9
Operating weight (approx. weight in kg)	28	35

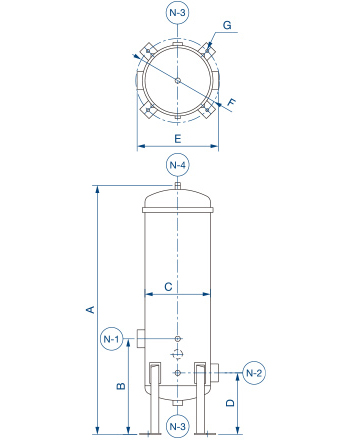

Number of cartridges fitted: 6

	Type
	FSG6-2 50PA	FSG6-3 50PA
A (mm)	950	1200
B (mm)	365	365
C (mm)	φ250 (Outer diameter)
D (mm)	235
E (mm)	310
F (mm)	320
G (mm)	4-φ12
N-1 Inlet	Rc2 (50A)
N-2 Outlet	Rc2 (50A)
N-3 Drain	Rc3/4 (20A)
N-4 Vent	G1/4 (Plug with a roulette)
Pressure gauge Nozzle	Rp1/4 (8A)
Number of cartridges (Equivalent to 250 mm in length)	12	18
Operating weight (approx. weight in kg)	55	70

* For details on the methods of use, refer to the instruction manual included with the product.
* The housing may be built to order in terms of shape and size. For details, contact your sales agent.
* Specifications are subject to change for improvement purposes without prior notice.
