Overview
-
These ultra-high flow rate cartridge filters demonstrate excellent cleaning performance for Gen 6 and Gen 7 large LCD glass substrates.
-
The proprietary membrane offers excellent performance by combining a high fine particle retention with a high flow rate and long service life.
Features
Ultra-high flow rate
The cartridge realizes a high flow rate equivalent to 2 times that of earlier cartridges. A flow rate of 100 L/min. or more is ensured with a pore size of 0.2µm. (At ΔP = 0.02 MPa)

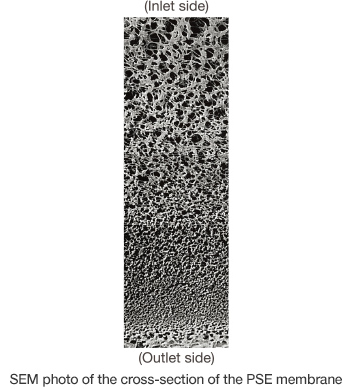

The proprietary dense inner layer of the PSE membrane that features a well-defined pore size distribution ensures reliable retention of fine particles.
Can be used with existing housings
The cartridge fits many existing housings that are ready for use at a high flow rate, and an ultra-high flow rate can be obtained without changing the housing.*1
- *1 Regarding fittability to the housings, contact us for consultation.
Main applications
The cartridge employs a membrane of a favorably received, proprietary asymmetrical structure (PSE membrane). It demonstrates excellent performance in the following applications that require high fine particle retention performance, a high flow rate and long service life.
-
Filtration of cleaning water used by wet process equipment that makes large glass substrates for LCD
Specifications
Table of Performance Characteristics
|
Item |
Unit |
Performance |
Remarks |
|||
|---|---|---|---|---|---|---|
|
Pore size |
µm |
0.1 |
0.2 |
0.45 |
||
|
Size |
Length |
mm |
266 |
*1 |
||
|
Outer diameter |
mm |
81.5 |
|
|||
|
Maximum differential pressure |
25℃ |
MPa |
0.34 (Positive pressure) |
|
||
|
PH area to be used |
|
1 - 14 |
*2 |
|||
- *1 Please contact us if you need detailed dimensions of the M type.
- *2 In the case of using the cartridge for chemical fluid filtration, prior evaluation should be carried out under the planned conditions of use.
Material
|
Part name |
Material |
|---|---|
|
Guard |
Polypropylene |
|
Center core |
Polypropylene |
|
Support |
Polypropylene |
|
Membrane filter |
Polysulfone (Asymmetric membrane) |
|
O-ring |
EPDM (Silicon, Viton) |
Water flow differential pressure ΔP high flow rate area
Abbreviated product name
|
|
Pore size |
|||
|---|---|---|---|---|
|
0.1 µm |
0.2 µm |
0.45 µm |
||
|
Shape |
M type |
PSECM10XLSPPW1 |
PSECM20XLSPPW1 |
PSECM45XLSPPW1 |
|
PM type |
PSECPM10XLSPPW1 |
PSECPM20XLSPPW1 |
PSECPM45XLSPPW1 |
|
Size
- * For details of the methods of use, refer to the instruction manual that comes with the product.
- * The product may be built to order, depending on the shape and/or size. For details, contact your sales agent.
- * Specifications are subject to change for improvement purposes without prior notice.
