Jet Press 1160CF

High-speed Continuous Feed Inkjet Printing System

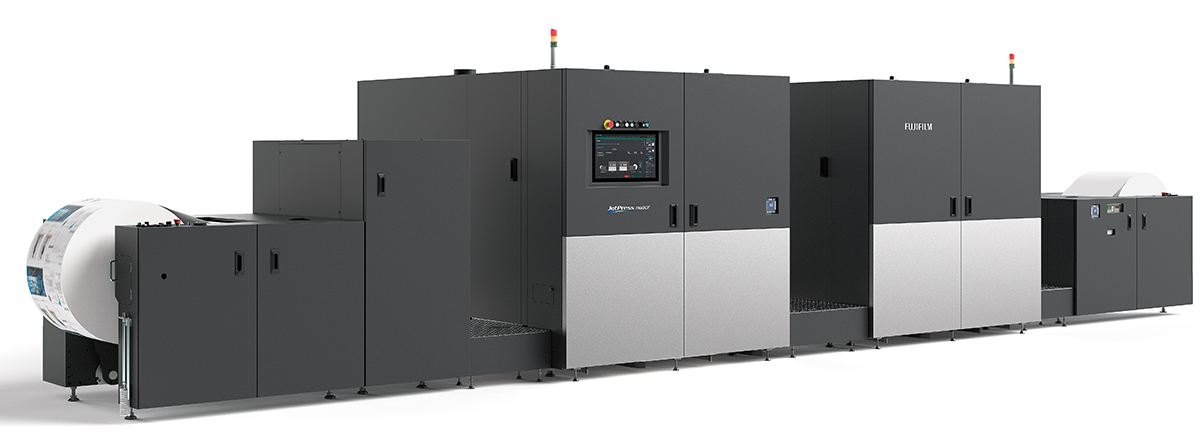

Jet Press 1160CF Banner Image

Overview

Printing with a high level of productivity and quality

The highest printing density in the industry (in 160 m/min continuous paper inkjet printer class)

Features

Full-colour printing at 160 m/min*1

The printer can print in full colour at a maximum speed of 160 m/min, which is equivalent to 2,096 pages per minute on A4*2.
Mass batch prints of tens of thousands of pages may be created at high speeds through the use of the unwinder and rewinder*3
This ensures great productivity and stable processing for high-volume/short-duration print jobs such as trans-promo materials and invoices.

  • *1: Speed priority mode (1,200 x 600 dpi)
  • *2: Two-sided printing with 2up A4 layout
  • *3: Optional

Invoices

Pigment Inks with High Concentrations

High-quality printing is achieved using high-concentration pigment ink which is suitable for both uncoated paper and matte-coated paper.*

Customers have the option to choose between 2 types of ink listed below.
- Ink for uncoated paper
- Ink for both uncoated and matte coated paper

High-quality, high-definition prints up to 1,200 x 1,200 dpi

Printer can produce output image with great resolution:
- 1,200 x 600 dpi (with a print speed of 160 m/min)
- 1,200 x 1,200 dpi (with a print speed of 80 m/min)
It prints characters and numbers clearly.

Crimped postcard

Print server featuring Fujifilm Business Innovation's unique technology provides high quality output and rapid processing.

  • Faster On-the-fly*1 printing
  • High quality image data processing 1,200 x 1,200 dpi, 8 bit
  • Supporting APPE*2 perfect for PDF output
  • High-precision CMYK profiles
  • High-speed, large volume printing of variable data
    (Mercury RIP, Industry standard PPML, PDF/VT-1, PDF/VT-2)
  • Increased fault tolerance due to OS HDD redundancy
  • Uninterruptible power supply (UPS)*3
  • *1: Requires direct printing without creating raster data in advance.
  • *2: Adobe® PDF Print Engine
  • *3: A product sold by Fujitsu. Two units are required.

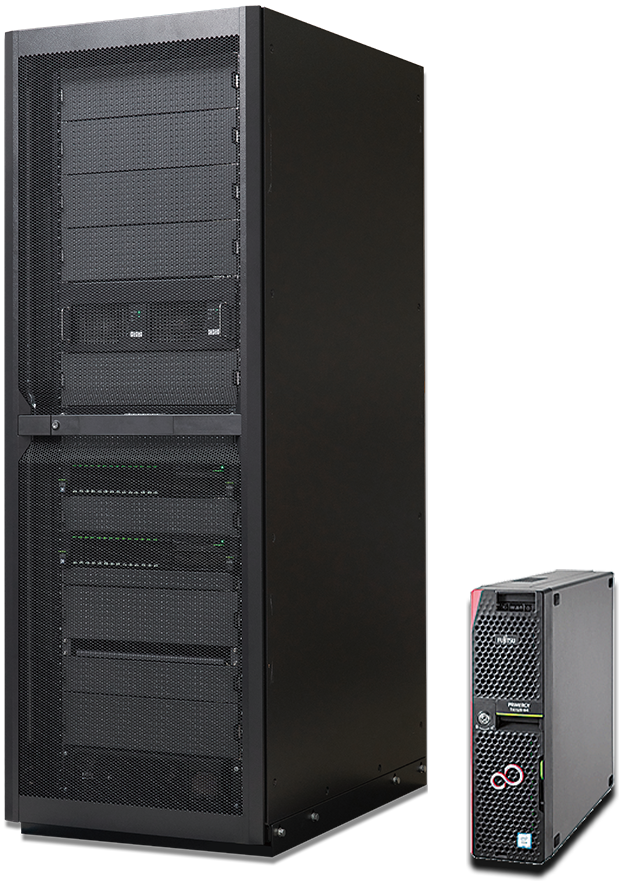

Print server

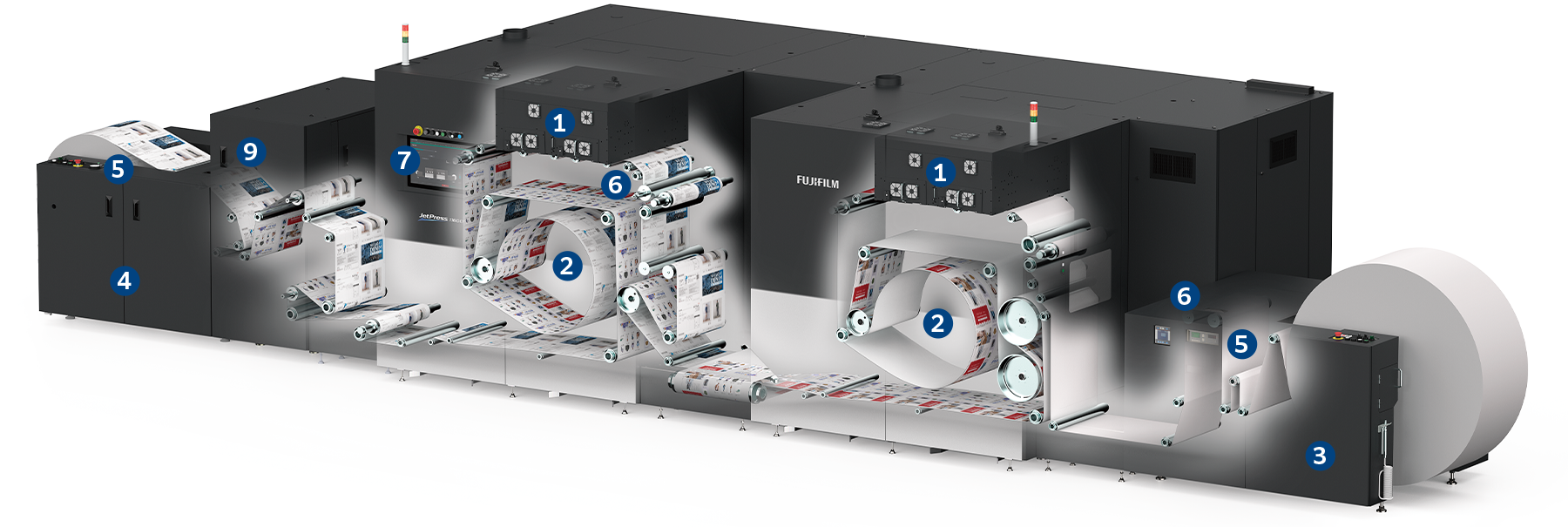

Inner Structure

  1. Print Head Box
    The print head supports 1,200 x 1,200 dpi printing.
    A single dot can be expressed with up to three gradations, allowing smoother density transitions.
  2. Dryer
    Two types of drying technology are installed: heat drum and heat air dryers.
  3. Unwinder
    Lifting up/down heavyweight roll paper and paper alignment can easily and quickly be done with simple button operations. Furthermore, as it is directly connected to the printer, it can handle paper with high precision.
  4. Rewinder (Optional)
    Both upper and lower windings are available. A touch roller is installed to prevent wrinkles while rewinding.
  5. Tension Controller
    Tension controller stabilise paper feed even at high printing speeds by maintaining constant paper tension.
  6. Edge Guide
    Automatically adjusts paper meandering, allowing stable printing.

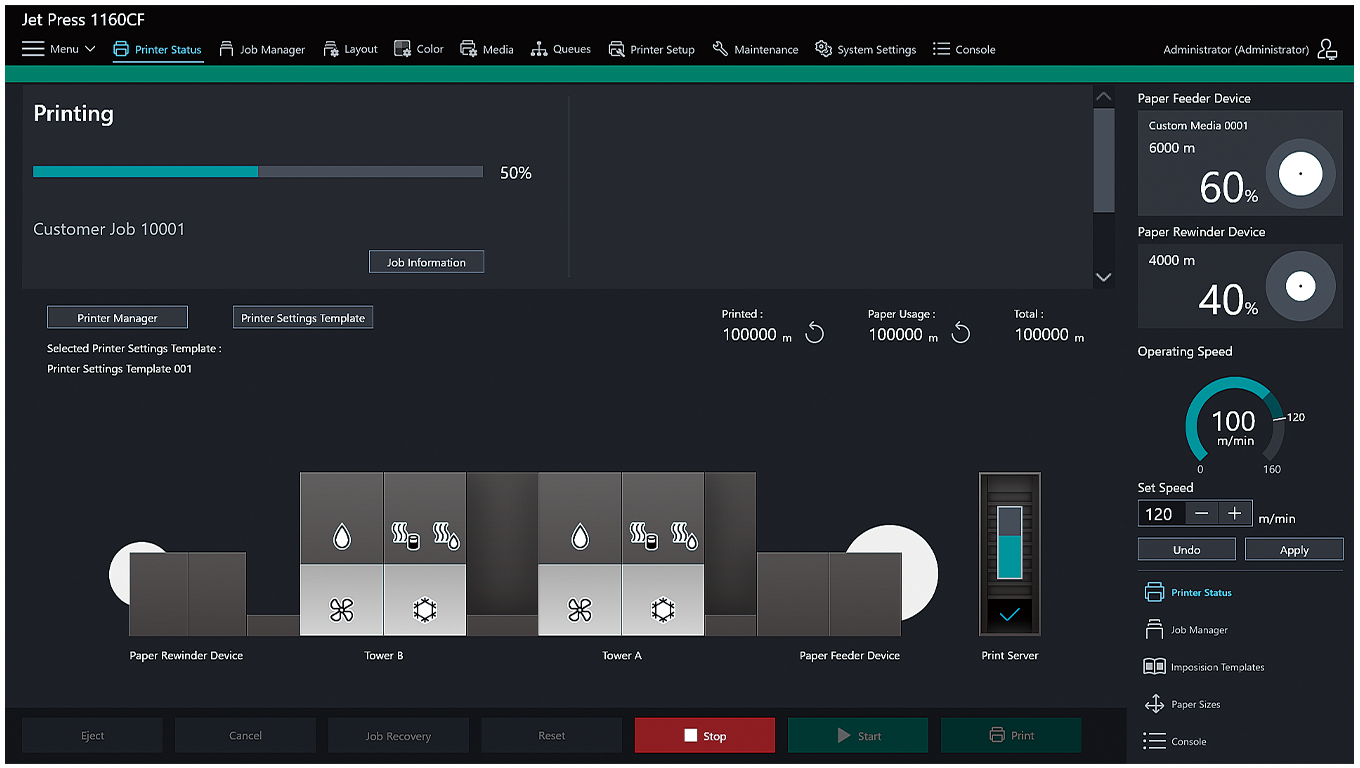

  7. Operation Panel

    Machine operation is available through touchscreen interface.

    Operation Panel

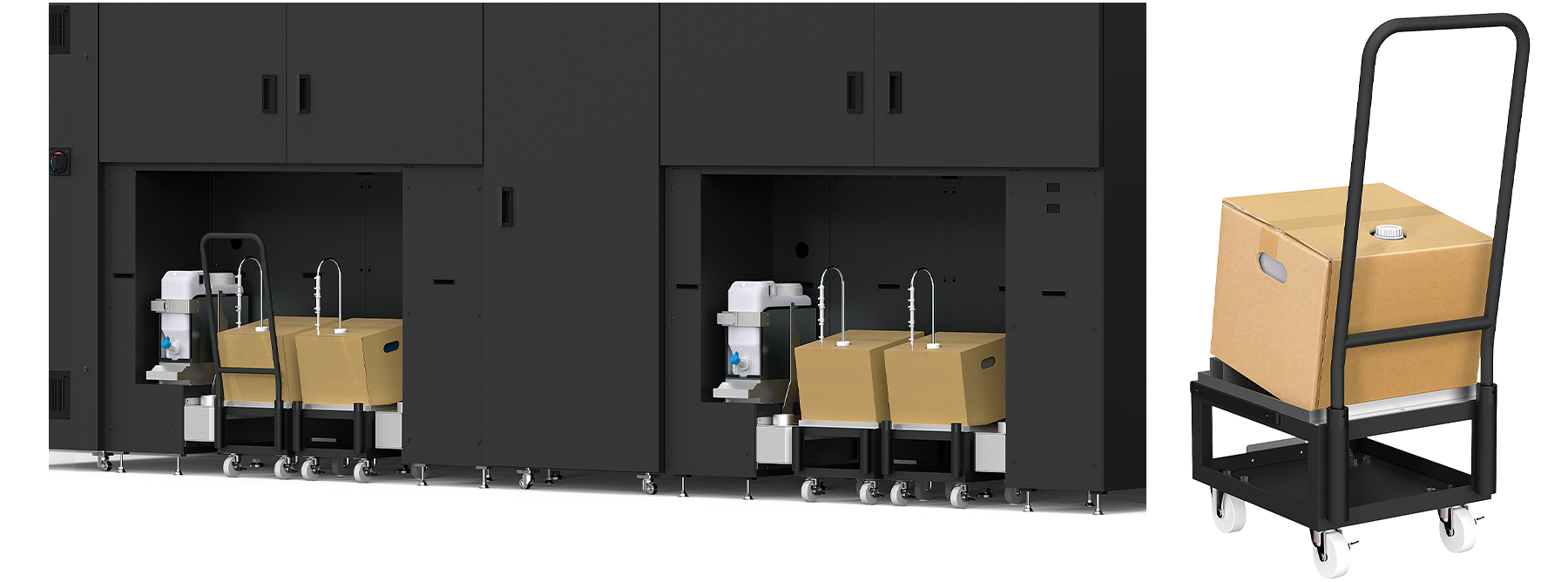

  8. Cart Ink Pack

    Four-colour ink packs are installed at the back of the printer. Each ink pack weighs approximately 20 kg, but replacement can be performed easily using the cart.

    Cart Ink Pack

  9. Inspection Box (Optional*)
    Capable to house an inspection system that is used for detection of print quality issues and variable data errors.
    • Inspection box availability varies depending on destination country. Please contact our sales representative for details.

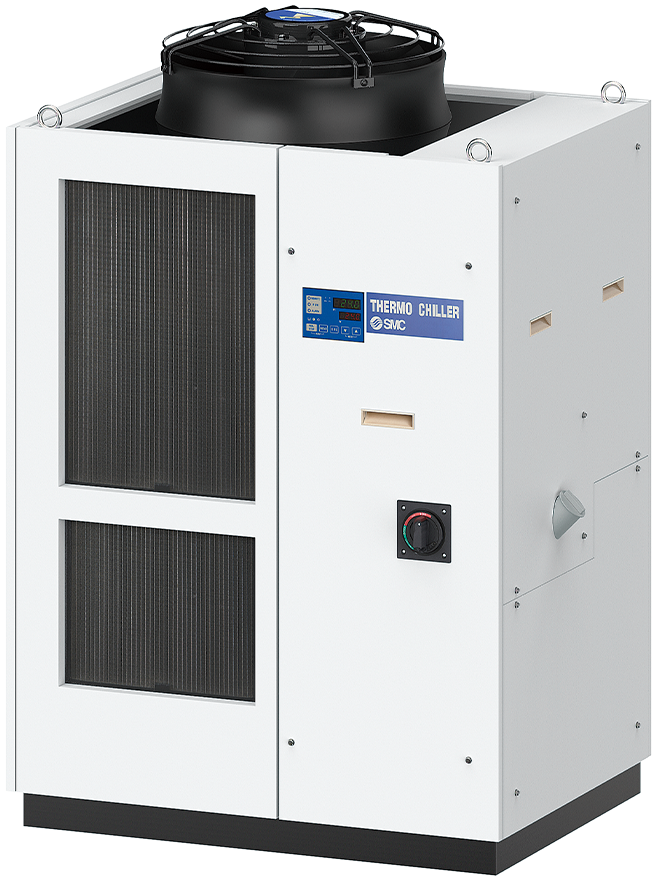

  10. Chiller

    The chiller circulates cold water to cool the paper after drying.

    Chiller

  11. Slack Web Unit (Optional)
    Printer can also be connected to 3rd party finishers (loose tension type) by using the slack web unit. The unit applies tension to roll paper instead of the rewinder.
