"4D High Resolution" lenses
HF-XA-1F Series
Compatible with 2/3" to 1/1.2" (max.)
large image sensor cameras
FUJINON HF-XA-1F series is designed for "4DHR" and compatible with IMX250 high performance CMOS image sensor (2/3", 5 megapixels, 3.45µm pixel pitch).
● Compatible sensor size (std.): Ideal size to maximize the target resolution.
○ Compatible sensor size (max.): Adaptable sensor size varies depending on the model. Select a lens after checking the peripheral light amount and resolution.
Main features
Minimizing degradation of resolution even when the shooting distance or aperture is changed
General machine vision camera lenses exhibit problematic degradation of resolution when the shooting distance or aperture is changed. FUJINON HF-XA-1F features high performance "4D HR" to minimize such degradation.
It maintains a highly consistent image sharpness from the center to the edges, while mitigating degradation of resolution caused by changes in the shooting distance or aperture. This enables consistent delivery of high-resolution images under a wide variety of installation and shooting conditions.
New Anti-shock & vibration
Our unique mechanical design realizes anti-shock and vibration performance compatible with various installation environments.
Iris parts having different F.no. are included in each lens package. These parts can be choosed depending on the situation of the installation and the user's application. Please kindly refer to the below movie for an explanation how to replace the iris parts & attach the lens to the camera.
【Compliant with IEC60068-2-6】
- Vibration frequency of 10-60Hz (amplitude of 0.75mm), 60-500Hz (acceleration of 100m/S2)
- Sweep frequency of 50 cycles
How to replace the iris parts

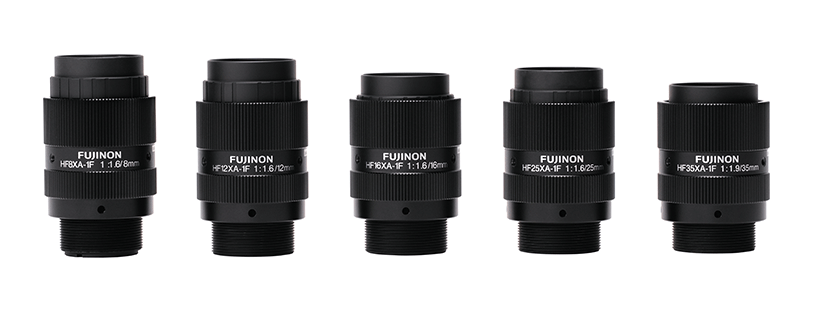

Lineups
Focal length [mm] | 8 |
Iris range (F. no) | F1.6, F4, F8 (Optional) |
Angle of view(2/3") | 58.4°×44.6° |
Working Distance*1[mm] | ∞‐100 |
Operation of focus | FIX |
Operation of iris | FIX |
Filter thread [mm] | M25.5 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 97 |
Sensor size(std.)*2 | 2/3"(3.45μm) |
Sensor size (max.)*3 | 2/3"(3.45μm) |
TV distortion [%] | -1.99 |
Dimension [mm] | Φ34×60.2 |
Focal length [mm] | 12 |
Iris range (F. no) | F1.6, F4, F8 (Optional) |
Angle of view(2/3") | 40.1°×30.3° |
Working Distance*1[mm] | ∞‐100 |
Operation of focus | FIX |
Operation of iris | FIX |
Filter thread [mm] | M25.5 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 99 |
Sensor size(std.)*2 | 2/3"(3.45μm) |
Sensor size (max.)*3 | 1/1.2"(4.5μm) |
TV distortion [%] | -1.26 |
Dimension [mm] | Φ34×58.7 |
Focal length [mm] | 16 |
Iris range (F. no) | F1.6, F4, F8 (Optional) |
Angle of view(2/3") | 31.4°×23.7° |
Working Distance*1[mm] | ∞-100 |
Operation of focus | FIX |
Operation of iris | FIX |
Filter thread [mm] | M25.5 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 94 |
Sensor size(std.)*2 | 2/3"(3.45μm) |
Sensor size (max.)*3 | 1/1.2"(4.5μm) |
TV distortion [%] | -0.60 |
Dimension [mm] | Φ34×54.0 |
Focal length [mm] | 25 |
Iris range (F. no) | F1.6, F4.6, F9.2 (Optional) |
Angle of view(2/3") | 20.0°×15.0° |
Working Distance*1[mm] | ∞-150 |
Operation of focus | FIX |
Operation of iris | FIX |
Filter thread [mm] | M25.5 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 87 |
Sensor size(std.)*2 | 2/3"(3.45μm) |
Sensor size (max.)*3 | 1/1.2"(4.5μm) |
TV distortion [%] | -0.07 |
Dimension [mm] | Φ34×55.4 |
Focal length [mm] | 35 |
Iris range (F. no) | F1.9, F5.2, F10.4 (Optional) |
Angle of view(2/3") | 14.2°×10.7° |
Working Distance*1[mm] | ∞‐300 |
Operation of focus | FIX |
Operation of iris | FIX |
Filter thread [mm] | M25.5 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 75 |
Sensor size(std.)*2 | 2/3"(3.45μm) |
Sensor size (max.)*3 | 1/1.2"(4.5μm) |
TV distortion [%] | 0.10 |
Dimension [mm] | Φ34×50.3 |
