High resolution lenses

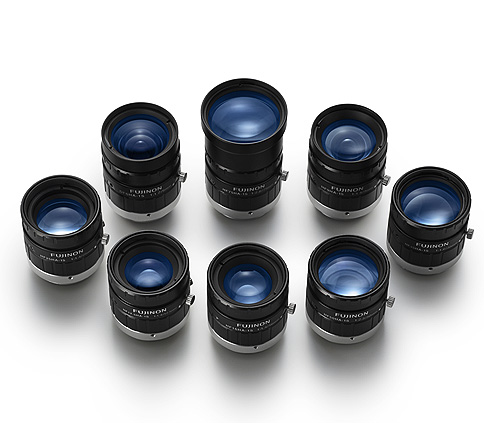

Fujinon HF-HA-1S Series offers a resolution of up to 6.2μm pixel pitch (equivalent to 1.5 megapixel) and is suitable for 2/3" sensors*1.
HF-HA-1S series specification sheet
HF-HA-1S series is the successor series of HF-HA-1B series and offers the same optical performance and the same mechanical dimensions.
Model ()old model name |
Compatible format sizes | Focal length (mm) |
|||||||
4/3 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | ||
DF6HA-1S (DF6HA-1B) |
- | - | - | - | - | - | ● | ● | 6 |
HF9HA-1S (HF9HA-1B) |
- | - | - | - | ● | ● | ● | ● | 9 |
HF12.5HA-1S (HF12.5HA-1B) |
- | - | - | - | ● | ● | ● | ● | 12.5 |
HF16HA-1S (HF16HA-1B) |
- | - | - | - | ● | ● | ● | ● | 16 |
HF25HA-1S (HF25HA-1B) |
- | - | - | - | ● | ● | ● | ● | 25 |
HF35HA-1S (HF35HA-1B) |
- | - | - | - | ● | ● | ● | ● | 35 |
HF50HA-1S (HF50HA-1B) |
- | - | - | - | ● | ● | ● | ● | 50 |
HF75HA-1S (HF75HA-1B) |
- | - | - | - | ● | ● | ● | ● | 75 |
● Compatible sensor size (std.): Ideal size to maximize the target resolution.
Main features
Vibration-resistant and impact-resistant design

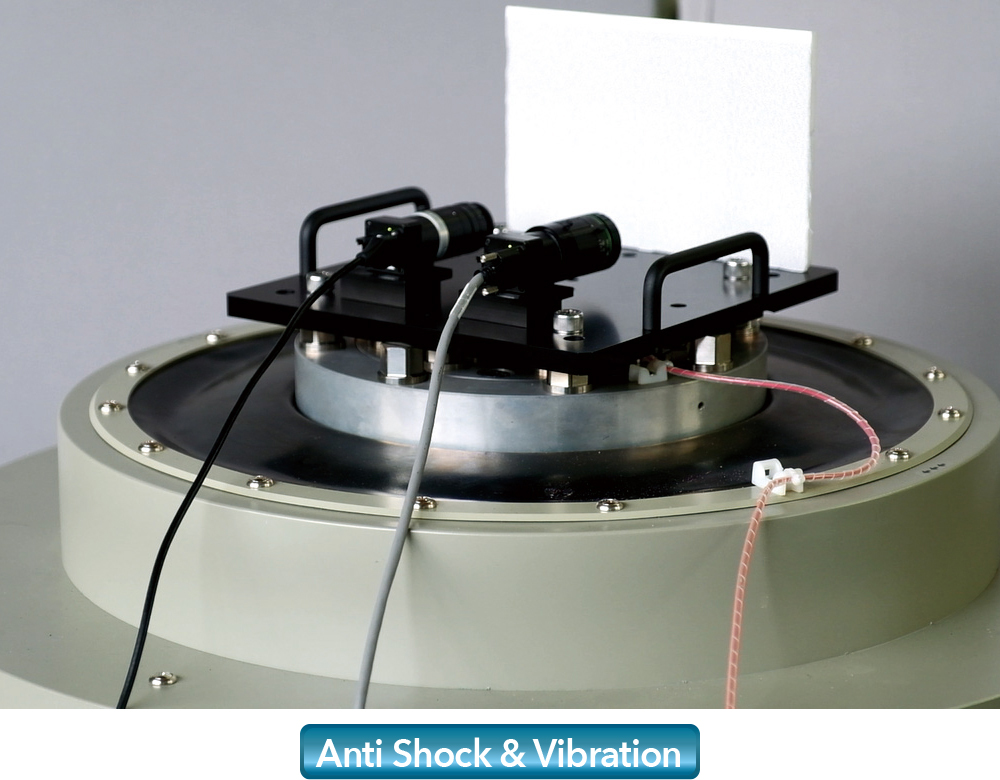

The Fujinon lenses incorporate the original mechanical design *2 of Fujifilms´Anti Shock & Vibration Technology. This makes them robust against shocks and vibrations and applicable for various applications and environments.
[According to JIS C 60068-2-6]
- Vibration frequency 10-60Hz (amplitude 0.75mm) vibration frequency 60-500Hz (acceleration 100m/S2)
- 50Cycle
Extensive lineup of 8 models
The HF-HA-1S Series consists of 8 models with focal lengths from 6mm to 75mm that fit to almost every application.
Compact design
The lenses realise a compact design with an outer diameter of only φ29.5mm.
Low F-number
The low F-number up to F1.2 ensures a clear image even in low light situations.
Lineups
Focal length [mm] | 6 |
Iris range (F. no) | F1.2-F16 |
Angle of view | 57.3°x 43.8° (1/2") |
Working Distance*2 (mm) | ∞‐100 |
Operation of focus | Manual |
Operation of iris | Manual |
Filter thread [mm] | M27 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 50 |
Sensor size (std.)*2 | 1/2" (4.5μm) |
Sensor size (max.)*3 | 1/2" (4.5μm) |
TV distortion [%] | -1.84 |
Dimension [mm] | Φ29.5×36.7 |
Focal length [mm] | 9 |
Iris range (F. no) | F1.4-F16 |
Angle of view | 53.3°x 40.5° (2/3") |
Working Distance*2 (mm) | ∞‐100 |
Operation of focus | Manual |
Operation of iris | Manual |
Filter thread [mm] | M27 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 50 |
Sensor size (std.)*2 | 2/3" (6.2μm) |
Sensor size (max.)*3 | 2/3" (6.2μm) |
TV distortion [%] | -2.00 |
Dimension [mm] | Φ29.5×35 |
Focal length [mm] | 12.5 |
Iris range (F. no) | F1.4-F16 |
Angle of view | 39.2°x 29.4° (2/3") |
Working Distance*2 (mm) | ∞-100 |
Operation of focus | Manual |
Operation of iris | Manual |
Filter thread [mm] | M25.5 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 40 |
Sensor size (std.)*2 | 2/3" (6.2μm) |
Sensor size (max.)*3 | 2/3" (6.2μm) |
TV distortion [%] | -1.95 |
Dimension [mm] | Φ29.5×29.5 |
Focal length [mm] | 16 |
Iris range (F. no) | F1.4-F16 |
Angle of view | 30.5°x 22.9° (2/3") |
Working Distance*2 (mm) | ∞-100 |
Operation of focus | Manual |
Operation of iris | Manual |
Filter thread [mm] | M25.5 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 40 |
Sensor size (std.)*2 | 2/3" (6.2μm) |
Sensor size (max.)*3 | 2/3" (6.2μm) |
TV distortion [%] | -0.87 |
Dimension [mm] | Φ29.5×29.5 |
Focal length [mm] | 25 |
Iris range (F. no) | F1.4-F16 |
Angle of view | 19.4°x 14.6° (2/3") |
Working Distance*2 (mm) | ∞-150 |
Operation of focus | Manual |
Operation of iris | Manual |
Filter thread [mm] | M25.5 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 40 |
Sensor size (std.)*2 | 2/3" (6.2μm) |
Sensor size (max.)*3 | 2/3" (6.2μm) |
TV distortion [%] | -0.19 |
Dimension [mm] | Φ29.5×29.5 |
Focal length [mm] | 35 |
Iris range (F. nao) | F1.6-F22 |
Angle of view | 14.3°x 10.8° (2/3") |
Working Distance*2 (mm) | ∞-250 |
Operation of focus | Manual |
Operation of iris | Manual |
Filter thread [mm] | M25.5 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 40 |
Sensor size (std.)*2 | 2/3" (6.2μm) |
Sensor size (max.)*3 | 2/3" (6.2μm) |
TV distortion [%] | 0.10 |
Dimension [mm] | Φ29.5×29.5 |
Focal length [mm] | 50 |
Iris range (F. no) | F2.3-F22 |
Angle of view | 10.1°x 7.6° (2/3") |
Working Distance*2 (mm) | ∞-500 |
Operation of focus | Manual |
Operation of iris | Manual |
Filter thread [mm] | M25.5 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 45 |
Sensor size (std.)*2 | 2/3" (6.2μm) |
Sensor size (max.)*3 | 2/3" (6.2μm) |
TV distortion [%] | 0.06 |
Dimension [mm] | Φ29.5×29.5 |
Focal length [mm] | 75 |
Iris range (F. no) | F2.8-F22 |
Angle of view | 6.7°x 5.0° (2/3") |
Working Distance*2 (mm) | ∞-1,100 |
Operation of focus | Manual |
Operation of iris | Manual |
Filter thread [mm] | M30.5 x 0.5 |
Mount | C-mount |
Weight (approx.) [g] | 50 |
Sensor size (std.)*2 | 2/3" (6.2μm) |
Sensor size (max.)*3 | 2/3" (6.2μm) |
TV distortion [%] | 0.36 |
Dimension [mm] | Φ31.5×48 |
