Studio/Field Lens System Configuration

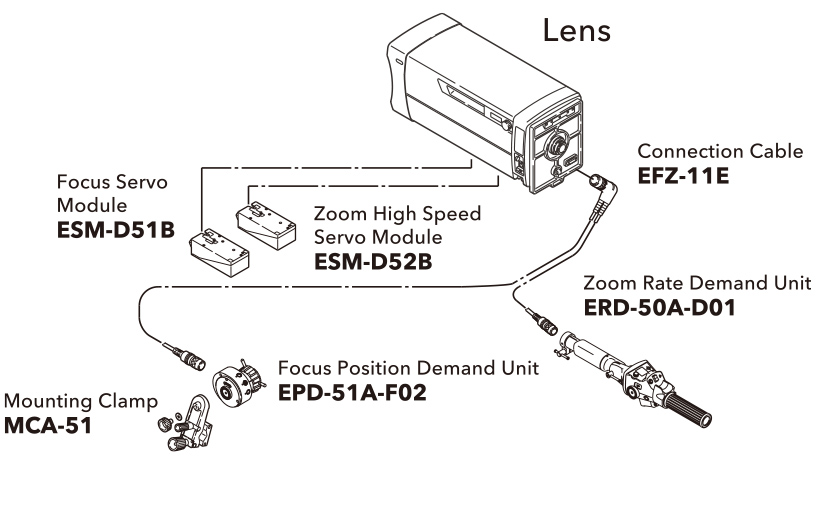

SS-21DB
Servo Focus/ Servo Zoom , DIGIPOWER

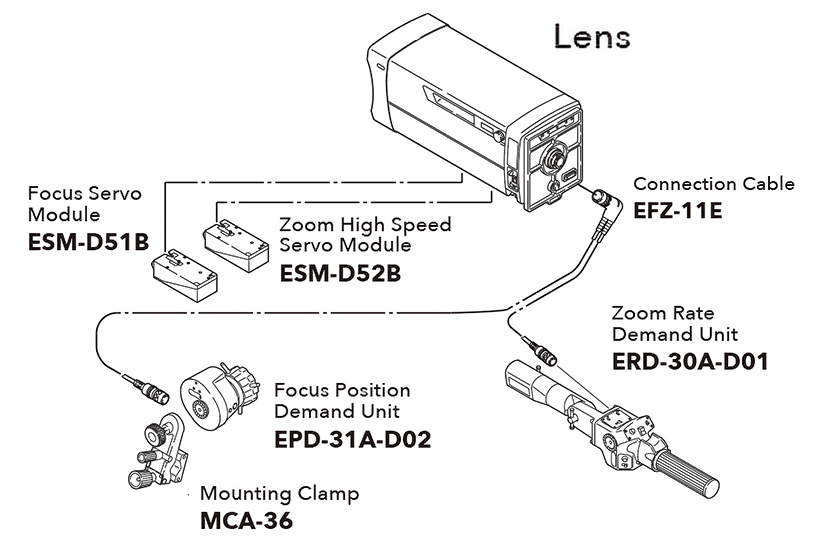

SS-31D
Servo Focus/ Servo Zoom , DIGIPOWER

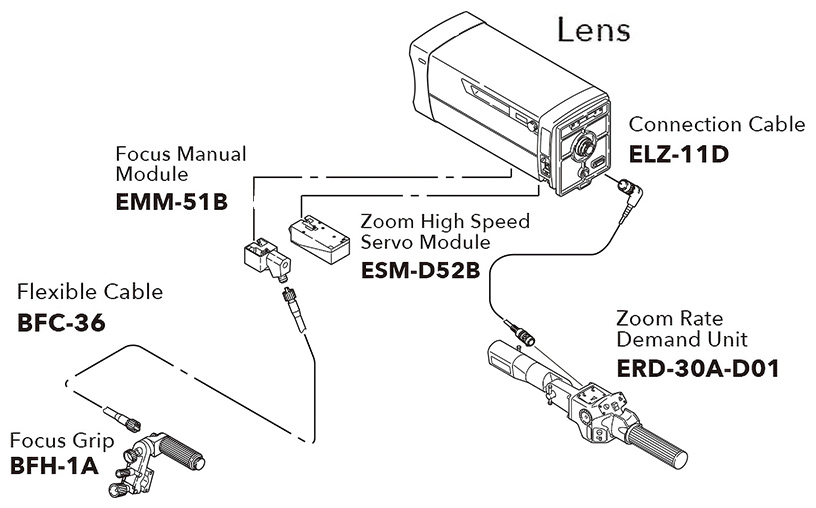

MS-31D
Manual Focus/ Servo Zoom , DIGIPOWER
SS-MB (Minibox Studio Lens)
Servo Focus / Servo Zoom

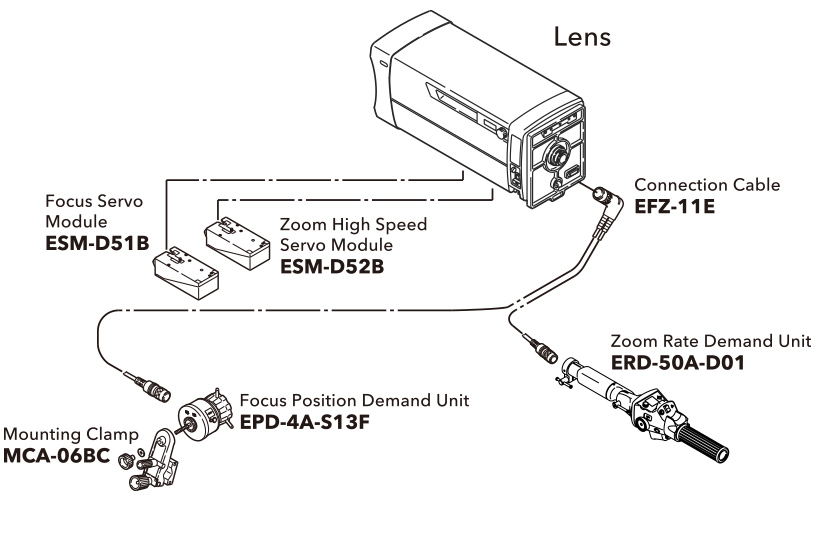

SS-21DB AF
Servo Focus/ Servo Zoom , DIGIPOWER
Control Accessories List
Description | Model Name | ||
---|---|---|---|
Lens Focus/Zoom Drive Unit |
Servo Digital | Zoom High Speed Module | ESM-D52B |
Focus Servo Module | ESM-D51B | ||
Manual | Manual Focus/Zoom Module | EMM-51B | |
Focus | Servo Digital | Focus Position Demand Unit | EPD-31A-D02 |
Mounting Clamp | MCA-36 | ||
Focus Position Demand Unit | EPD-4A-E12A | ||
AF Focus Position Demand Unit | EPD-4A-S13F | ||
Mounting Clamp | MCA-06BC | ||
Servo Focus Grip | EPA-22 | ||
Manual | Manual Focus Grip | BFH-1A | |
Zoom | Servo Digital | Zoom Rate Demand Unit | ERD-30A-D01 |
Zoom Rate Demand Unit | ERD-5A-D01 | ||
Manual | Zoom Manual Handle (For HD) Only | BZH-2A | |
Other | Connection Cable (Y Cable for Full-Servo Kit) |
EFZ-11E | |
Connection Cable (Cable for Semi-Servo Kit) |
ELZ-11D | ||
Flexible Cable | BFC-36 | ||
Range Selector | ERS-51B | ||
Macro Remote Contorller | EA-3A-10AB | ||
OS-TECH Controller | EA-12A-05BD | ||
PC Connection Cable | SA-206D-005 | ||
Lens Supporter (For BTA Mount) | ELH-112A-35A*1 |
Control Accessories for XA22x7BES (Minibox)
Description | Model Name | |
---|---|---|
Focus | Focus Position Demand Unit | EPD-21A-A02 |
Mounting Clamp | MCA-7 | |
Zoom | Zoom Demand (Featured x2 Extender Remote) | ERD-10A-D05A |
Mounting Clamp | MCA-7 | |
Other | Lens Supporter | ALH-117C-02A |
