2/3" Studio / Field Box Lenses

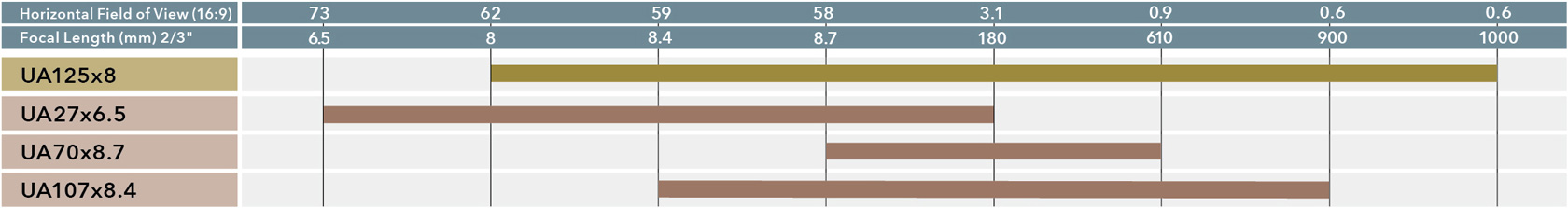

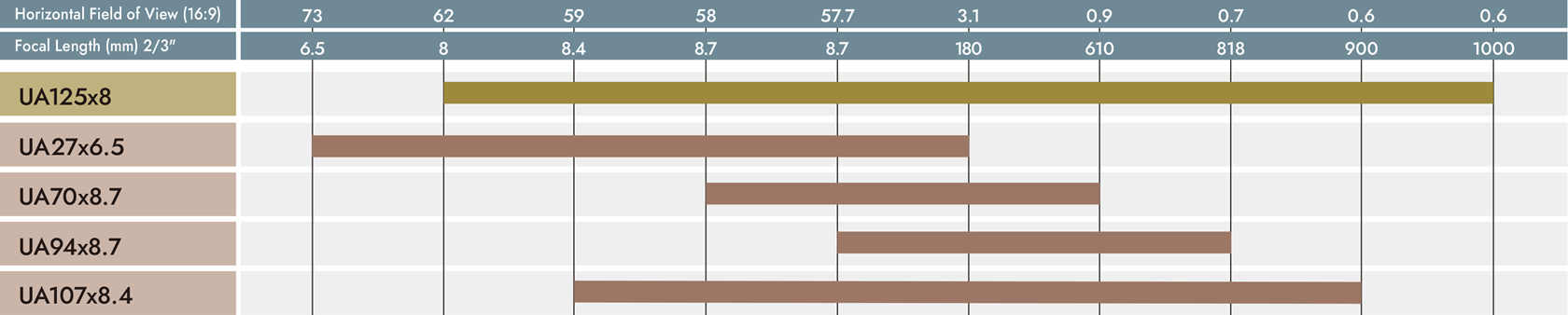

Lineups
4K Plus Premier Series
UA80x9BESM 1.2x EXT
- Advanced optical performance that enables 4K compatibility under any shooting conditions
- Enabling further telephoto shooting by newly developed incorporating a 1.2x extender
- 9-blade round iris enabling natural bokeh in images
- Featuring the popular optical stabilization mechanism
- Equipped with 16bit encoder for virtual device
Specifications
- Model Name
UA80x9BESM 1.2x EXT
- Focal length
[1x]
9-720mm[1.2x]
10.8-864mm[2x]
18-1440mm- Zoom ratio
80x
- Extender
1.2x, 2x
- Maximum relative aperture (F-no.)
1:1.7 (9-350mm) 1:3.5 (720mm)
- Minimum object distance (M.O.D.) from front lens
3.7m
- Object dimensions at M.O.D.
16 : 9 Aspect ratio [1x]
9mm 3501mm x 1968mm
720mm 46mm x 26mm[1.2x]
10.8mm 3009mm x 1692mm
864mm 39mm x 22mm[2x]
18mm 1816mm x 1021mm
1440mm 23mm x 13mm- Angular field of view
16 : 9 Aspect ratio [1x]
9mm 56.1°× 33.3°
720mm 0.8° × 0.4°[1.2x]
10.8mm 47.9° × 28.0°
864mm 0.6° × 0.4°[2x]
18mm 29.8° × 17.0°
1440mm 0.4° × 0.2°- Approx. Size
258 x 264 x 610mm(H×W×L)
- Approx. Mass
23.5kg
UA125×8BESM
- Achieved both highest magnifications*2 125x and 4K optical performance
- Perfect for live sports coverage with the optical 125× zoom
- Unique optical image stabilization mechanism
- Vivid color reproduction and HDR-based rich tonal gradation for superior video production
- Natural bokeh achieved with 9blade diaphragm
- Standard feature of a built-in 16bit encoders
Specifications
- Model Name
UA125×8BESM
- Focal Length
[1x]
8-1000mm[2x]
16-2000mm- Zoom Ratio
125x
- Extender
2 x
- Maximum Relative Aperture (F-No.)
1:1.7(8-340mm) 1:5.0(1000mm)
- Minimum Object Distance (M.O.D.) from Front Lens
3.0m
- Object Dimensions at M.O.D.
16 : 9 Aspect Ratio [1x]
8mm 3198mm × 1799mm
1000mm 27mm × 15mm[2x]
16mm 1677mm × 943mm
2000mm 14mm × 8mm- Angular Field of View
16 : 9 Aspect Ratio [1x]
8mm 61.9° x 37.2°
1000mm 0.55° x 0.31°[2x]
16mm 33.4° x 19.1°
2000mm 0.27°x 0.15°- Approx. Size
258 x 264 x 635mm(H×W×L)
- Approx. Mass
26.6Kg
4K Premier Series
UA27x6.5BESM
- Advanced optical performance with 4K compatibility across the zoom range
- Achieving natural bokeh with the adoption of nine aperture blades
- 27x zoom from 6.5mm at wide angle to 180mm at telephoto for covering a wide variety of scenes
- Maximum aperture ratio of f1.5 to draw out full optical performance with 4K compatibility
- Equipped with 16-bit encoder*1
Specifications
- Model Name
UA27x6.5BESM
- Focal Length
[1x]
6.5-180mm[2x]
13-360mm- Zoom ratio
27x
- Extender
2x
- Maximum relative aperture (F-no.)
1:1.5(6.5-123mm) 1:2.2(180mm)
- Minimum object distance (M.O.D) from the front lens element
0.6m
- Object dimensions at M.O.D.
16 : 9 Aspect ratio [1x]
6.5mm 1063 x 597mm
180mm 38 x 21mm[2x]
13mm 529 x 297mm
360mm 20 x 11mm- Angular field of view
16 : 9 Aspect ratio [1x]
6.5mm 72.8° x 45.0°
180mm 3.1° x 1.7°[2x]
13mm 40.5° x 23.4°
360mm 1.5° x 0.9°- Approx. Size
258mm x 264mm x 536mm (H x W x L)
- Approx. Mass
22.8kg
UA70x8.7BESM
- 70x zoom lens covering the most frequently-used focal lengths from 8.7mm in wide angle to 610mm in telephoto
- Cutting-edge optical design to produce dynamic 4K footage in a diverse range of scenes
- Natural bokeh achieved with nine-blade diaphragm
- Stock-standard 16-bit encoder
Specifications
- Model Name
UA70x8.7BESM
- Focal Length
[1x]
8.7mm-610mm[2x]
17.4mm-1220mm- Zoom ratio
70x
- Extender
2x
- Maximum aperture ratio
1:1.7(8.7-340mm) 1:3.05(610mm)
- Minimum object distance (M.O.D) from the front lens element
3.05m
- Object dimensions at M.O.D.
16 : 9 Aspect ratio [1x]
8.7mm 2,935mm x 1,651mm
610mm 44mm x 25mm[2x]
17.4mm 1,537mm x 865mm
1220mm 23mm x 13mm- Angular field of view
16 : 9 Aspect ratio [1x]
8.7mm 57.7° x 34.4°
610mm 0.9° x 0.5°[2x]
17.4mm 30.8° x 17.6°
1220mm 0.5° x 0.3°- Approx. Size
258 x 264 x 610mm (H x W x L)
- Approx. Mass
23.8kg
UA107x8.4BESM
- The world's first *2 4K-compatible broadcast lens that features the AF function
- Perfect for live sports coverage with the optical 107× zoom
- Unique optical image stabilization mechanism
- Vivid color reproduction and HDR-based rich tonal gradation for superior video production
- Natural bokeh achieved with 9blade diaphragm
- Standard feature of a built-in 16bit encoders
Specifications
- Model Name
UA107x8.4BESM
- Focal Length
[1x]
8.4-900mm[2x]
16.8-1800mm- Zoom ratio
107x
- Extender
2x
- Maximum Relative Aperture (F-No.)
1:1.7 (8.4-340mm) 1:4.5 (900mm)
- Minimum object distance (M.O.D.) from front lens
3.05m
- Object dimensions at M.O.D.
16 : 9 Aspect ratio [1x]
8.4mm 3053mm x 1717mm
900mm 30mm x 17mm[2x]
16.8mm 1594mm x 896mm
1800mm 15mm x 9mm- Angular field of view
16 : 9 Aspect ratio [1x]
8.4mm 59.4° × 35.6°
900mm 0.6° × 0.3°[2x]
16.8mm 31.9° × 18.2°
1800mm 0.3° × 0.2°- Approx. Size
258mm x 264mm x 610mm
- Approx. Mass
23.9kg
UA107x8.4BESM AF
- The world's first *2 4K-compatible broadcast lens that features the AF function
- Perfect for live sports coverage with the optical 107× zoom
- Unique optical image stabilization mechanism
- Vivid color reproduction and HDR-based rich tonal gradation for superior video production
- Natural bokeh achieved with 9blade diaphragm
- Standard feature of a built-in 16bit encoders
Specifications
- Model Name
UA107x8.4BESM AF
- Focal Length
[1x]
8.4-900mm[2x]
16.8-1800mm- Zoom Ratio
107 x
- Extender
2 x
- Maximum Relative Aperture (F-No.)
1:1.7(8.4-340mm) 1:4.5(900mm)
- Minimum Object Distance (M.O.D.) from Front Lens
3.05m
- Object Dimensions at M.O.D. 16 : 9 Aspect Ratio
[1x]
8.4mm 3052mm x 1717mm
900mm 30mm x 17mm[2x]
16.8mm 1594mm x 896mm
1800mm 15mm x 9mm- Angular Field of View 16 : 9 Aspect Ratio
[1x]
8.4mm 59.4°x35.6°
900mm 0.6°x0.3°[2x]
16.8mm 31.9°x 18.2°
1800mm 0.3°x 0.2°- Approx. Size
258 x 264 x 670mm(HxWxL)
- Approx. Mass
26.0kg
