Overview

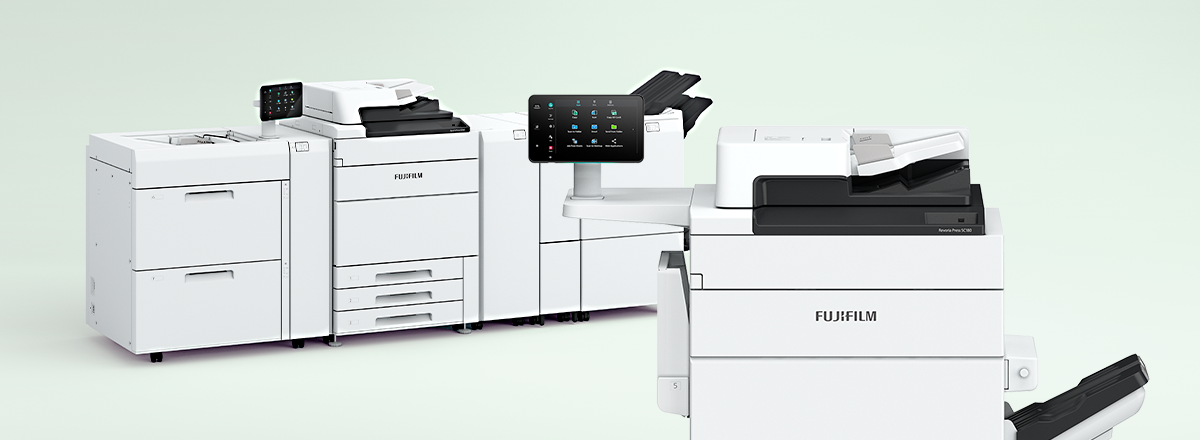

Revoria Press SC180 / SC170 is a production printer that comes in a compact size with full office functions and quality prints various document types in high-resolution with precision. In addition to its attractive finishing features, the printer is also able to handle long paper and heavyweight paper.
Features
- Full Bleed Trim
- Heavyweight (400 gsm)
- Envelope
- Crease
- Postcard
- Ticket
- Business Card
- Long Paper (1,200 mm)
- Note: Samples in this catalog include those that require separate finishing.
Maximum speed of 80 ppm*1 and high productivity on mixed media jobs
Achieve high utilisation rate with the high-performance print engine producing at 80 ppm*1. Print mixed jobs*2 of coated and uncoated paper with minimum downtime along with image quality adjustment optimised when changing paper. Long paper of 330 x 1,200 mm can also be printed at 12 ppm with the Air Suction Feeder.
- *1: For Revoria Press SC180. 70 ppm for Revoria Press SC170. 52 to 220 gsm, A4.
- *2: When same paper size and speed priority mode is selected.

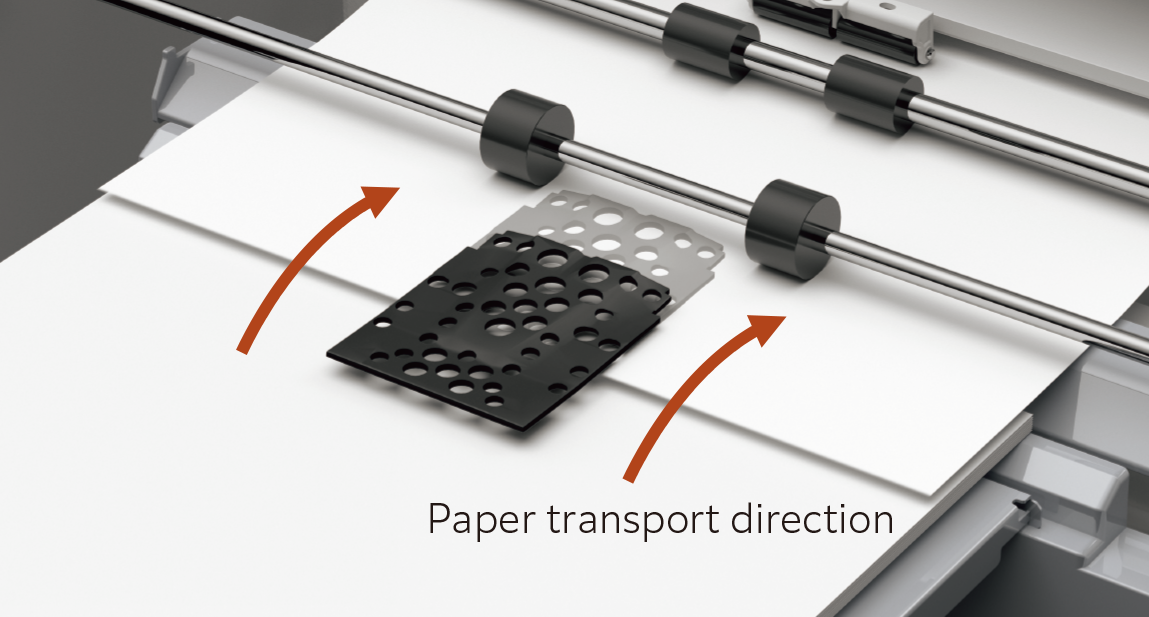

"Air suction feeder" with high media handling capabilities
Each sheet is picked up and delivered securely by the shuttle head with air suction, improving paper feeding performance for low quality, textured and coated media.
- Note: Optional configuration.
Supports Long Paper of Maximum 1,200 mm
From 98 x 148 mm to 330 x 488 mm, the printer supports a wide range of paper sizes. Equipped for all configurations, the Multi Sheet Inserter for Banner Print can also print on long paper (330 x 660 mm) with the options of one-sided printing on long paper (330 x 1,200 mm) and duplex automatic printing on long paper (330 x 864 mm) that open up new applications and business opportunities.
Supported sizes
Handles Various Media Weight from 52 gsm to 400 gsm
Everything from thin folded flyers to thick business cards can be printed. Additionally, not only can it handle heavyweight long papers up to 350 gsm* but the efficiency in media handling and versatile printing are able to meet a wide range of customer requirements.
- *: For one-sided printing of long paper of up to 330 x 660 mm from the optional Air Suction Feeder C1-DSXL or Chained Air Suction Feeder C1-DSXL-L. The supported paper weight differs depending on the feeder and paper length. For details, please check the Brochure.
Wide Variety of Finishing Options
Easily complete jobs from print to finish with automated features of the Revoria Press SC180 / SC170 and its wide variety of finishing options, including A3 Cover Sheet Insertion, Punch, Staple, Staple-free Staple, Saddle Staple, Single Fold, Z Fold Half Sheet/Tri-Fold, Crease, Face Trim, Full Bleed Trim, and Square Back.
Finishing Applications
Cover / Sheet Insertion
Punch
Staple
Saddle Staple
Single Fold
Z Fold Half Sheet
Tri-Fold
Crease*1
Face Trim
Two-Sided Trim
Full Bleed Trim*2
Square Back
- *1: Up to 5 creases are possible for mountain fold and valley fold.
- *2: Full Bleed Trim is performed for Two-Sided Trim and Face Trim.
- Note: Optional configuration.
Maximise productivity with Revoria Flow SC11 / Revoria Flow SC12
Print server maximises the productivity of the printer, rapidly processing high capacity jobs at high resolution of 1,200 x 1,200 dpi, 10 bit while also effortlessly handling variable printing and other high capacity jobs.
"Intermediate Data Format" Suppresses Capacity and Processes Jobs at High Speed
Text and images are automatically determined and managed in object units, with high image quality taking priority and processed at high speed while suppressing the capacity.
High-speed processing is achieved by the "RIP Accelerator Board" hardware.
The printer efficiently performs beyond the server's physical specifications, allowing fast output with high-speed tuning.
- Note: Standard configuration.
"High-Speed Serial Transfer Technology" from Print Server to Printer
The print server processes and transmits data to the printer at 4.25 Gbps/channel* broadband with automated error detection and correction, assuring high reliability.
- *: 2 channels used in 1 colour.
Fiery® SC11 and Fiery SC12C are available as print server choices.
For complete details, please see the Fiery server datasheets.
2,400 dpi High Quality Resolution
The VCSEL-ROS provides 2,400 dpi print resolution while the energy-efficient EA-Eco toner* achieves synergistic effect with toner volume control based on coated/uncoated paper to deliver high-quality images comparable to offset printing.
- *: Emulsion Aggregation-Eco Toner.
SIQA* Saves Time with Streamlined Adjustment
SIQA will calibrate the adjustment values automatically suitable for image-to-media alignment, density uniformity adjustment and image transfer adjustment. This saves operators time and improves utilisation rate by eliminating the need to manually print and measure every job.
- *: Simple Image Quality Adjustment.
Stable Colour Reproduction with 3D Calibration†
Revoria Press SC180 / SC170 provides accurate colour calibration with scanned colorimetric charts and a spectrophotometer*. It also supports stable colour reproduction, has a high-resolution 3D calibration feature and includes feedback to support both single and mixed colours.
- *: Optional i1® Pro 3 from X-Rite, Inc.
Detailed to pixel†
Edge enhancement:
Screen processing on contours reproduces crisp texts and lines by suppressing jaggy, which typically occurs on mid-tone lines and texts.
Adjust Invert Text/Line Weight:
Several levels of toner amount are available for selection to apply to the contour, so a desirable balance can be set for better readability of texts. In these processes, the press mitigates crushing of white texts and fattening of black texts when the texts are small.
Adjust Invert Text / Line Weight OFF
Adjust Invert Text / Line Weight ON
From Monitor, On Print†
Disregard the need to check colour with each print. The Colour Profile Maker for Display lets you check* the colour of the printed material on your monitor with precision.
- *: Some colour gamuts cannot be reproduced.
Match colours with a scan†
Easily replicate colours on documents by scanning an existing printed material, even without knowing printing conditions, allowing colour matching and reprints of a past printed material or one printed by other models.
1,200 x 1,200 dpi x 10-bit RIP Rendering†
RIP resolution of 1,200 x 1,200 dpi and lossless compression reproduces vibrant colours and retains quality while the 10 bit processing delivers smooth gradation.
- †: Unique features on the Revoria Flow SC11 / SC12C. For the features of Fiery® print servers, please see the the Fiery SC11 / Fiery SC12C brochure.
Supported Technologies
- 1. Automatic Document Feeder
-
Single Pass DADF achieves speedy copy and scan. Exerts productivity of 80 ppm for copy, 135 ppm (1 sided) for scan, and 270 ppm for 1 pass 2 sided scanning.
- 2. VCSEL-ROS / EA-Eco toner*
-
The VCSEL-ROS provides 2,400 dpi print resolution while the energy-efficient EA-Eco toner* achieves synergistic effect with toner volume control based on coated/uncoated paper to deliver high-quality images comparable to offset printing.
- *: Emulsion Aggregation-Eco Toner.
- 3. Air Suction Mechanism / Multifeed Detection Device
-
The Air Suction Feeder* is installed with our proprietary air suction mechanism to stabilise various paper for high speed feed.
The Multifeed Detection Device detects multiple feeding and ensures documents are printed accurately.- *: Optional.
- 4. Compact Belt Roll Fuser
-
The compact belt roll fuser provides the uniform heat and pressure needed to fuse images onto a wide variety of paper stocks including heavyweight.
A. Heat Rollers
B. Pressure Rollers
C. Fusing Pad - 5. Built-in Twin Decurler
- This machine corrects paper curl, which can negatively affect stable transfer. The amount of correction can be adjusted to match the size and orientation of any type of paper curl.
- 6. Real Time Curl Correction
- Adjust the amount of curl in printouts by installing the optional Interface Decurler Module D1.
The Revoria Press SC180 / SC170 offer the quality and reliability of production printers, along with the convenience of print, copy, and scan features found on multifunction printers. This makes them an excellent choice for daily business use, as many of the same functions found on multifunction printers are also available on these machines. Plus, operating of these machines is simple and straightforward, regardless of the task at hand.
Supports Various Print Output
You can print office documents directly from your Windows PC without accessing the print server. After a job has been sent to the printer, you can choose private print*1 with authentication, or select the Server- less on-demand printing*1 *2 feature to print it from any machine on the network on-demand.
- *1: Operation in Authentication Mode is required.
- *2: Optional. Server-less on-demand printing is possible for print jobs only without accessing the print server. PCL Driver or Multi-model Print Driver 2 must be used.
Server-less on-demand printing
Copy
Wide Variety of Copy Functions
- Mixed Size Copy
- Add Cover
- Booklet
- Multiple-Up
- Poster
- Repeat Image
You can copy a specific number of the original image repeatedly on one sheet of paper.
Management / Security
Links Up with Remote Authentication Server
The authentication function prevents unauthorized access while also calculating how much each user has used it from the Job History. This information is available on the Revoria Press SC180 / SC170 IC card reader*, enabling efficient management of authentication settings without needing to configure for each printer.
- *: Optional configuration.
Scan
Supports Various File Formats and Processing
You can convert and save scanned data into TIFF, JPEG, DocuWorks document, PDF and attach in emails. There are also options to make text searchable with OCR*, compress data, password protect it, and save it to a USB drive.
- *: Optional configuration

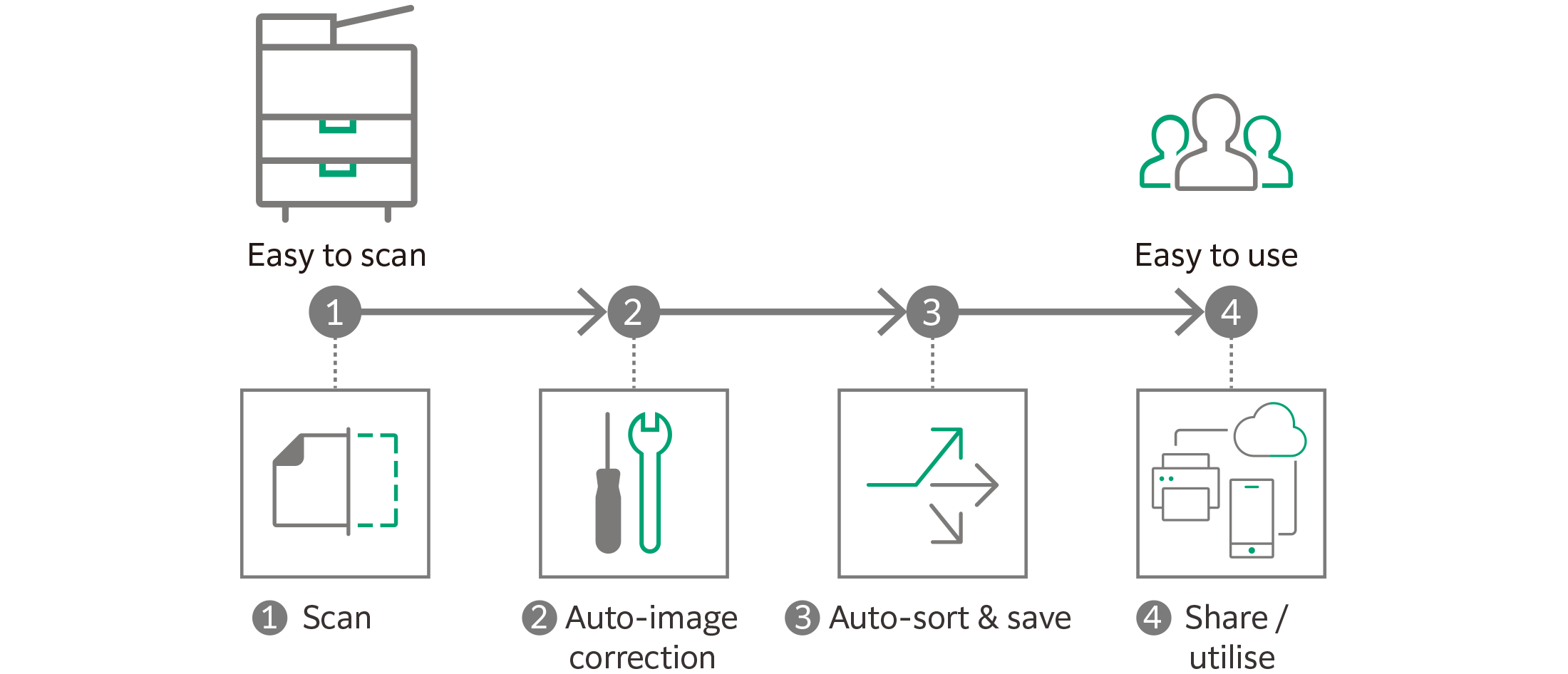

Effortless document management through digitization
With Scan Delivery*, you can easily process and store scanned images using preset buttons for each workflow or document type.
- Automate to set file format, name, OCR*, etc
- Automatically stores scanned and processed documents in the appropriate destination
- Specify particular text in a document as the folder or file name
- 0 and other frequently mis-recognised characters can be read correctly
- *: Optional configuration.
QR codes and bar codes application
If a QR code or barcode is available on the document's header or content body, Scan Delivery will process it accordingly.

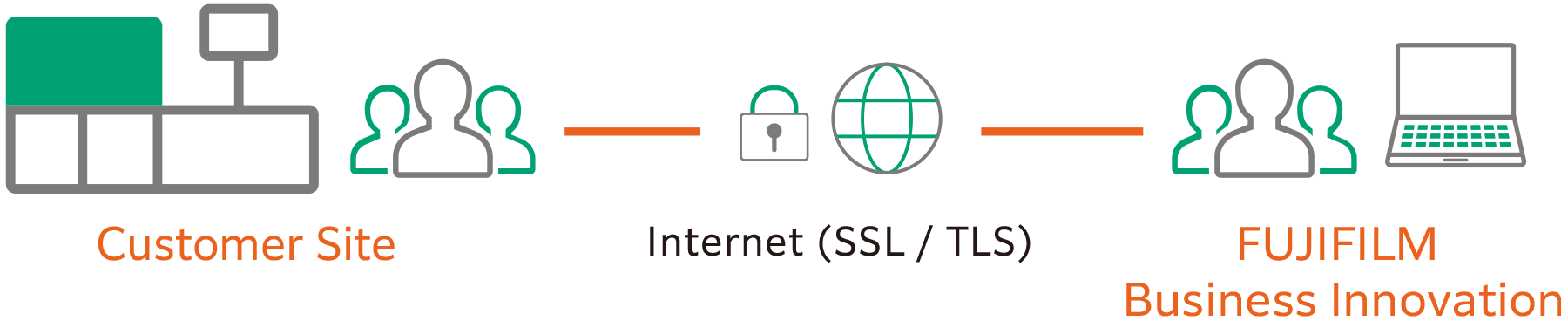

Remote Services* - Reliable Support System
FUJIFILM Business Innovation Remote Services increase machine reliability, uptime, and productivity - making it easier for us to help you keep your business running smoothly. With remote services, we connect our support systems and tools with skilled teams all over the world, so we can provide responsive assistance when you need it most. This enables us to offer proactive solutions through robust underlying knowledge and comprehensive product understanding.
- Reduce downtime by transmitting machine data to detect and prevent problems.
- Keep your printing supplies stocked and automatically delivered, improving utilisation efficiency.
- Automatically report billing meters to save time and improve accuracy.
- *: Availability depends on location.
Feeding Options (Max. 10,300 sheets)*
- *:Main unit + Chained Air Suction Feeder C1-DS-L + Chained Air Suction Feeder C1-DS-R.
One High Capacity Feeder Configuration
High Capacity Feeder B1-S + Multi Sheet Inserter for Banner Print
- Air Assist
- Multifeed Detection
- Cabinet
- 2,000 sheets x 1 tray + 250 sheets
- Maximum A3, 330 x 488 mm
High Capacity Feeder C3-DS + Multi Sheet Inserter for Banner Print
- Air Assist
- Multifeed Detection
- 2,000 sheets x 2 trays + 250 sheets
- Maximum A3, 330 x 488 mm
Air Suction Feeder C1-DS
- Air Suction
- Multifeed Detection
- 2,100 sheets x 2 trays + 250 sheets
- Maximum A3, 330 x 488 mm
Air Suction Feeder C1-DSXL*1 + Banner Unit for Air Suction Feeder C1-DSXL
- 1,200 mm Long Paper*2
- Air Suction
- Multifeed Detection
- 800 sheets + 2,100 sheets + 250 sheets
- Maximum A3, 330 x 1,200 mm (Upper tray)
High Capacity Feeder B1*3
- A4 size
- 2,000 sheets x 1 tray
- Maximum A4
Two High Capacity Feeder Configuration
2nd High Capacity Feeder C1-DS + High Capacity Feeder C3-DS + Multi Sheet Inserter for Banner Print
- Air Assist
- Multifeed Detection
- 2,000 sheets x 2 trays x 2 units + 250 sheets
- Maximum A3, 330 x 488 mm
Chained Air Suction Feeder C1-DS-L + Chained Air Suction Feeder C1-DS-R
- Air Suction
- Multifeed Detection
- 2,100 sheets x 2 trays x 2 units + 250 sheets
- Maximum A3, 330 x 488 mm
Chained Air Suction Feeder C1-DSXL-L*1 + Chained Air Suction Feeder C1-DS-R + Banner Unit for Air Suction Feeder C1-DSXL
- 1,200 mm Long Paper*2
- Air Suction
- Multifeed Detection
- 800 sheets + 2,100 sheets + 2,100 sheets x 2 trays + 250 sheets
- Maximum A3, 330 x 1,200 mm (Upper tray)
- *1: Long paper feeding is possible only at the upper tray.
- *2: During 1 Sided Printing. Up to 330 x 864 mm during Duplex Automatic Print.
- *3: Optional Multi Sheet Inserter for Banner Print is required separately. It is connected to printer directly.
Output Options (Max. 9,000 sheets)*
- *: High Capacity Stacker A1 + Finisher D6.
Offset Catch Tray
- Offset Stack
Long Catch Tray
- Long Paper Stacking
Interface Decurler Module D1
- Real Time Curl Correction

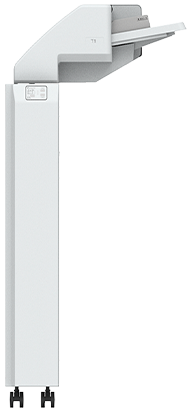

Inserter D1
- Cover / Sheet Insertion
High Capacity Stacker A1
- 5,000-sheet of Offset Stacking
- Stacker Cart
- Long Paper Stacking*1
Crease / Two-sided Trimmer D2
- Two-Sided Trim
- Crease
Folder Unit CD2 / CD3*2
- Z Fold Half Sheet
- Tri-Fold

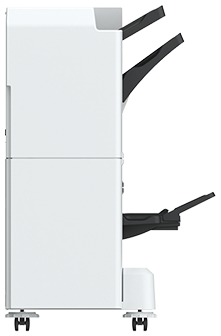

Finisher-C5 / Finisher-C5 with Booklet Maker
- Sort / Stack
- Staple
- Punch
- Saddle Staple / Single Fold*3
- Staple-free Staple
Finisher D6 / Finisher D6 with Booklet Maker
- Sort / Stack
- Staple
- Punch*1
- Saddle Staple / Single Fold*4
- Long Paper Stacking*1
Square Back Fold Trimmer D1
- Face Trim
- Square Back
- Note: For options and trays that can hold long paper output, please check the Brochure.
- *1: Optional.
- *2: The photo shows Folder Unit CD2.
- *3: For Finisher C5 with Booklet Maker.
- *4: For Finisher D6 with Booklet Maker.
Print Servers
A lineup of high-spec, high-performance Revoria Flow SC11 and easy-to-install and expandable Revoria Flow SC12.
Revoria Flow SC11
Revoria Flow SC12
Fiery SC11
Fiery SC12C
For the details, please see the Fiery SC11 and Fiery SC12C datasheets.
