Fujifilm Acuity UV Flatbed Printers
With expertise in the areas of inkjet inks, print systems, and industrial print-heads Fujifilm has built a capability in inkjet technology that is second to none. The Acuity Series of wide format printers brings a range of true flatbed UV print solutions optimized for quality, speed, and production.
The AcuityEY offers wider color options for added versatility.
Now exclusively for franchise businesses, Acuity EY offers some of the advantages of the highly successful and popular Acuity platform, with the same ultra-high print quality. Contact a Fujifilm representative to see if your business qualifies.
The Acuity EY features a CMYK + W color channel configuration. The versatility of printing high quality, 1200 dpi or greater graphics on rigid, flexible and even roll media gives franchisees a new opportunity to expand their print capabilities…and ultimately their business. In addition to the dedicated flatbed, the Acuity EY offers a Roll Media Option.
As with other Acuity models, the roll media option is for printing onto any number of flexible roll materials. This option is incredibly versatile, allowing an operator to prepare rigid material on the flatbed while the roll media option is printing.
The Acuity EY has optimized print performance by utilizing Fujifilm’s uniquely formulated Uvijet inks. These award winning inks incorporate the company’s proprietary ‘Micro-V’ dispersion technology that consistently delivers superb color vibrancy and excellent durability in every print.
Features
- Zoned Vacuum Flatbed – Three dedicated vacuum zones tailored to common media sizes reduce the need for bed masking. Adjustable vacuum strength allows for optimum handling for different materials
- Compact Footprint – Built to fit in the tightest production spaces – the most versatile printer you’ll have on your floor.
- Roll Media Option – A compact roll-to-roll unit extends the versatility of Acuity EY. High quality images can be printed on roll media, which look great even at close viewing distances.
Specifications
- Print Technology
Piezoelectric UV inkjet head using variable dot grayscale imaging technology
- Rigid Media
Maximum media size: 49.2" x 98.4" x 2" (125cm x 250cm x 50.8mm)
Maximum print area: 49.6" x 98.8"(126cm x 251cm)- Roll Media
Roll width: 35.4" - 86.6" (90-220cm)
Maximum print width: 86.2" (219cm)
Maximum roll weight: 110 lbs (50kg)- Ink Type
Fujifilm Uvijet KI or KV UV curable inks
C M Y K packaged in 2 liter pouches, W in 1 liter pouches (KV white 2 liter pouches)- Number of Nozzles
Two 318-nozzle, variable droplet print heads per color, 10 in total
- RIP Options
Caldera GrandRIP | ColorGATE Production Server | Onyx Thrive or Production House
- Dimensions (W) x (D)
Printer only: 160.6" x 78.7" (4.08m x 2.0m)
Printer and Roll media option: 160.6" x 90.1" (4.08m x 2.29m)- Weight
Printer only: 1,043 lbs.(473kg)
Printer and Roll media option: 1,433 lbs. (650kg)
Download Documents
PDF: 970KB
The Acuity Select 20 Series offers wider color options for added versatility.
The new Acuity Select 20 series builds on all the advantages of the highly successful and popular Acuity platform, with the same ultra-high print quality, but adds a number of new features that improve production effiencies and extend the versatility of this platform, allowing it to be used for a much wider range of applications.
Acuity Select 20
The Acuity Select 20 series features up to eight color channels, including options to run white, varnish and now light inks making it an affordable solution for a number of creative print applications. The versatility of printing high quality, 1200 dpi or greater graphics on rigid, flexible and even roll media gives printers new, additional opportunities to expand their print capabilities…and ultimately their business. In addition to the standard CMYK ink set, the Acuity Select offers unprecedented color control with these expansion options:
- White + Varnish – Adding these two ink channels allows for printing on a range on non-white substrates and adds a spot or flood coat varnish effect in a single pass.
- White + White – Adding two white ink channels improve the density of white in a single pass, which is ideal for backlit applications.
- Additional Cyan + Magenta – Adding these two ink channels boosts the overall print speed of the press making it the most productive configuration.
- Light Cyan + Light Magenta – Adding these two ink channels enhances the print quality for fine art quality printing.
As with other Acuity models, the Select 20 series has a roll media option for printing onto any number of flexible roll materials. This option is incredibly versatile, allowing an operator to prepare rigid material on the flat bed while the roll media option is printing.
Finally, the Acuity Select 20 series features common media size vacuum zones, further reducing manual masking.
The Acuity Select 20 series print performance is optimized by Fujifilm’s uniquely formulated Uvijet inks. These incorporate the company’s proprietary ‘Micro-V’ dispersion technology that consistently delivers wide adhesion, superb color vibrancy and excellent durability in every print.
Features
- Zoned Vacuum Flatbed – Six dedicated vacuum zones tailored to common media sizes reduces the need for bed masking. Adjustable vacuum strength optimum handling for different materials.
- NEW Pneumatic Pin Registration System – Five pins, which can be controlled both automatically and manually offer quick precise media set-up.
- Up to 8 Color Channels – Your choice of 4-channel, 6-channel and 8-channel configurations with new added ability to run light inks. Modular upgrade paths are available.
- Compact Footprint – Built to fit in the tightest production spaces – the most versatile printer you’ll have on your floor.
- Roll Media Option – A compact roll-to-roll unit extends the versatility of Acuity Select 20 series printers. High quality images can be printed on roll media, which look great even at close viewing distances.
- NEW Automatic Maintenance System (AMS) Option – Automates primary print head maintenance to take as little as 25 seconds. This reduces the need to use the manual vacuum device to carry out daily maintenance.
Specifications
- Print Technology
Piezoelectric UV inkjet head using variable dot grayscale imaging technology
- Rigid Media
Maximum media size: 49.2" x 98.4" x 2" (125cm x 250cm x 50.8mm)
Maximum print area: 49.6" x 98.8"(126cm x 251cm)- Roll Media
Roll width: 35.4" - 86.6" (90-220cm)
Maximum print width: 86.2" (219cm)
Maximum roll weight: 110 lbs (50kg)- Ink Type
Fujifilm Uvijet KN, KO, or KV UV curable inks
C M Y K lc lm packaged in 2 liter pouches, W and Cl in 1 liter pouches- Number of Nozzles
636 nozzles/color - single color per head
- RIP Options
ColorGATE Production Server or Caldera GrandRIP or Onyx Production House
- Dimensions (W) x (D)
Printer only: 183.5" x 78.7" (4.66m x 2.0m)
Printer and Roll media option: 183.5" x 90.6" (4.66m x 2.3m)- Weight
Printer only: 1,730 lbs.(758kg)
Printer and Roll media option: 2,116 lbs. (960kg)
Download Documents
PDF: 9.2MB
PDF: 374KB
PDF: 345KB
PDF: 680KB
PDF: 713KB
PDF: 10.2MB
The Acuity Select X20 Series larger platen for more substrate versatility.
The Acuity Select X20 Series UV digital press produces high quality output at remarkable speeds and its 8’ x 10’ table handles up to two 4' x 8' boards per print bed for maximum productivity.
Acuity Select X20
The Acuity Select X20 Series offers the highest quality output in a wide format UV digital press with a print area over 8' x 10'. Designed for print applications requiring fine detail and high resolution imaging, the new larger print area allows printing on oversized substrate or run dual 4' x 8' boards. This allows the operator to set up on half of the bed while printing on the other half for maximum throughput. Like the rest of the Acuity Series, the X2 delivers same high quality on both rigid and flexible substrates, unmatched by any other flatbed printer.
The Acuity Select X20 series features up to eight color channels, including options to run white, varnish and now light inks making it an affordable solution for a number of creative print applications. The versatility of printing high quality, 1200 dpi or greater graphics on rigid, flexible and even roll media gives printers new, additional opportunities to expand their print capabilities…and ultimately their business. In addition to the standard CMYK ink set, the Acuity Select offers unprecedented color control with these expansion options:
- White + Varnish – Adding these two ink channels allows for printing on a range on non-white substrates and adds a spot or flood coat varnish effect in a single pass.
- White + White – Adding two white ink channels improve the density of white in a single pass, which is ideal for backlit applications.
- Additional Cyan + Magenta – Adding these two ink channels boosts the overall print speed of the press making it the most productive configuration.
- Light Cyan + Light Magenta – Adding these two ink channels enhances the print quality for fine art quality printing.
As with other Acuity models, the Select X20 series has roll media option for printing onto any number of flexible roll materials. This option is incredibly versatile, allowing an operator to prepare rigid material on the flat bed while the roll media option is printing.
Finally, the Acuity Select X20 series features common media size vacuum zones, further reducing manual masking.
The Acuity Select X20 series print performance is optimized by Fujifilm’s uniquely formulated Uvijet inks. These incorporate the company’s proprietary ‘Micro-V’ dispersion technology that consistently delivers wide adhesion, superb color vibrancy and excellent durability in every print.
Features
- Double Bed – Bed size allows for dual bed 4' x 8' printing for optimal productivity.
- Zoned Vacuum Flatbed – Seven dedicated vacuum zones tailored to common media sizes reduces the need for bed masking. Adjustable vacuum strength optimum handling for different materials.
- NEW Pneumatic pin registration system – The X20 has ten pins which can be controlled both automatically and manually offer quick precise media set-up.
- Up to 8 Color Channels – Your choice of 4-channel, 6-channel and 8-channel configurations with new added ability to run light inks. Modular upgrade paths are available.
- Roll Media Option – A compact roll-to-roll unit extends the versatility of Acuity Select X20 series printers. High quality images can be printed on roll media, which look great even at close viewing distances.
- NEW Automatic Maintenance System (AMS) Option – Automates primary print head maintenance to take as little as 25 seconds. This reduces the need to use the manual vacuum device to carry out daily maintenance.
Specifications
- Print Technology
Piezoelectric UV inkjet head using variable dot grayscale imaging technology
- Rigid Media
Maximum media size: 121.3" x 98.4" x 2" (308cm x 250cm x 50.8mm)
Maximum print area: 121.7" x 98.8"(309cm x 251cm)- Roll Media
Roll width: 35.4" - 86.6" (90-220cm)
Maximum print width: 86.2" (219cm)
Maximum roll weight: 110 lbs (50kg)- Ink Type
Fujifilm Uvijet KN, KO, or KV UV curable inks
C M Y K lc lm packaged in 2 liter pouches, W and Cl in 1 liter pouches- Number of Nozzles
636 nozzles/color - single color per head
- RIP Options
ColorGATE Production Server or Caldera GrandRIP or Onyx Production House
- Dimensions (W) x (D)
Printer only: 183.5" x 150.8" (4.66m x 3.83m)
Printer and Roll media option: 183.5" x 162.2" (4.66m x 4.12m)- Weight
Printer only: 3,583 lbs.(1,625kg)
Printer and Roll media option: 3,968 lbs. (1,800kg)
Download Documents
PDF: 9.2MB
Acuity Select HS 30
The Acuity Select HS 30 series features up to eight color channels, including options to run white, varnish and now light inks making it an affordable solution for a number of print applications. In addition to the standard CMYK ink set, the Acuity Select HS offers unprecedented color control with these expansion options:
- White + Varnish – Adding these two ink channels allows for printing on a range on non-white substrates and adds a spot or flood coat varnish effect in a single pass.g
- White + White – Adding two white ink channels improve the density of white in a single pass, which is ideal for backlit applications.
- NEW Additional Cyan + Magenta – Adding these two ink channels boosts the overall print speed of the press making it the most productive configuration.
- NEW Light Cyan + Light Magenta – Adding these two ink channels enhances the print quality for fine art quality printing.
As with other Acuity models, the Select HS 30 series has a roll media option for printing onto any number of flexible roll materials. This option is incredibly versatile, allowing an operator to prepare rigid material on the flat bed while the roll media option is printing.
Fujifilm’s uniquely formulated Uvijet inks optimize the Acuity Select HS print performance. These incorporate the company’s proprietary ‘Micro-V’ dispersion technology that consistently delivers wide adhesion, superb color vibrancy and excellent durability in every print.
PDF: 374KB
PDF: 345KB
PDF: 680KB
PDF: 713KB
PDF: 10.2MB
The Acuity Select HS digital press produces high quality output at exceptional speeds.
Builds on all the advantages of the popular Acuity platform; including near-photographic image quality, versatility and ease of use. Enhanced by the addition of various features, including optional 6 color printing for even higher print quality, pin registration for accurate media loading, automated maintenance system for hands-free printhead cleaning.
Features
- Zoned Vacuum Flatbed – Six dedicated vacuum zones tailored to common media sizes reduces the need for bed masking. Adjustable vacuum strength optimum handling for different materials.
- NEW Pneumatic Pin Registration System – Five pins, which can be controlled both automatically and manually offer quick precise media set-up
- Up to 8 Color Channels – Your choice of 6-channel or 8-channel configurations with new added ability to run light inks. Modular upgrade paths are available.
- Compact Footprint – Built to fit in the tightest production spaces – the most versatile printer you’ll have on your floor.
- NEW Automatic Maintenance System (AMS) Standard – Automates primary print head maintenance to take as little as 25 seconds. This reduces the need to use the manual vacuum device to carry out daily maintenance
- NEW Lamp System – 15% less heat at the media surface expands delicate substrate capabilities. Top opening housing makes bulb changes more accessible.
- Roll Media Option – A compact roll-to-roll unit extends the versatility of Acuity Select HS 30 series printers. High quality images can be printed on roll media, which look great even at close viewing distances.
Specifications
- Operating Conditions
Print Technology
Proprietary Piezoelectric UV inkjet head using variable-dot grayscale Imaging technology; two print heads per colorResolution
Variable droplet sizes from 6 to 30 picolitersRigid Media
Maximum media size: 49.2" x 98.4" x 2"(125cm x 250cm x 50.8mm)
Maximum print area: 49.6" x 98.4"(126cm x 251cm)Roll Media
Roll width: 35,4" to 86.6" wide (90-220cm)
Maximum print width: 86.2" (219cm)
Maximum roll weight: 110 lbs (50kg)Ink Type
Fujifilm Uvijet KN, KO, or KV UV curable inks
C M Y K lc lm packaged in 2 liter pouches, W and Cl in 1 liter pouchesNumber of nozzles
636 nozzles/ print head – two heads per color channelRIP options
ColorGATE Production Server or Caldera GrandRIP or Onyx Production HouseDimensions (W) x (D)
Printer only: 196.9” x 78.7” (5.0 m x 2.0 m)
Printer and Roll media option: 196.9” x 90.6” (5.0 m x 2.3 m )Weight
Printer only: 1,819 lbs. (825kg)
Printer & Roll media option: 2,205 lbs. (1000kg)
Print Modes and Speeds
Flatbed Speed* | RMO Speed* | |
Express | 657 | 542 |
Production | 433 | 328 |
Quality | 302 | 226 |
Fine Art | 245 | 184 |
Quality Density | 171 | 128 |
Four Color + White | 159 | 119 |
Four Color + White (2X) | 103 | 77 |
Download Documents
PDF: 9.2MB
PDF: 717KB
PDF: 737KB
PDF: 374KB
PDF: 345KB
PDF: 10.2MB
The Acuity Select HS X2 digital press, superior images at exceptional speeds with an 8’ x 10’ table for maximum productivity.
Builds on all the advantages of the popular Acuity platform; including near-photographic image quality, versatility and ease of use. Enhanced by the addition of various features, including optional 6 color printing for even higher print quality, pin registration for accurate media loading, automated maintenance system for hands-free printhead cleaning.
Acuity Select HS X30
The Acuity Select HS X30 series features up to eight color channels, including options to run white, varnish and now light inks making it an affordable solution for a number of print applications. In addition to the standard CMYK ink set, the Acuity Select HS offers unprecedented color control with these expansion options:
- White + Varnish – Adding these two ink channels allows for printing on a range on non-white substrates and adds a spot or flood coat varnish effect in a single pass.g
- White + White – Adding two white ink channels improve the density of white in a single pass, which is ideal for backlit applications.
- NEW Additional Cyan + Magenta – Adding these two ink channels boosts the overall print speed of the press making it the most productive configuration.
- NEW Light Cyan + Light Magenta – Adding these two ink channels enhances the print quality for fine art quality printing.
As with other Acuity models, the Select HS 30 series has a roll media option for printing onto any number of flexible roll materials. This option is incredibly versatile, allowing an operator to prepare rigid material on the flat bed while the roll media option is printing.
Fujifilm’s uniquely formulated Uvijet inks optimize the Acuity Select HS print performance. These incorporate the company’s proprietary ‘Micro-V’ dispersion technology that consistently delivers wide adhesion, superb color vibrancy and excellent durability in every print.
Features
- X30 Production Model Option – Expand the standard bed from 98.4″ x 49.2″ (2.5 m x 1.25 m) to double bed size of 98.4″ x 121.3″ (2.5 m x 3.2 m) for printing larger images. Includes dual registration points, so you can set up in one zone while printing on the other zone.
- Zoned Vacuum Flatbed –The X30 has seven dedicated vacuum zones tailored to common media sizes reduces the need for bed masking. Adjustable vacuum strength optimum handling for different materials.
- NEW Pneumatic Pin Registration System – Five pins, which can be controlled both automatically and manually offer quick precise media set-up
- Up to 8 Color Channels – Your choice of 6-channel or 8-channel configurations with new added ability to run light inks. Modular upgrade paths are available.
- NEW Automatic Maintenance System (AMS) Standard – Automates primary print head maintenance to take as little as 25 seconds. This reduces the need to use the manual vacuum device to carry out daily maintenance
- NEW Lamp System – 15% less heat at the media surface expands delicate substrate capabilities. Top opening housing makes bulb changes more accessible.
- Roll Media Option – A compact roll-to-roll unit extends the versatility of Acuity Select HS 30 series printers. High quality images can be printed on roll media, which look great even at close viewing distances.
Specifications
- Operating Conditions
- Print Technology
- Proprietary Piezoelectric UV inkjet head using variable-dot grayscale Imaging technology; two print heads per color
- Resolution
- Variable droplet sizes from 6 to 30 picoliters
- Rigid Media
- Maximum media size: 121.3" x 98.4" x 2"(308cm x 250cm x 50.8mm)
- Maximum print area: 121.7" x 98.4"(309cm x 251cm)
- Roll Media
- Roll width: 35,4" to 86.6" wide (90-220cm)
- Maximum print width: 86.2" (219cm)
- Maximum roll weight: 110 lbs (50kg)
- Ink Type
- Fujifilm Uvijet KN, KO, or KV UV curable inks
- C M Y K lc lm packaged in 2 liter pouches, W and Cl in 1 liter pouches
- Number of nozzles
- 636 nozzles/ print head – two heads per color channel
- RIP options
- ColorGATE Production Server or Caldera GrandRIP or Onyx Production House
- Dimensions (W) x (D)
- Printer only: 196.9” x 150.8” (5.0m x 3.83m)
- Printer and Roll media option: 196.9" x 162.2" (5.0m x 4.12m)
- Weight
- Printer only: 3,792 lbs. (1,720kg)
- Printer & Roll media option: 4,178 lbs. (1,895kg)
Prints Modes and Speeds
Flatbed Speed* | RMO Speed* | |
Express | 709 | 542 |
Production | 462 | 328 |
Quality | 325 | 225 |
Fine Art | 258 | 184 |
Quality Density | 179 | 126 |
Four Color + White | 160 | 113 |
Four Color + White (2x) | 108 | 74 |
Download Documents
PDF: 9.2MB
PDF: 717KB
PDF: 737KB
PDF: 374KB
PDF: 345KB
PDF: 10.2MB
The Acuity line’s most productive UV flatbed printer.
The Acuity F inkjet printer is capable of producing a wide range of print applications from close view through to display print at print speeds of up to 1,668 ft2 per hour. The addition of the white ink option further extends the application and media range to include clear and colored substrates.
Acuity F
- 6 or 7 channels offering white ink option
- UV curing system for high speed printing
- Greyscale print heads for ultimate image quality
- Large 98.4" x 120" bed size
- 7 vacuum zones
- Registration pins
- Automated head cleaning
Features
As the latest addition to Fujifilm's Acuity platform, the device produces exceptional print quality at speeds of up to 1,668 ft2/hr, and is available as a 6-channel or 7-channel model. The Acuity F series maintains all the advantages of the popular and successful Acuity platform, including near-photographic image quality, versatility and ease of use, but has been optimized for the efficient and high speed production of rigid media applications.
- 6 or 7 color channels
The F66 model has 36 print heads (6 per color) and uses cyan, magenta, yellow, black, light cyan and light magenta; the F67 model has 42 print heads (6 per color) with white added. - Uvijet UV inkjet inks
Using Fujifilm's unique Micro-V ultrafine dispersion technology to maximize pigment loading, the Uvijet range of UV curing inks delivers strong vibrant, lightfast colors with greater image quality and superior color gamut. - High image quality
Greyscale print heads in a staggered configuration combined with full bed mapping deliver high image quality at high print speeds. - Broad range of media

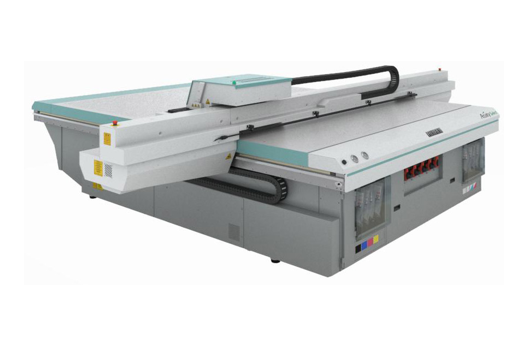

With UV inkjet technology, Acuity F can print on a broad range of rigid and flexible materials up to 2" (50.8mm thick), including most display boards and plastics, and the white ink option provides an opportunity to print high value materials like wood, metal, clear and colored products. - Dedicated flatbed design
The Series' true flatbed architecture supports the broadest range of rigid media, including irregularly shaped, heavy, smooth or pre-cut materials. It also allows for the production of multi-layered applications, double-sided or large prints over multiple boards in perfect register, and edge-to-edge printing. - Automatic head cleaning
The Acuity F is equipped with an Automated Maintenance System (AMS) - a new feature in the Acuity range. The AMS cleans the device's print heads in less than 25 seconds per color, ensuring that the nozzles are clean and ready to print at any time, maximizing productivity. - Zoned vacuum table with registration pins
7 dedicated vacuum zones, tailored to common media sizes reduces the amount of bed masking required. The strength of the vacuum is adjustable to provide optimum handling for different materials. Designed for flexible productivity and, available for the first time on an Acuity platform, the device's pneumatic registration pins mean minimal operator involvement. These allow for quick loading in perfect register and, combined with the high-flow vacuum system, can hold down any rigid media perfectly, including uneven substrates.
Specifications
- Operating Conditions
Print Technology
Proprietary Piezoelectric UV inkjet head using variable-dot grayscale Imaging technology; 6 printheads per channelPrint Format – Rigid
98.4" (W) x 120" (L) (edge to edge printing)Max. Substrate Thickness
2" (50.8 mm)- Maximum weight: 77 lbs. (35kg)Print area (max)
120.4 x 98.8" (3.06 x 2.51m)Ink technology
Fujifilm Uvijet WH, WI, or WF series UV curable inksInks
Cyan, Magenta, Yellow, Black, Light cyan, Light magenta - 2 liter pouch; White - 2 liter pouchMedia types
Rigid PVC, PETG, acrylic, foam boardResolution
Variable droplet sizes from 6 to 42 picolitersOperator Console
Intuitive user interface via user positioned monitor and mouse standRIP
ColorGATE Production Server (Fujifilm Edition)
ONYX ProductionHouse Workflow Software, Version 9 or greaterFujifilm Uvijet UV Inks
UV curable inks (CMYKLcLm + W) Packaged in 2 liter sealed bagsPhysical Dimensions
225 (W) x 190 (L)x 58" (H) – Weight 4,001 lbs. (1,815 kg)Power
3 phase, 200-240 VAC 50/60 Hz 30A (delta)Connectivity
10/100/1000 Base TEnvironmental Temperature
64˚F to 86˚F (18˚C to 30˚C)Compressed Air Requirement
Pressure max 120 psi / 867 kPa
Peak flow 12 ft3/m at 100 psi or 340 ltr/m at 690 kPa
Print Modes and Speeds
F66 & F67 ft2/hr | F66 & F67 m2/hr | 4’X8’ boards/hr | |
Express | 1,668 | 155 | 33 |
Production | 1,076 | 100 | 24 |
Quality | 775 | 72 | 18 |
Quality Smooth | 431 | 40 | 10 |
Quality Density | 431 | 40 | 10 |
White 2 Layer | 388 | 36 | 10 |
White 3 Layer | 258 | 24 | 7 |
Download Documents
PDF: 718KB
PDF: 721KB
PDF: 394KB
PDF: 370KB
PDF: 390KB
PDF: 10.2MB
