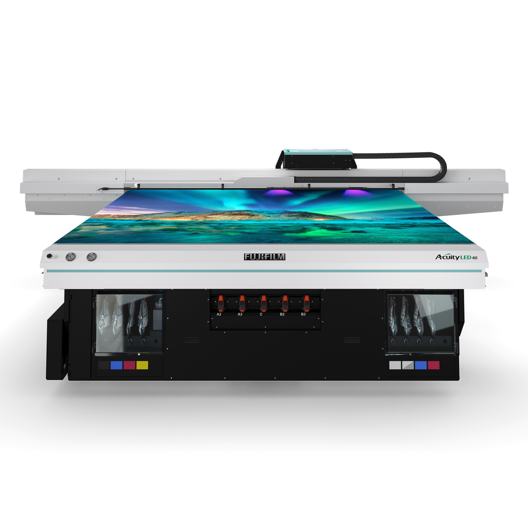

Acuity LED Printers

With the option of flatbed, roll-to-roll or hybrid printing, the Acuity LED series can help print providers advance their wide format business.

The Acuity LED 1600R has been designed to build on the success of the market leading Acuity LED 1600 printers. With nearly 1000 installations globally the Acuity LED 1600 is the most cost effective platform within its segment.

The Acuity LED 1600R is a reliable 1.6m roll-fed production machine, built to deliver exceptional print results up to 355 ft2/hr in the most environmentally friendly way, with low-energy LED UV curing technology. LED lamps consume far less energy than conventional UV and last up to ten times longer, having a positive impact on the total cost of ownership. And with no drying time required, prints come off the printer ready to be finished and shipped.

Start off with a basic CMYK color configuration. Upgrade to lights to achieve smoother tonal images and add a white ink channel for printing on clear of colored materials. This flexibility meant the Acuity LED 1600R can grow with your business and makes it a perfect entry-level machine.

Features

  • Best-in-class productivity of 355 ft2/hr
  • Fujifilm Dimatix Q-Class industrial printheads
  • Upgrade path with various color configurations
  • Fujifilm Uvijet RL ink set with GREENGUARD certification
  • Low energy consumption, long-life LED lamps (up to 10,000 hours)
  • Micro-V ultrafine dispersion technology produces inks with high pigmentation for strong, vibrant images and wider color gamut
  • Fast drying ink allows for immediate processing
  • No VOC’s and solvent free

Specifications

Print Technology
LED UV Inkjet

Maximum Print Width
63.3" (W) (1,610mm)

Maximum Media Width
63.7" (W) (1,620mm)

Maximum Substrate Thickness
Roll 0.04" (48mm)

Maximum Print Speed
355 sq ft / hour (33 sq m / hour)

Print Head
FUJIFILM Dimatix Q-Class Printheads

Fujifilm Uvijet UV Inks
Fujifilm Uvijet RL LED UV Curable Ink
7 colors (cyan, magenta, yellow, black, light cyan, light magenta, white)
Standard Configuration: CMYK
Field Upgradeable to: CMYKLcLmW

Physical Dimensions
126" (W) x 32" (D) x 57" (H)

Weight
Printer 661 lbs (300kg)

Power
AC 100-120V, 200-240V, 50/60Hz

Network
USB 2.0

Note *Product specifications are subject to change without notice.

Download Documents

The Acuity LED 1600 II is a high-performance wide-format inkjet printer featuring a proprietary-design LED light source, high precision, high-speed, printheads, and optimized fast curing UV LED ink.

The Acuity LED 1600 II is designed for the printer new to wide format inkjet printing or for users who wish to save costs by printing with the newest LED UV curing technology. The Acuity LED 1600 II is ideal for a wide variety of promotional tools, from wide format posters to window displays, back lit signs, point of purchase materials, and product packaging.

Fujifilm's proprietary Fast Accurate Marking technology enables best-in-class productivity of 355 sq ft/hour to address customers' needs for high quality and shorter delivery times. An innovative hybrid design allows for printing on wide format roll media, rigid board and sheet substrates up to 10mm (.375") thick and 63.3” wide. The print tables have a unique folding compact design that takes up minimal storage space.

Features

  • Unique hybrid design allows easy switchover from roll media to rigid boards and back again
  • Best-in-class productivity of 355 ft2/hr
  • Eight inks standard, CMYK, light cyan, light magenta, white and clear
  • Single pass printing of two or three layers of color, white, and clear inks simultaneously
  • High-precision, high-speed FUJIFILM Dimatix printheads
  • VersaDrop jetting technology precisely adjusts ink droplet size according to the image, ensuring smooth tonal gradations
  • Handles substrates up to 10mm (.375") thick, and 63.3" wide on rigid material and 63" wide on flexible media
  • Fast-drying ink allows for immediate processing

Specifications

Print Technology
LED UV Inkjet

Maximum Print Width
63.3" (W) (1,610mm)

Maximum Media Width
63.7" (W) (1,620mm)

Maximum Substrate Thickness
Roll 0.04" (48mm)
Rigid substrates up to .375" (10mm)

Printing tables included for printing on rigid substrates

Maximum Print Speed
355 sq ft / hour (33 sq m / hour)

Print Head
FUJIFILM Dimatix Q-Class Printheads

Fujifilm Uvijet UV Inks
Fujifilm Uvijet LL LED UV Curable Ink
8 colors (cyan, magenta, yellow, black, light cyan, light magenta, white, clear)

Physical Dimensions
128" (W) x 31" (D) x 61" (H)

Weight
Printer 617 lbs
Tables 221 lbs

Power
AC 100-120V, 200-240V, 50/60Hz

Network
USB 2.0

Note *Product specifications are subject to change without notice.

Print Modes and Speeds

Mode Resolution DPI

Speeds
sq ft / hr

Speeds
sp m / hr
Express
6 pass bi-di
600x300 355 33
Production
10 pass bi-di
600x500 215 20
Standard
16 pass bi-di
900x800 140 13
Quality
24 pass bi-di
1200x1200 77 7.2
High Quality
48 pass bi-di
1200x1200 45 4.2



Note *Flatbed Speed* FMO Speed* Production 132 104 Quality 91 72 Fine Art 69 54 *Speeds are stated in square feet per hour.

Video

Acuity LED II Intro 1

Acuity LED II Technology 2

Acuity LED II Performance 3

Acuity LED II High Value
Applications 4

Acuity LED II Environmental
Commitment 5

Download Documents

The Acuity LED 3200R offers maximum productivity in its CMYK configuration plus minimal energy usage, which is as much as half of what other devices use. You can double efficiency by tapping into the twin roll printing function with two 60” (1.52 m) media rolls. The Acuity LED 3200R saves time, media & ink on backlit applications using a high density mode and LED lightbox for proofing while printing.

The Acuity LED 3200R’s robust media capability allows a single roll up to 220 lbs. (100 kgs) making it Fujifilm’s preferred custom wallpaper device. Overnight operation can be worry free with the convenient 3-liter ink tank bulk system and the Nozzle Check Unit in conjunction with the Nozzle Recovery system assures defect free prints.

Anticipate the Fujifilm Acuity variable drop high quality prints you’ve come to know and love with ink drops of 7 to 36 picoliter. Plus the added benefit of a Masking Advanced Pass System, which reduces banding by dispersing ink drops between passes.

Features

  • 126” (3.2m) print width
  • Up to 1,184 ft2/hr (110m2/hr) productivity
  • 7 picoliter piezo inkjet printheads
  • Fujifilm Uvijet LF inks
  • CMYK ink configuration, with other options available
  • LED UV curing system (5000+ hours)
  • Backlit print proofing panel
  • Print quality management system
  • Twin roll printing function
  • Productivity kit options

Specifications

Print Technology
LED UV Inkjet

Maximum Print Width
126" (W) (3200mm)

Maximum Media Width
128" (W) (3250mm)

Maximum Substrate Thickness
0.039" (1mm)

Maximum Print Speed
1184 sq ft / hour (110 sq m / hour)

Print Head
4 heads with four channels each

Fujifilm Uvijet UV Inks
Fujifilm Uvijet LF LED UV Curable Ink

Physical Dimensions
224.5" (W) x 47.5" (D) x 67" (H)
Weight
2000 lbs (910 kg)
Power
AC 200-240V +/- 10%, 50/60Hz, 18A or less
Interface
1000Base-T or USB 2.0

Note *Product specifications are subject to change without notice.

Print Modes and Speeds

Mode Resolution
DPI
Speeds
sq ft / hr
Speeds
sq m / hr
Express
2 pass bi-di
600x300 1,184 110
Production
4 pass bi-di
600x300 646 60
Standard 1
6 pass bi-di
900x300 431 40
Standard 2
8 pass bi-di
(normal)
600x600 323 30

Standard 2
8 pass bi-di
(high)

600x600 323 30
Quality
24 pass bi-di
900x600 215 20
High Quality
48 pass bi-di
1200x900 118 11



Video

Acuity LED 3200R 1
