Flexible Solution with System Style Options (Floor / Ceiling)

Coherent Solution for X-ray Room with FUJIFILM modalities and image processing

Selectable Two Style

FDR Smart X is Fujifilm's newly developed X-ray system, providing multi-function, high-quality, cost-effective X-ray solutions. The Smart X offers ceiling suspended X-ray tube configurations as well as a floor mounted X-ray tube option for use with the upright stand and table, providing flexible solutions for your imaging department. Compatible with Fujifilm's latest D-EVO II series DR panels with their advanced features and high image quality. Also CR cassette and F/S cassette are available for FDR Smart X.

Compatible and Optimal X-ray Solution

Ceiling Suspended Tube Stand

The Ceiling mounted tube provides tracking with the upright stand and table detectors improving workflow, throughput and efficiency

[photo] Floor mounted tube option of the FDR SMart X X-ray system

Floor Mounted Tube Stand

The Floor mounted tube option, provides flexibility to install in limited space, maximizing the imaging systems available in the department.

Multi function stand and table supporting efficient workflow

Wall Bucky Stand Automatic Tilting

Automatic and manual tilting of the upright bucky stand is available^*1. Providing an improved workflow for the radiographers and an improved experience to those patients in wheelchairs.

*1 Different stand is lined-up for each

[photo] Control Panel with 2 small digital screens and a remote control on the right

Control Panel of Automatic Tilting Wall Stand

The ability to store preset positions and move the wall stand automatically to those positions provides a quick and efficient workflow.

Removable Grid

Removable grids in both the table and upright stand, allow flexible working (such as Pediatrics).

Dual Reference Rotation

Not only top reference, but also center rotation can be selected when using 14" x 17"DR panels. This provides flexible solutions, enabling exposure of areas other than the chest without taking out the panel and insert again in rotated direction or using larger panel.

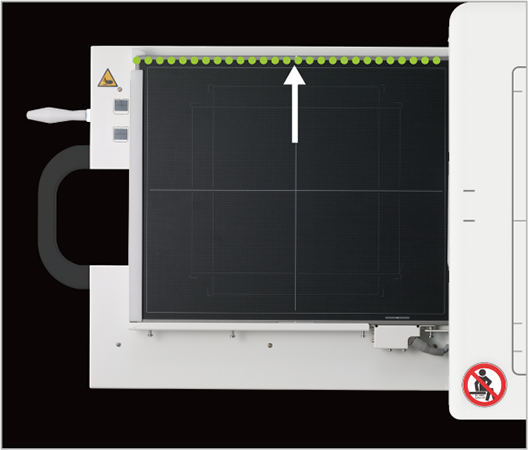

[photo] FDR Smart X DR Panel with an up arrow in white touching the green dotted line at top side of the panel

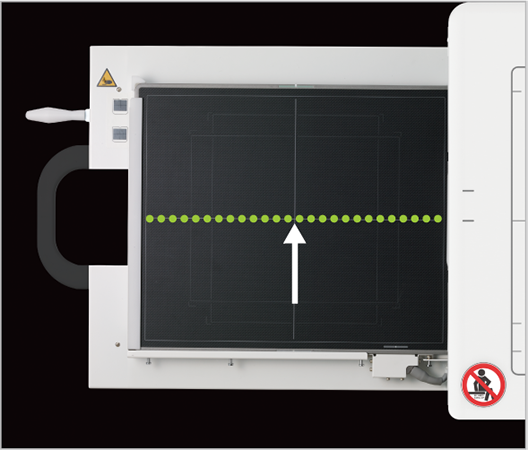

[photo] FDR Smart X DR Panel with an up white arrow touching the green dotted line in the center of the panel

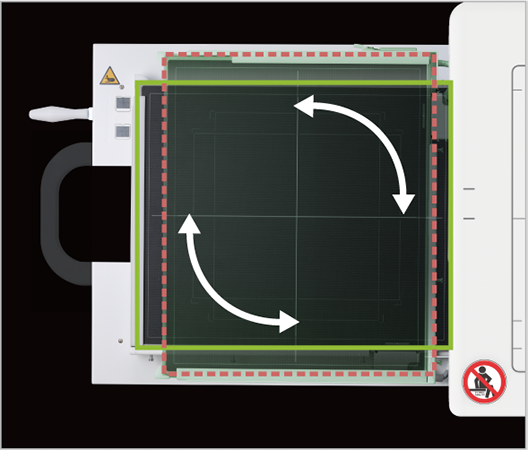

[photo] FDR Smart X DR Panel with 2 sided curved arrows at the diagonal ends of the panel with a red square border

Automatic Tracking

Tube head and bucky move synchronized with each other supporting positioning for exposure.

Motorized Vertical
Synchronization with wall stand

Motorized Vertical
Synchronization with table

[photo] Table bucky tracks after horizontal movement of the tube head with 2 left and right arrows beside the manual operation and the automatic tracking text

The table bucky tracks after the horizontal movement of the tube head (same as floor mounted tube head)

[photo] Table bucky tracks after rotating motion of the tube head with one 2 sided curved arrow next to the Manual Operation text in green and a left and right arrows on the automatic tracking text in red

The table bucky tracks after the rotating motion of the tube head (same as floor mounted tube head)

Elevating Patient Table

A motorized height adjustable floating top table with a weight limit of 300 kg. Synchronisation (Tracking) of the tube with both upright and table detectors. Available with ceiling and floor mounted systems.

[photo] Side by Side close-up view instructional on where to plug the SE cable + Connector alreary built in the tray of the FDR Smart X

Automatic detector connection

Connector built into the drawer; Therefore, just by coupling the detector in the drawer, the detector automatically connects for power supply and data transfer. Therefore, there is no need to remove the detector frequently to replace the battery.
Combined with the internal rotation function, it greatly improves agility in acquisition and productivity, reducing the risk of falls and accidents.

Fail Safe Switch

Fail safe switch detects panel in side the tray / bucky. When the panel is not inside the bucky or not inserted properly, exposing X-ray is unable. Thus, false exposure can be prevented.

Parameter setting on the touchscreen display on the tube frame

[photo] Tube head LCD display screenshot with "A digital display on the tube head provides easy access to exam parameters in the X-ray room" text on a FDR Smart X X-ray system background

Integrated and optimized workflow and High Image Quality

[photo] A computer monitor with the Console and X-ray Operation panels highlight with in blue and orange borders respectively

Integrated Console

Ensures more agile and secure workflow.
The integrated console option unifies the x-ray generator commands with the detector console. It is possible to configure the exposure technique and the management of the worklist, patients and images on the same PC. In addition, the kV and mAs parameters of each exposure are saved and sent along with the images to the analysis and diagnostic system.

* This function is optional and is only available for Console Advance, not for other detectors or CR.

Technique select buttons

Connected modalities (panels / cassettes) are displayed both in Console and X-ray controller. By simply selecting the button, the modality can be changed and they are synchronized between Console and X-ray controller.

[photo] Close-up view of the status display for the DR Panel confirming it's status, wireless connection level and batter charge level

Status Display for the Detector

When the detector is used, it is possible to confirm its wireless connection status, battery charge level, among other parameters.

Generator Line up

Flexible generator line up provides solutions for all environments

[photo] Line Powered Generator which is a high frequency X-ray generator

Microprocessor high-frequency generator, adjustable to the required workload in any demand. Generator power selectable between 40 kW/52 kW/68 kW/82 kW, three-phase 380V.

* Some of the functions mentioned on this page are optional. Please contact your local contact window about the details.

Products Name : FDR Smart X（Model name : FDR Smart FGXR)
