DRI-CHEM NX600 - Overview

Why has Fujifilm's Dri-chem technology been chosen over the past few years?

Fujifilm uses technologies that it has developed in the field of photography. Over the past 4 decades, we have been working to improve ease of use and reduce analyzer size. That's why FUJI DRI-CHEM devices are used in various medical centers, such as outpatient clinics, hospital labs, and medical labs.  In addition, they can be used in situations where the water supply is interrupted due to disasters and in remote regions.

Each test needs only 10 μL of sample. (CRP needs 5 μL/test, ISE 50μL/3 tests). Manual pipetting can also be performed when the sample is less.

• * 50μL are used for the simultaneous measurement of three electrolytes.

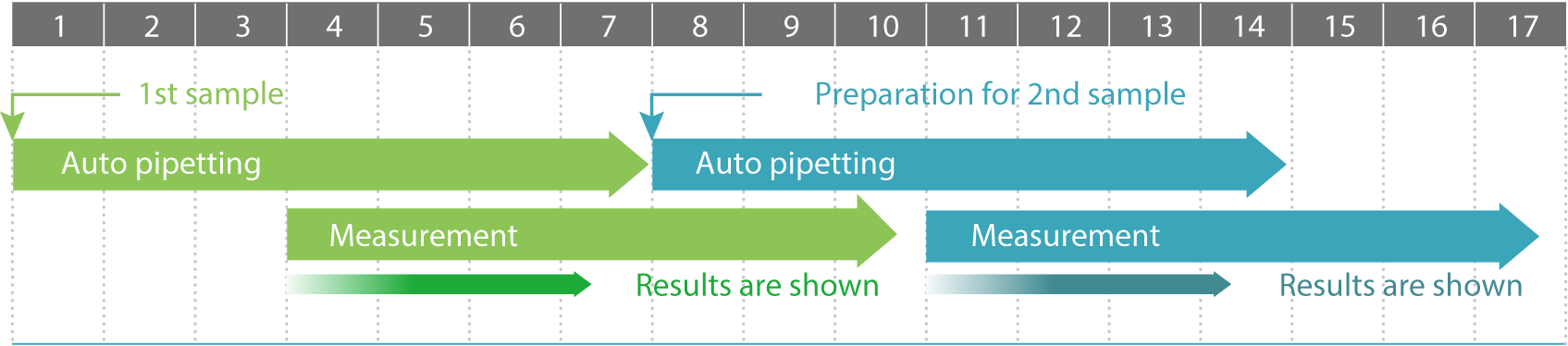

128 tests can be processed per hour.

The stability of the reagents in the slides does not require calibration, and the variability of the batches is adjusted by the QC Card;
The QC Card comes with the slide box and is required only once, during the entire validity period of the batch

• * CRP: Calibration required
  ISE: Calibration and correction are not required. Uncoupled QC card.

With the ISE module, the Fujifilm Dri-chem enables measurement of Sodium, Potassium and Chloride electrolytes on a single slide, delivering the measurement in as little as 1 minute.

Minimally interfering with pre-analytical sample handling, the Dri-chem can be operated with Fujifilm tubes (0.5/1.5 mL) or be adapted to the main sample tube models on the market.

Automation of work operations such as pipetting and mixing, etc. The only operation required is the insertion of the dilution ratio.

After measurement, the pipetting blades and tips are automatically discarded in the disposal box, minimizing the risk of contamination.

Complies with international standards. Smoothly links with a facility’s host system.

Enzymes, General chemistry, and Immunology

This multilayer sheet is composed of dry chemical reagents needed for the reaction and other functional materials. It quantifies enzymes and chemicals using a colorimetric method of sample interference filtering and colorimetric reaction.

Electrolytes

Each slide comes with an ion-selective film electrode for each of Na, K, and CI. The slides quantify the electrolytes in the sample by a sample interference filtering method and potentiometric reaction.
