FUJIFILM will be exhibiting at the VISION 2022 show in Stuttgart, Germany, from October 4-6, 2022. At booth 10F50, visitors can discover the latest innovations in industrial optics from the Japanese manufacturer. Highlight of the FUJIFILM booth is a series of “heavy duty” industrial lenses specially designed for demanding applications requiring a high resistance to shocks and vibrations.
The FUJINON HF-XA-1F series is suitable for image sensor sizes from 2/3” to 1/1.2” and resolutions up to 5 Megapixel resulting in 3.45µm pixel sizes. This segment, which is the core of the industrial machine vision market, has been successfully addressed by the popular HF-XA-5M lenses so far. The HF-XA-1F series carries over the optical design and performance of the HF-XA-5M lenses into a completely new mechanical design optimized for shock and vibration resistance.
Minimal optical shift with up to 10G shocks
The optical performance of the new series is identical with the one of the FUJINON HF-XA-5M series with focal lengths ranging from 8mm to 35mm. In particular, the low distortion and consistent image sharpness along the edges are also found in the HF-XA-1F. This also applies to the short minimal object distance (starting 100 mm) as well as the consistent image quality regardless of the object distance.
The key difference between both series resides in the shock resistance. The FUJINON HF-XA-1F series not only features FUJIFILM’s popular Anti Shock & Vibration technology, but it also takes it one step further with a rugged mechanical design with no moving parts inside the lens. This ensures the highest possible optical stability and durability, even under harsh conditions.
The focus is adjusted with the special C-mount and its nut and counter nut system: The user attaches the lens to the camera by turning it into the C-mount thread until the correct focus is achieved. This position is then locked using the mount nut of the lens. That way, the complete lens is adjusted to the sensor without moving optical glass parts inside the lens.
Similarly, the iris is fixed to avoid moving parts to be shifted by shocks: Users can adapt the iris to their needs by exchanging the fix iris plate. Three different plates are provided with every lens: F open, F4, and F8. They can be easily exchanged by the user and are screw-locked to ensure they can withstand heavy shocks and vibrations.
FUJIFILM has tested the new lenses by applying forces up to 10G in six directions and measuring the shift of the optical axis after the test. The results are spectacular compared to conventional lenses with barely visible shifts.
Ideal for demanding industrial applications

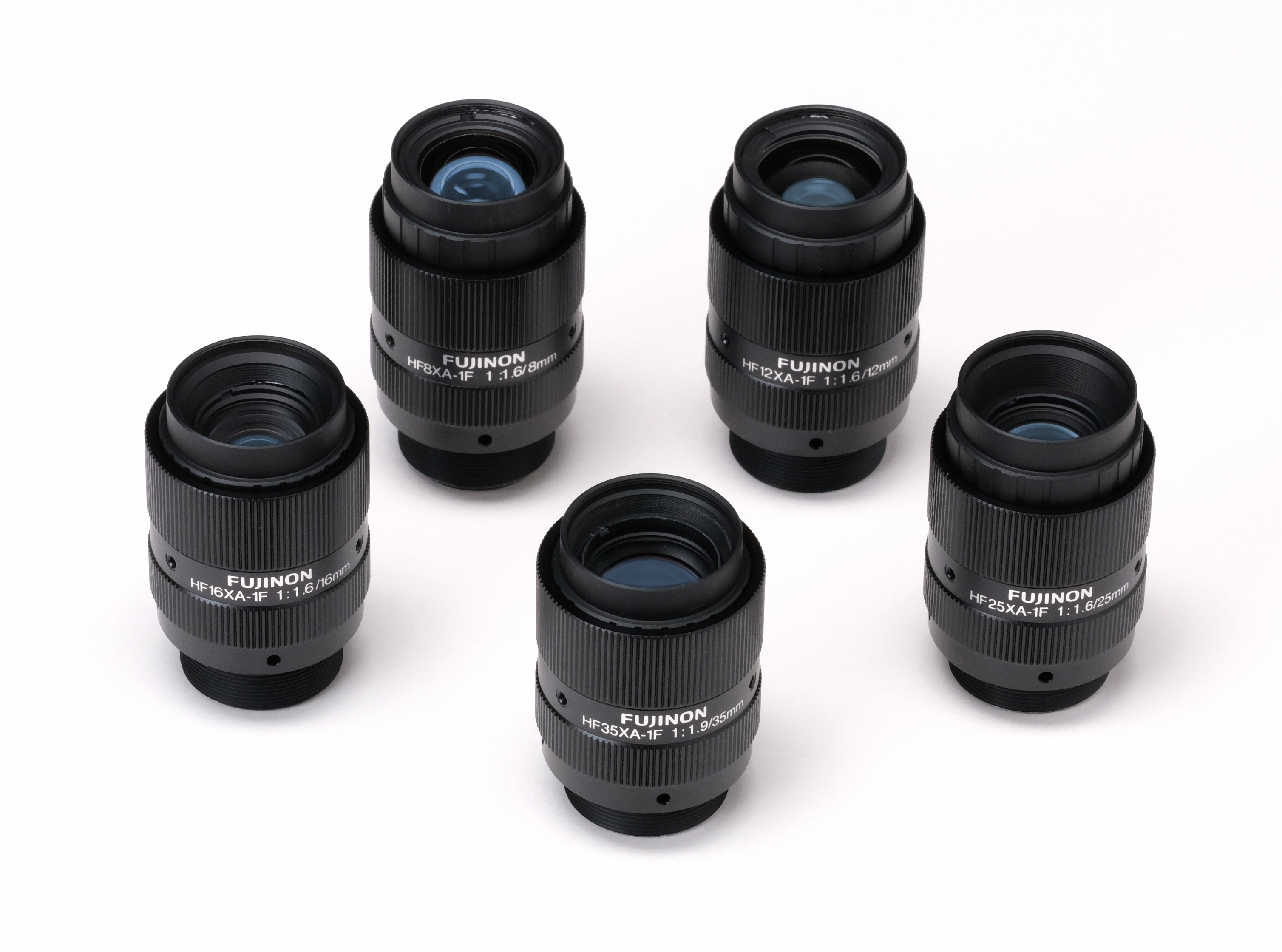

Thanks to their unique design, the FUJINON HF-XA-1F lenses are ideal for imaging in tough environments or moving systems, for example in 3D/Stereoscopy or robotics applications. The range includes five models with 8mm to 35mm focal lengths:
|
Model |
Focal length |
F# |
|
HF8XA-1F |
8mm |
F1.6, F4, F8 |
|
HF12XA-1F |
12mm |
F1.6, F4, F8 |
|
HF16XA-1F |
16mm |
F1.6, F4, F8 |
|
HF25XA-1F |
25mm |
F1.6, F4.6, F9.2 |
|
HF35XA-1F |
35mm |
F1.9, F5.2, F10.4 |
VISION 2022
Messe Stuttgart
October 4-6, 2022
Hall 10 / Booth #F50
Contact:
FUJIFILM Electronic Imaging Europe GmbH
Fujistr. 1
47533 Kleve
Phone: +49 2821 / 7115 400
Email: cctv_eu@fujifilm.com
www.fujifilm.com
About FUJIFILM Electronic Imaging Europe GmbH
FUJIFILM Electronic Imaging Europe GmbH is responsible at its Kleve location for the sales, marketing and servicing of professional FUJINON lenses for TV and film productions, CCTV and Machine Vision as well as FUJINON Binoculars in Europe.
For many years, FUJIFILM has been creating award-winning FUJINON lenses. It develops and produces innovative, cutting-edge solutions for almost every application in the entertainment industry, security systems and industrial image processing.
The professional lenses for TV and film productions redefine the limits of high resolution, high contrast ratio and high dynamic range. They create the pin-sharp TV pictures and help camera operators film stunning, powerful scenes.
Thanks to the Megapixel-Zoom and Megapixel-Varifocal lenses, CCTV systems are becoming high resolution. The steadily growing portfolio of precise Machine Vision lenses for industrial image processing ensures minimal distortion for highest image quality, even under harsh conditions.
FUJINON binoculars are known throughout the world. In particular, the binoculars are very much appreciated by users in professional and semi-professional areas.
