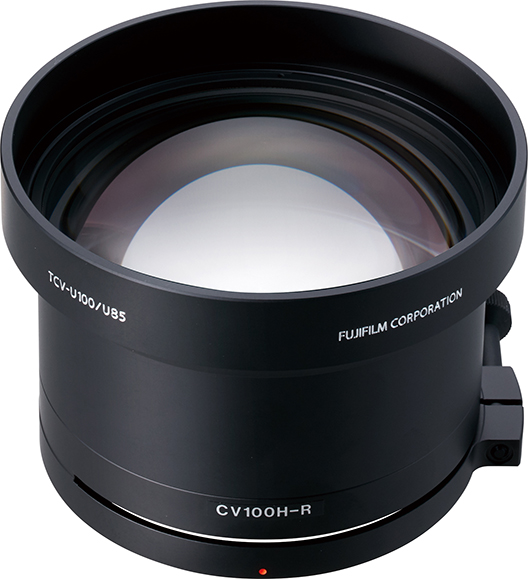

►Focal length is multiplied by the magnification of the converter on the telephoto side. ►Zooming possible. ►The F-No. on the master lens remains unchanged. ►M.O.D. is increased. ►Loss of picture edges will occur toward the wide angle side of the zoom range.

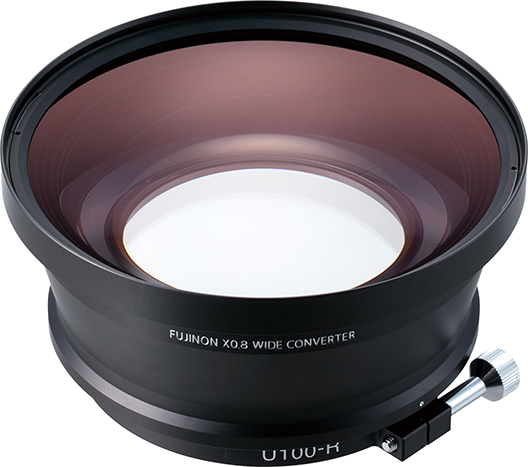

►Focal length is multiplied by the magnification of the converter on the wide side. ►Zooming possible. ►The F-No. on the master lens remains unchanged. ►M.O.D. is decreased.

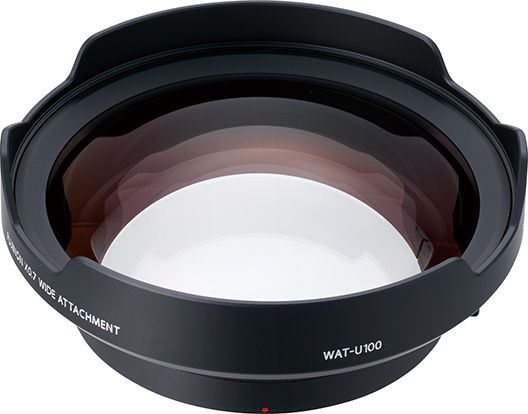

►Converts only the wide end of the lens by the magnification of the attachment. ►Zooming not possible. ►The F-No. on the master lens remains unchanged. ►Focus is adjustable only by the macro lever of master lens located near the lens mount.

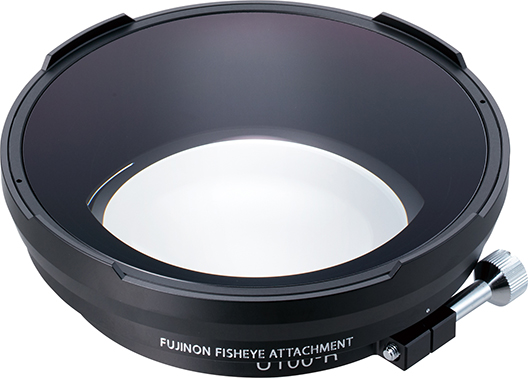

►Converts only the wide end of the lens by the magnification of the attachment. ►Zooming not possible. ►The F-No. on the master lens remains unchanged. ►Focus is adjustable only by the macro lever of master lens located near the lens mount.

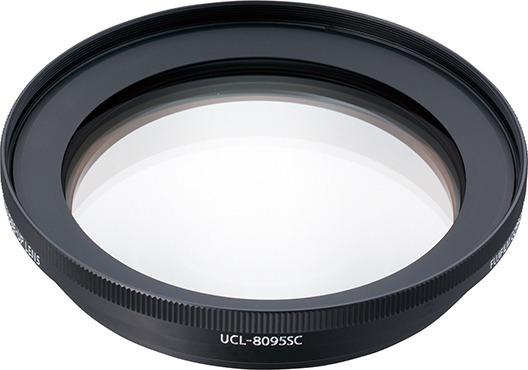

►Close-up lens provides a shorter minimum focusing distance between lens and object. ►Ideal for copy stand or other close up work.

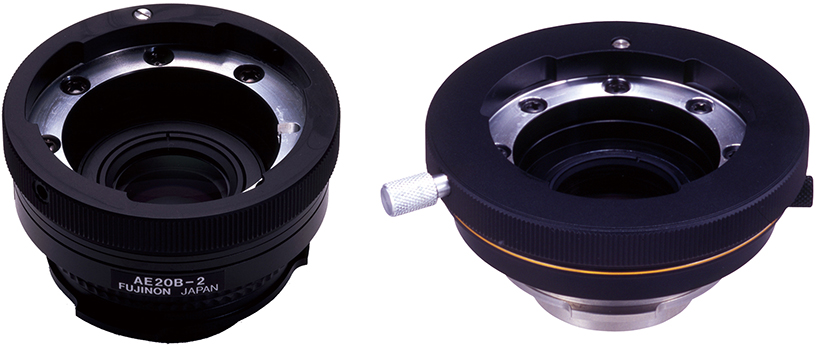

►2x range extender mounts between master lens and camera and doubles the focal length of the master lens. ►F-No. is doubled. ►Includes back focus adjustment.
| LENS | XA20sx8.5 XS20sx6.3 XT17sx4.5 XT20sx4.7 |
UA18×7.6 |
UA24x7.8 HA23x7.6 ZA22x7.6 |
||
|---|---|---|---|---|---|
| Front Lens Diameter | ∅85 | ∅100 | |||
| Model Name | Magnification | Approx. Mass(kg) |
|||
| TCV-U85 | 1.5x | 1.10 | ● | ||
| TCV-U100 | 1.00 | ● | |||
| WCV-U85 | 0.8x | 1.24 | ● | ||
| WCV-U100 | 1.20 | ● | |||
| WAT-U85 | 0.7x | 0.36 | ● | ||
| WAT-U100 | 0.53 | ● | |||
| F-ATU85 | 0.55x | 0.71 | ● | ||
| F-ATU100 | 0.67 | ● | |||
| Model Name | Magnification | Approx. Mass(kg) |
|||
|---|---|---|---|---|---|
| UCL-8082SC | 0.8m | 0.28 | ● M82x0.75 |
||
| UCL-8095SC | 0.42 | ● M95x1 |
|||
| Model Name | Object Distance | Approx. Mass(kg) |
|||
|---|---|---|---|---|---|
| HAeE14-1 | 1.4x | 0.30 | |||
| AE20B-2 | 2.0x | 0.17 | |||
-
* AE20B-2 is specifically designed for SDTV lens.
Sandwich style optical stabilizer for use with most Fujinon 2/3 inch ENG style lenses. Mounts between lens and camera. Increases magnification by 25%.
- Application
Stand-alone Optical Image Stabilization
- Power Consumption
DC12V, 4.2W (from camera)
- Size (Height × Width × Length)
144 × 120 × 58 mm
- Weight
Approx. 1.0 kg
- Stabilization System
Optical shift system
- Magnification of Focal Length
1.25 ×
- Frequency of Compensation
Approx. 1 to 10 Hz
- Anti-vibration Range
Approx. 20% of picture height
- Mount
Bayonet (2/3" B4-type)
| Model Name | Camera | Lens | Note |
|---|---|---|---|
| ACM-8B | 1/2" Sony Bayonet Mount | 2/3" Bayonet Mount | Angle of view is approx. 1.3x shifted to tele side |
| ACM-19 | 1/3" Bayonet Mount | 1/2" Sony Bayonet Mount | Angle of view is approx. 1.3x shifted to tele side |
| ACM-17 | 1/3" Bayonet Mount | 2/3" Bayonet Mount | Angle of view is approx. 1.6x shifted to tele side |
| ACM-21 | SONY PMW-300 | 2/3" Bayonet Mount | Angle of view is approx. 1.4x shifted to tele side |
-
* Fujifilm has variety of Mount Adapters. For more detail, please ask our sales office .
