[photo] Fujifilm Z Projector FP-Z8000

Projector FP-Z8000/FP-Z6000 - Specifications

The Z-projector FP-Z8000 and FP-Z6000 is adaptable to a wide range of installation. Use it gallery and showroom, amusement facility, or events.

Projection SimulatorContact Us
Overview
Specifications
ResourcesCase Studies

Specifications

FP-Z8000

Downloads [PDF]

FP-Z6000

Downloads [PDF]

Principal Specifications

Model  name FP-Z8000-W（White）　
FP-Z8000-B（Black）		FP-Z6000-W（White）　
FP-Z6000-B（Black）
DLP chipSize0.67 in, 16:10 aspect ratio
Display method1 Chip DLP
Resolution2,304,000 pixel (1920 x 1200)
LensTypeFolded two-axial rotatable lens
ShiftElectrical: Vertical ±70%, Horizontal ±35%
ZoomElectrical: x1.0-x1.1
Throw ratio(TR)*10.34 (Wide)-0.37 (Telephoto)
Focal lengthf=5.0mm (Wide)-5.5mm (Telephoto)
F No.F2.3 (Wide)-F2.39 (Telephoto)
Keystone correction rangeVertical ±5°/ Horizontal ±5°
Light sourceLaser diode
Brightnes [ANSI lm*2]8,000lm6,000lm
Light source life*3Up to about 20,000 hours
Contrast ratio*412,000:1
Projected image size70-300 inches
Speaker10W x 1
Maximum display resolution(WxH)WUXGA 1920 x 1200
TerminalsVideo IN　terminalsHDMI 1 IN

TypeA

HDMI 2.0 (Compatible with HDCP 2.2, Accept 3840 x 2160 60P Input)

DisplayPort IN

DisplayPort 20pin

Display Port1.2 (Compatible HDCP 1.3, Accept 3840 x 2160 60P Input)

SDI IN

BNC

3G/HD/SD SDI Input

HDBaseT IN

RJ-45

for video/audio/connection control (Accept 3840 x 2160 60P Input)

Control IN/OUT terminalsLAN

RJ-45

for network connection (10BASE-T/100Base-TX）

HDBaseT

RJ-45

for projector connection control

RS-232C

D-Sub 9Pin

for projector connection control

Audio IN/OUT terminalsAUDIO IN3.5mm stereo mini jack
AUDIO OUT3.5mm stereo mini jack
OthersUSB 1

TypeA

for maintenance, DC 5V 1.5A(Max)

Warping/Edge blending functionHDMI 2 IN

TypeA

HDMI 1.4 (Compatible with HDCP 1.4, Audio input not supported）

ー
USB 2

TypeA

for warping / edge blending function

ー
Power supplyAC 100-120V, AC 220-240V　50/60Hz
Power consumption1020W Normal:960W, Eco:620W642W Normal:604W, Eco:386W
Power consumption(during standby)Approx.0.5W, Network standby Approx.3.0W
Dimensions460mm (W) x 510mm (D) x 162.5mm (H)　(excluding adjustable feet)
WeightApprox.18.4 kg (40.6 lb)Approx.17.5kg (38.6lb)
Noise level*5Normal:43dB, Eco:40dBNormal:41dB, Eco:38dB
Operation enviromentOperating temperature0-40℃ (32-104°F)
Accessories includedPower cord 3.0m (9.8ft)
Power cord lock
Lens cap
Remote control
Remote control battery (AAA type x2)
Basic manual
  • *1 The “throw ratio” is the throw distance divided by the screen width.
  • *2 The average value for this model at shipment, according to ANSI standards.
  • *3 The estimated time taken for brightness to drop by half. Varies with the operating environment and conditions of use.
  • *4  Assumes that dynamic contrast ratio is on.
  • *5 The average value for this model at shipment.

Brochure only
Product specifications and appearance are subject to change withourt advance notice

  • * Optional accessories: ceiling mount, dedicated storage case
  • * The projectors are Class 1 laser products. Do not look directly into the beam.
  • * PJ Link is a trademark registered in Japan, the United States, ard other countries.
  • * HDBaseT, the HDBaseT logo, and the HDBaseT Alliance are trademarks in Japan and other countries.
  • * DLP and the DLP logo are registered trademarks of Texas Instruments.
  • * HDMI is a trademark or registered trademark of HDMI Licensing LLC in the United States and other countries.
  • * Crestron, Crestron RoomView, Crestron Connected, and the Crestron Connected logo are registered trademarks of Crestron Electronics, Inc. in the United States.

Interface Connectors

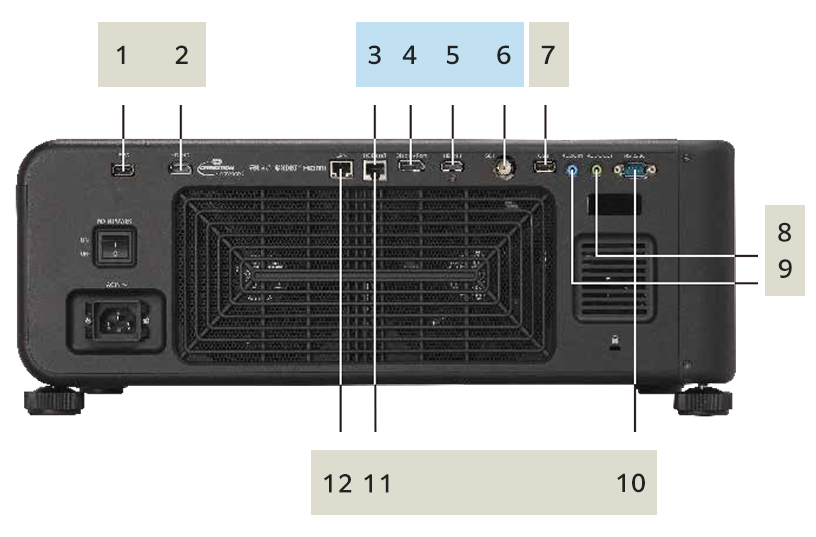

Description of the input terminal face of the Z-Projector

Warping/Edge bending function terminals

  1. HDMI 2
  2. USB 2
  • * The Warping and Edge blending function terminals is carried only in Z8000

Video IN terminals

  1. HD BaseT
  2. DisplayPort
  3. HDMI 1
  4. SDI

Other

  1. USB 1

Audio IN/OUT terminals

  1. AUDIO OUT
  2. AUDIO IN

Control IN/OUT terminals

  1. RS-232C
  2. HD BaseT
  3. LAN
Download the catalog showing the features and specifications of the FP-Z8000&FP-Z6000 projector

Dimension

External Dimensions

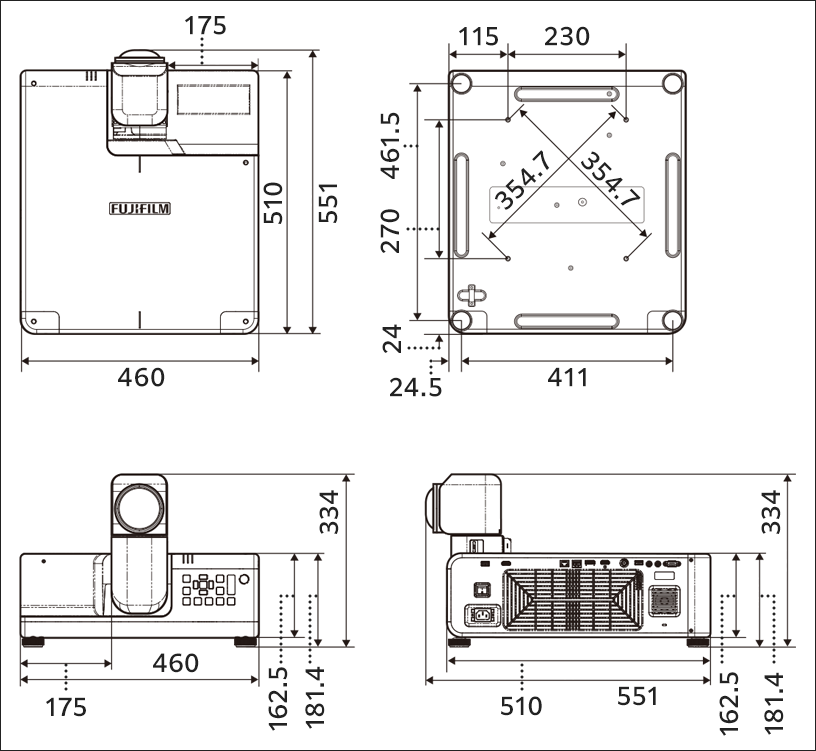

Detailed size description of each part of Z-Projector

* Product specifications and appearance are subject to change without advance notice.

Projection Distance

Lens Shift Range

Detailed explanation of shift movement range - In the case of WUXGA (16:10), 70% vertical and 35% horizontal movement is possible in relation to the screen size.

Projection Distance

Description of the screen shift range from the center of the lens

Projection Distances

16:10　Screen① Projection distance (cm)② Lens shift (cm)
Size (inches)Width (cm)×Height (cm)Wide-TeleLowest-Highest
70151×9450-55-113-19
80172×10858-64-129-22
90194×12165-72-145-24
100215×13572-80-162-27
120258×16287-96-194-32
150323×202109-121-242-40
200431×269147-161-323-54
250538×337184-202-404-67
300646×404221-243-485-81
  • * Figures are approximate. differing from the actual values by a few percent.
