Technical Data & Line up
LTO Generation | Universal Cleaning Cartridge |
LTO G4/G4 WORM | LTO G5/G5 WORM | LTO G6/G6 WORM | LTO G7/G7 WORM | LTO G8/G8 WORM | LTO G9/G9 WORM |
---|---|---|---|---|---|---|---|
Basic Specifications | |||||||
Native Capacity (Compressed) |
- | 800GB (1.6TB) |
1.5TB (3.0TB) |
2.5TB (6.25TB) |
6TB (15TB) |
12TB (30TB) |
18TB (45TB) |
Max.Transfer Rate*1 (Compressed) |
- | 120MB/sec. (Up to 240MB/sec.) |
140MB/sec. (Up to 280MB/sec.) |
160MB/sec. (Up to 400MB/sec.) |
300MB/sec. (Up to 750MB/sec.) |
360MB/sec. (Up to 750MB/sec.) |
400MB/sec. (Up to 1,000MB/sec.) |
Number of Tracks | - | 896 | 1,280 | 2,176 | 3,584 | 6,656 | 8,960 |
Servo Band | - | Timing-based servo | |||||
Cartridge Memory | 32,786bits (4,096bytes); Internal EEPROM |
65,280bits(8,160bytes); Internal EEPROM | 130,816bits(16,352bytes); Internal EEPROM | 261,888bits (32,736bytes); Internal EEPROM |
|||
Physical Characteristics | |||||||
Tape Width | - | 12.65mm | |||||
Tape Thickness | 8.9μm | 6.6μm | 6.4μm | 6.1μm | 5.6μm | 5.2μm | |
Tape Length | 319m | 820m | 846m | 960m | 1,035m | ||
Cartridge Dimensions (L x W x H) |
102 x 105.4 x 21.5 mm | ||||||
Recommended Operation Environment | |||||||
Temperature | 10~45℃ | 15~25℃ | |||||
Humidity | 10~80%RH | 20~50%RH | |||||
Max Wet Bulb Temperature / Max Dew Point Temperature | 26℃ (Max Wet Bulb Temperature) | 22℃ (Max Dew Point Temperature) | |||||
Recommended Storage Environment | |||||||
Temperature | 16~35℃(Short Term)/16~25℃(Long Term) | 15~25℃ | |||||
Humidity | 20~80%RH(Short Term)/20~50%RH(Long Term) | 20~50%RH | |||||
Max Wet Bulb Temperature / Max Dew Point Temperature | 26℃ (Max Wet Bulb Temperature) | 22℃ (Max Dew Point Temperature) | |||||
Allowable Operation Environment | |||||||
Temperature | 10~45℃ | 15~35℃ | |||||
Humidity | 10~80%RH | 20~80%RH | |||||
Max Wet Bulb Temperature / Max Dew Point Temperature | 26℃ (Max Wet Bulb Temperature) | 22℃ (Max Dew Point Temperature) | |||||
Allowable Storage Environment | |||||||
Temperature | 16~35℃(Short Term)/16~25℃(Long Term) | 15~35℃ | |||||
Humidity | 20~80%RH(Short Term)/20~50%RH(Long Term) | 20~80%RH | |||||
Max Wet Bulb Temperature / Max Dew Point Temperature | 26℃ (Max Wet Bulb Temperature) | 22℃ (Max Dew Point Temperature) |
- *1 Depends on the drive interface.
- * The Universal Cleaning Cartridges are designed for use in all LTO Ultrium 1 through 9 drives.
Specific revisions of firmware may be required for proper operation. - * WORM:WORM(Write Once Read Many)is data cartridge in which information, once written, cannot be modified.
It is a cost-effective storage capability which ensures data is not overwritten, and to help address compliance regulations.
Media/Drive compatibility
〇:Read/write △:Read only(no writing) ×:No read/write
Media/Drive | G9 Drive | G8 Drive | G7 Drive | G6 Drive | G5 Drive | G4 Drive |
---|---|---|---|---|---|---|
LTO G9 | 〇 | × | × | × | × | × |
LTO G8 | 〇 | 〇 | × | × | × | × |
LTO G7 | × | 〇 | 〇 | × | × | × |
LTO G6 | × | × | 〇 | 〇 | × | × |
LTO G5 | × | × | △ | 〇 | 〇 | × |
LTO G4 | × | × | × | △ | 〇 | 〇 |

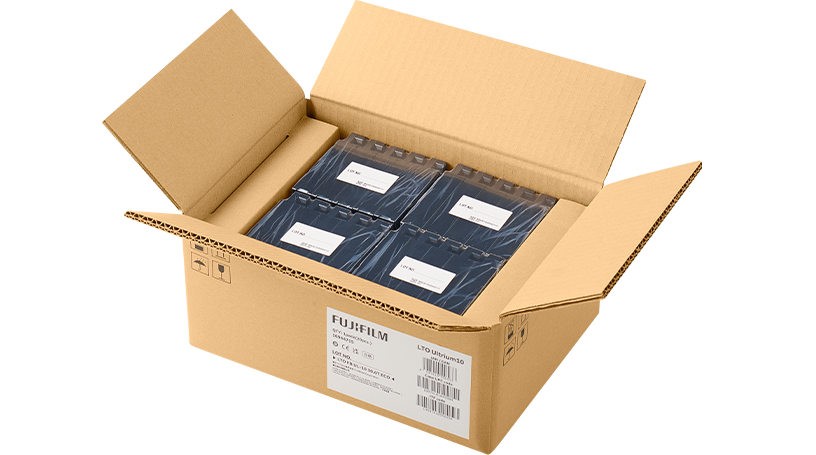

Eco Pack
![](https://asset.fujifilm.com/www/si/files/2021-01/65652136290b8fc25cad42b47a309846/pic_ltotape_specifications_01.jpg)
Sustainable packing makes handling and managing LTO tapes significantly easier.
- Eliminate individual small carton box and hard case, shrink wrapping.
- Increase productivity (Takes 85% less time to open*2)
- Reduce waste (waste reduced by 2/3 compared to regular products)
- Reduce CO2 emissions (85% reduction in production process CO2 emissions)
- Space saving (Uses approximately 30% less space*3)
- Cartridges per Pack is 20.
- *2 Figures obtained by comparing packaging material opening times.
- *3 Compared to our standard products.
The library pack protects the cartridges against impact if dropped and provides also added protection against dust and humidity.
It's a good and safe storage and archival solution offering easy and quick unpacking, carrying and piling.
Data Tape Pro Case
The DATA TAPE COURIER PROFESSIONAL CASE, a new media container made of industrial-strength, lightweight, high-density polyethylene. The case features heavy-duty lockable compression clasps and soft interior contact points that create a durable seal. It can be used to transport data cartridges from one location to another or to off-site storage, in fulfillment of your company's commercial, proprietary and regulatory requirements. The DATA TAPE COURIER PROFESSIONAL CASE is certified and approved by FUJIFILM to protect LTO cartridges and enterprise cartridges.
Product Lineup
Holds 18 LTO cartridges in their plastic cases
Holds 14 LTO cartridges without their plastic cases
Holds 20 Enterprise cartridges
Warranty
Warranty
![](https://asset.fujifilm.com/www/si/files/2021-04/c2c59d5ba5f94cfca8ac788abd1ee7c6/pic_ltotape_downloads_06.jpg)

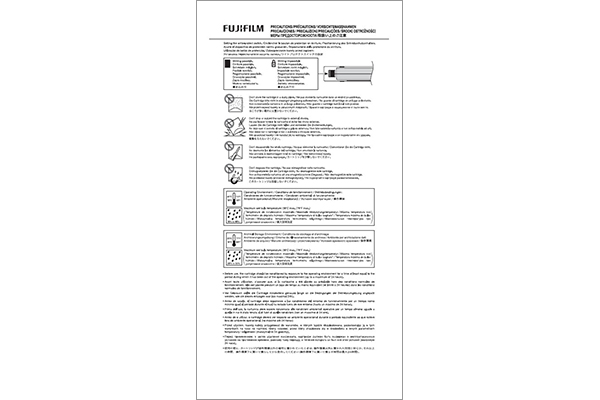

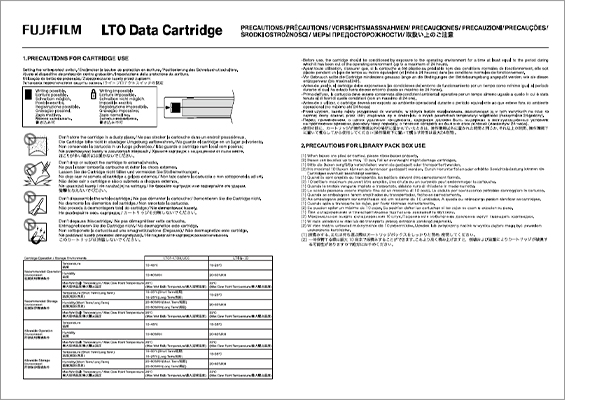

Precautions
Precautions
![](https://asset.fujifilm.com/www/si/files/2022-06/1dfc1c264665040f08bf2fb3a5cc7a7c/pic_ltotape_downloads_07.jpg)
Disposal of Tape
Notice
![](https://asset.fujifilm.com/www/si/files/2022-06/6fbe8047a8d798d9274e9dacd54ee7f5/pic_ltotape_specifications_06.jpg)
