![[photo] EG-600WR gastroscope](https://asset.fujifilm.com/www/mx/files/2024-07/6f981d8e810bd75c4ecac3feba6f4a9e/pic_gastroscopes_01.jpg)
![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/mx/files/2024-07/c9b39809cb59d7f21e194526d85fff3d/pic_gastroscopes_02.jpg)
![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/mx/files/2024-07/39dac0ced2ca568d8c580da8aaaa2a0f/pic_gastroscopes_03.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
2-100 mm
- Distal end diameter
9.2 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
2.8 mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400 mm
- Water Jet
Available
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope

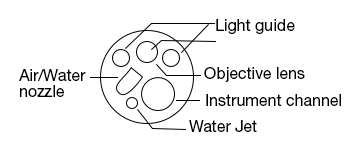

![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/mx/files/2024-07/4e049d42970fe51b248c905f0fa901cd/fig_gastroscopes_01.jpg)
![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/mx/files/2024-07/7a8544d62e149a8a25ff9d2044751bf2/fig_gastroscopes_02.jpg)
![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/mx/files/2024-07/0dca1354b9c23af9d86a1f065885fe94/fig_gastroscopes_03.jpg)
![[photo] EG-600ZW gastroscope](https://asset.fujifilm.com/www/mx/files/2024-07/4bdea231c392684494838926659173e2/pic_gastroscopes_04.jpg)
![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/mx/files/2024-07/71ed1e4090e68e162488a37d844cfaa4/pic_gastroscopes_05.jpg)
![[photo] Flexible tip of scope bent upward with forceps sticking out](https://asset.fujifilm.com/www/mx/files/2024-07/5ebd6b5ae63a09b249b0148f7c06fb82/pic_gastroscopes_06.jpg)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm- Distal end diameter
9.9mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
2.8mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100 mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/mx/files/2024-07/2b81c11af5d646f1de9b8cf94e28aa70/fig_gastroscopes_04.jpg)
![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/mx/files/2024-07/6d39cc70d01fc461c0d176ad59fb8e9e/fig_gastroscopes_05.jpg)
![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/mx/files/2024-07/f467c26080240f19330cbb43690e1664/fig_gastroscopes_06.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
9.8mm
- Minimum diameter of instrument channel
3.2mm
- Bending capability
UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/mx/files/2024-07/2db88797a3a0e576df3d9567cbc0565d/fig_gastroscopes_07.jpg)
![[image] Scope flexibly bends 210 degrees up/120 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/mx/files/2024-07/5f91bb909345fc5949700a929ee1b057/fig_gastroscopes_08.jpg)
![[image] Image area & forceps entry position](https://asset.fujifilm.com/www/mx/files/2024-07/078b73aace5d81b862115de10dab68d8/fig_gastroscopes_09.jpg)
![[photo] EG-580NW2 gastroscope](https://asset.fujifilm.com/www/mx/files/2024-07/71c5b662f74c6309fd28285057e10bc5/pic_gastroscopes_09.jpg)
![[photo] Distal end/tip of gastroscope, with functional parts](https://asset.fujifilm.com/www/mx/files/2024-07/3deb90a96915b831a645fac4eed9bc0b/pic_gastroscopes_10.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
5.8mm
- Insertion tube diameter
5.9mm
- Minimum diameter of instrument channel
2.4mm
- Bending capability
UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°- Working length
1,100mm
- Total length
1,400mm
- Product: Video Endoscope
- GMDN: 38805
- Generic name: Flexible video gastroduodenoscope
![[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet](https://asset.fujifilm.com/www/mx/files/2024-07/bab07a0a317e8bc874fa532a5a6bbfb7/fig_gastroscopes_10.jpg)
![[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right](https://asset.fujifilm.com/www/mx/files/2024-07/8b9db85d9d6b1f5f1f74acea83c7839f/fig_gastroscopes_11.jpg)
![[image] image area & forceps entry position](https://asset.fujifilm.com/www/mx/files/2024-07/b5a6aadba6510ebfc1c8dbbd0d77aca9/fig_gastroscopes_12.jpg)
