| Model name | FP-Z8000-W（White） FP-Z8000-B（Black） |
FP-Z6000-W（White） FP-Z6000-B（Black） |
||
|---|---|---|---|---|
| DLP chip | Size | 0.67 in, 16:10 aspect ratio | ||
| Display method | 1 Chip DLP | |||
| Resolution | 2,304,000 pixel (1920 x 1200) | |||
| Lens | Type | Folded two-axial rotatable lens | ||
| Shift | Electrical: Vertical ±70%, Horizontal ±35% | |||
| Zoom | Electrical: x1.0-x1.1 | |||
| Throw ratio(TR)*1 | 0.34 (Wide)-0.37 (Telephoto) | |||
| Focal length | f=5.0mm (Wide)-5.5mm (Telephoto) | |||
| F No. | F2.3 (Wide)-F2.39 (Telephoto) | |||
| Keystone correction range | Vertical ±5°/ Horizontal ±5° | |||
| Light source | Laser diode | |||
| Brightnes [ANSI lm*2] | 8,000lm | 6,000lm | ||
| Light source life*3 | Up to about 20,000 hours | |||
| Contrast ratio*4 | 12,000:1 | |||
| Projected image size | 70-300 inches | |||
| Speaker | 10W x 1 | |||
| Maximum display resolution(WxH) | WUXGA 1920 x 1200 | |||
| Terminals | Video IN terminals | HDMI 1 IN |
TypeA HDMI 2.0 (Compatible with HDCP 2.2, Accept 3840 x 2160 60P Input) |
|
| DisplayPort IN |
DisplayPort 20pin Display Port1.2 (Compatible HDCP 1.3, Accept 3840 x 2160 60P Input) |
|||
| SDI IN |
BNC 3G/HD/SD SDI Input |
|||
| HDBaseT IN |
RJ-45 for video/audio/connection control (Accept 3840 x 2160 60P Input) |
|||
| Control IN/OUT terminals | LAN |
RJ-45 for network connection (10BASE-T/100Base-TX） |
||
| HDBaseT |
RJ-45 for projector connection control |
|||
| RS-232C |
D-Sub 9Pin for projector connection control |
|||
| Audio IN/OUT terminals | AUDIO IN | 3.5mm stereo mini jack | ||
| AUDIO OUT | 3.5mm stereo mini jack | |||
| Others | USB 1 |
TypeA for maintenance, DC 5V 1.5A(Max) |
||
| Warping/Edge blending function | HDMI 2 IN |
TypeA HDMI 1.4 (Compatible with HDCP 1.4, Audio input not supported） |
ー | |
| USB 2 |
TypeA for warping / edge blending function |
ー | ||
| Power supply | AC 100-120V, AC 220-240V 50/60Hz | |||
| Power consumption | 1020W Normal:960W, Eco:620W | 642W Normal:604W, Eco:386W | ||
| Power consumption(during standby) | Approx.0.5W, Network standby Approx.3.0W | |||

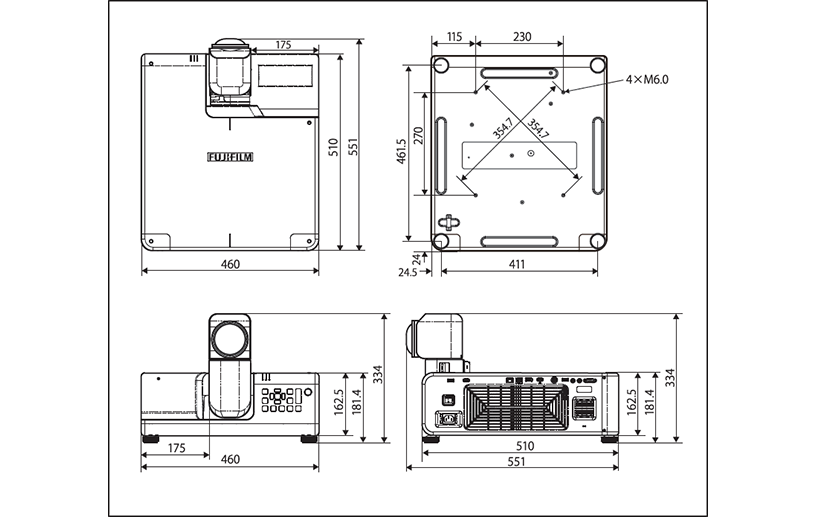

| Dimensions | 460mm (W) x 510mm (D) x 162.5mm (H) (excluding adjustable feet) | |||
| Weight | Approx.18.4 kg (40.6 lb) | Approx.17.5kg (38.6lb) | ||
| Noise level*5 | Normal:43dB, Eco:40dB | Normal:41dB, Eco:38dB | ||
| Operation enviroment | Operating temperature | 0-40℃ (32-104°F) | ||
| Accessories included | Power cord 3.0m (9.8ft) | |||
| Power cord lock | ||||
| Lens cap | ||||
| Remote control | ||||
| Remote control battery (AAA type x2) | ||||
| Basic manual | ||||
- *1 The “throw ratio” is the throw distance divided by the screen width.
- *2 The average value for this model at shipment, according to ANSI standards.
- *3 The estimated time taken for brightness to drop by half. Varies with the operating environment and conditions of use.
- *4 Assumes that dynamic contrast ratio is on.
- *5 The average value for this model at shipment.
Brochure only
Product specifications and appearance are subject to change withourt advance notice
- * Optional accessories: ceiling mount, dedicated storage case
- * The projectors are Class 1 laser products. Do not look directly into the beam.
- * PJ Link is a trademark registered in Japan, the United States, ard other countries.
- * HDBaseT, the HDBaseT logo, and the HDBaseT Alliance are trademarks in Japan and other countries.
- * DLP and the DLP logo are registered trademarks of Texas Instruments.
- * HDMI is a trademark or registered trademark of HDMI Licensing LLC in the United States and other countries.
- * Crestron, Crestron RoomView, Crestron Connected, and the Crestron Connected logo are registered trademarks of Crestron Electronics, Inc. in the United States.
- HDMI 2
- USB 2
- * The Warping and Edge blending function terminals is carried only in Z8000
- HD BaseT
- DisplayPort
- HDMI 1
- SDI
- USB 1
- AUDIO OUT
- AUDIO IN
- RS-232C
- HD BaseT
- LAN
* Product specifications and appearance are subject to change without advance notice.
| 16:10 Screen | ① Projection distance (cm) | ② Lens shift (cm) | |||||||
| Size (inches) | Width (cm) | × | Height (cm) | Wide | - | Tele | Lowest | - | Highest |
| 70 | 151 | × | 94 | 50 | - | 55 | -113 | - | 19 |
| 80 | 172 | × | 108 | 58 | - | 64 | -129 | - | 22 |
| 90 | 194 | × | 121 | 65 | - | 72 | -145 | - | 24 |
| 100 | 215 | × | 135 | 72 | - | 80 | -162 | - | 27 |
| 120 | 258 | × | 162 | 87 | - | 96 | -194 | - | 32 |
| 150 | 323 | × | 202 | 109 | - | 121 | -242 | - | 40 |
| 200 | 431 | × | 269 | 147 | - | 161 | -323 | - | 54 |
| 250 | 538 | × | 337 | 184 | - | 202 | -404 | - | 67 |
| 300 | 646 | × | 404 | 221 | - | 243 | -485 | - | 81 |
- * Figures are approximate. differing from the actual values by a few percent.
