EC-600ZW
![](https://asset.fujifilm.com/www/mm/files/2020-05/857822c86036d97c0e39c649bb6c398b/pic_colonoscope_04.jpg)
![](https://asset.fujifilm.com/www/mm/files/2020-05/d6890bae8d4a680cc753a5917d533f1c/pic_colonoscope_05.jpg)
![](https://asset.fujifilm.com/www/mm/files/2020-05/ba346c57df1fb521f9e13139818aeaed/pic_colonoscope_06.jpg)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100mm
Normal: 3-100mm
Closest: 1.5-2.5mm- Distal end diameter
12.8mm
- Insertion tube diameter
12.8mm
- Minimum diameter of instrument channel
3.8mm

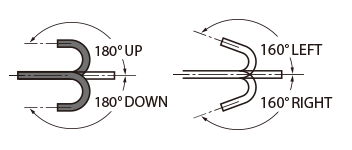

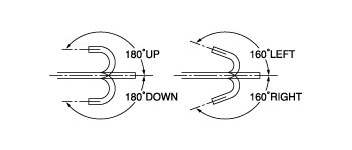

- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160- Working length
EC-600ZW/M
1,330mmEC-600ZW/L
1,690mm- Total length
EC-600ZW/M
1,630mmEC-600ZW/L
1,990mm
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
![](https://asset.fujifilm.com/www/mm/files/2020-05/5e02e84239f601789350db41024d69e5/fig_colonoscope_04.jpg)
![](https://asset.fujifilm.com/www/mm/files/2020-05/bc04dfe88f07f8a333478dca06eedbac/fig_colonoscope_05.jpg)
![](https://asset.fujifilm.com/www/mm/files/2020-05/37e41ab85f31620b57b8102efa2c0320/fig_colonoscope_06.jpg)
EC-580RD
![](https://asset.fujifilm.com/www/mm/files/2020-05/be093df003c04deffed15d9ed3bc2909/pic_colonoscope_07.jpg)
![](https://asset.fujifilm.com/www/mm/files/2020-05/63f2aaa06270fd29373a38e06ee80c49/pic_colonoscope_08.jpg)
![](https://asset.fujifilm.com/www/mm/files/2020-05/3b5da6b3dc9712ee2c18359c4a3f33ca/pic_colonoscope_09.jpg)
- Viewing direction
0°(Forward)
- Field of view
140°
- Observation range
3-100mm
- Distal end diameter
9.8mm
- Insertion tube diameter
10.5mm
- Minimum diameter of instrument channel
3.2mm

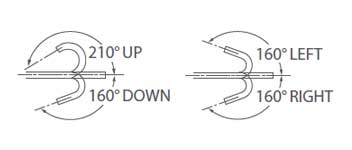

- Bending capability
UP 210° / DOWN 160°
RIGHT 160° / LEFT 160°- Working length
EC-580RD/M
1,330mmEC-580RD/L
1,690mm- Total length
EC-580RD/M
1,630mmEC-580RD/L
1,990mm- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
![](https://asset.fujifilm.com/www/mm/files/2020-05/8b02cbe343de86d585ffab48afec841e/fig_colonoscope_07.jpg)
![](https://asset.fujifilm.com/www/mm/files/2020-05/056e2972ee8c6177f9d4fb699a7252ac/fig_colonoscope_08.jpg)
![](https://asset.fujifilm.com/www/mm/files/2020-05/c62de0298dc1ec46d54c24de4633c048/fig_colonoscope_09.jpg)

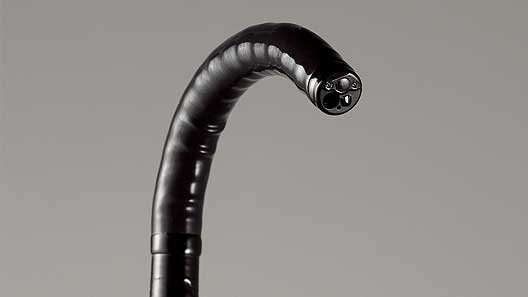

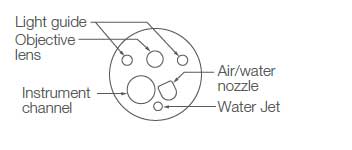

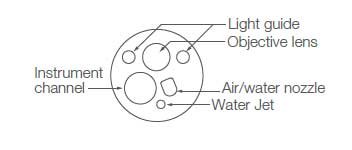

EC-760R-V, EC-760P-V, EC-760S-V
![](https://asset.fujifilm.com/www/mm/files/2020-08/4889f721b7784fdc128328b5da86aa6f/pic_colonoscope_ec760_3.png)
![](https://asset.fujifilm.com/www/mm/files/2020-08/3e49c16441417e19872678a47bdf3089/pic_colonoscope_ec760.png)
![](https://asset.fujifilm.com/www/mm/files/2020-08/f39e2bba74a8517f23e7234251c29255/pic_colonoscope_ec760_2.png)
- Viewing direction
0°(Forward)
- Field of view
170°
- Observation range
2-100mm
- Distal end diameter
EC-760R-V
12.0mmEC-760P-V
11.1mmEC-760S-V
12.8mm- Insertion tube diameter
EC-760R-V
12.0mmEC-760P-V
11.5mmEC-760S-V
12.8mm- Minimum diameter of instrument channel
EC-760R-V
3.8mmEC-760P-V
3.2mmEC-760S-V

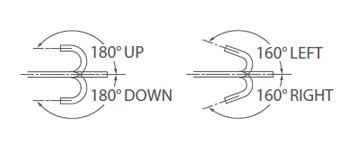

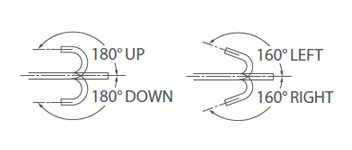

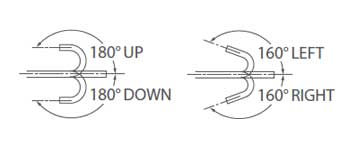

3.8mm- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°- Working length
EC-760R-V/M,I,L
1,330mm / 1,520mm / 1,690mmEC-760P-V/M,L
1,330mm / 1,690mmEC-760S-V/L
1,690mm- Total length
EC-760R-V/M,I,L
1,650mm / 1,840mm / 2,010mmEC-760P-V/M,L
1,650mm / 2,010mmEC-760S-V/L
2,010mm- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
![](https://asset.fujifilm.com/www/mm/files/2020-08/16b5b0619d4353d971d5f133c4f8e6fb/fig_colonoscope_ec760.png)
![](https://asset.fujifilm.com/www/mm/files/2020-08/d2aaad372b76d47f082dbb6007cc205a/fig_colonoscope_02.jpg)
![](https://asset.fujifilm.com/www/mm/files/2020-08/988d59475a7d37ae1f62fb7d9a4a3fd2/fig_colonoscope_ec760_3.png)

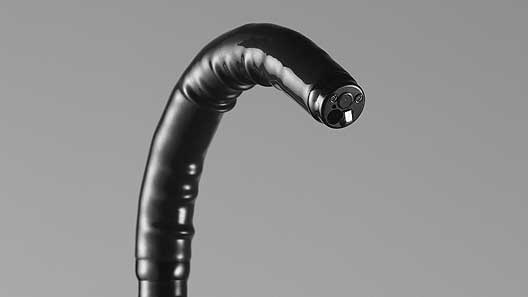

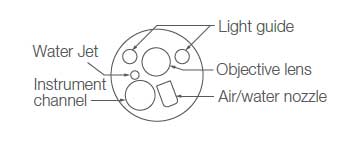

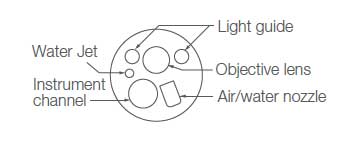

EC-760Z, EC-760ZP-V
![](https://asset.fujifilm.com/www/mm/files/2020-08/04b2df594cc2705e39240a99bb075c0f/pic_colonoscope_ec760_3.png)
![](https://asset.fujifilm.com/www/mm/files/2020-08/409154285bbc31b5e0da70f431cdd792/pic_colonoscope_ec760.png)
![](https://asset.fujifilm.com/www/mm/files/2020-08/db76a96aa8906a4d9fa0e841d31548c7/pic_colonoscope_EC-760ZP-V.png)
- Viewing direction
0°(Forward)
- Field of view
Normal: 140° / Closest: 56°
- Observation range
1.5-100mm
Normal: 3-100mm
Closest: 1.5-2.5mm- Distal end diameter

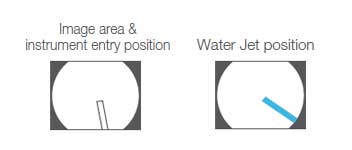

EC-760Z-V
12.8mmEC-760ZP-V
11.7mm- Insertion tube diameter
EC-760Z-V
12.8mmEC-760ZP-V
11.8mm- Minimum diameter of instrument channel
EC-760Z-V
3.8mmEC-760ZP-V

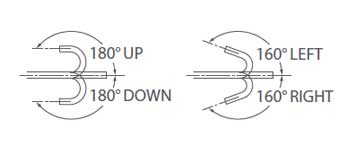

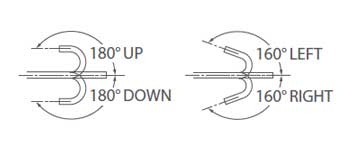

3.2mm- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160- Working length
EC-760Z-V/M,L
1,330mm / 1,690mmEC-760ZP-V/M,L
1,330mm / 1,690mm- Total length
EC-760Z-V/M,L
1,650mm / 2,010mmEC-760ZP-V/M,L
1,650mm / 2,010mm- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
![](https://asset.fujifilm.com/www/mm/files/2020-08/0d897f91352c9ecf16d52522b5c2c7aa/fig_eg760zpv.png)
![](https://asset.fujifilm.com/www/mm/files/2020-08/0506ab6c27c7074dfe8b0b27942b6bda/fig_colonoscope_02.jpg)
![](https://asset.fujifilm.com/www/mm/files/2020-08/51073081331b6a8b05460817aeaa3a2f/fig_eg760zp_pic2.png)

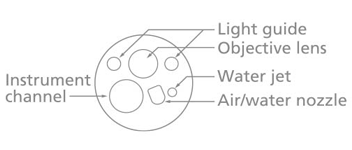

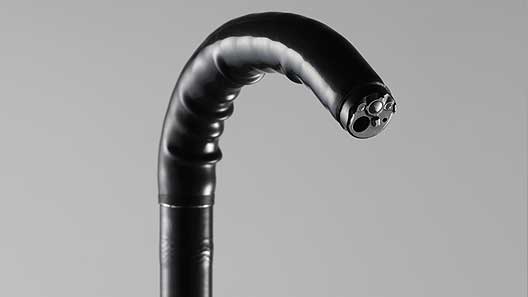

EC-720R
![](https://asset.fujifilm.com/www/mm/files/2020-08/3d6c5599f0cf99af62931d2b5e13da40/pic_colonoscope_ec720_1.png)
![](https://asset.fujifilm.com/www/mm/files/2020-08/dfb6b53325949efe645c506c99cd07bd/pic_colonoscope_ec720_3.png)
![](https://asset.fujifilm.com/www/mm/files/2020-08/f2d36217c10202c820a73d6f9f7bdfcb/pic_colonoscope_ec720_2.png)
- Viewing direction
0° (Forward)
- Field of view
170°
- Observation range
2-100mm
- Distal end diameter
12.8mm
- Insertion tube diameter
12.8mm
- Minimum diameter of instrument channel
3.8mm

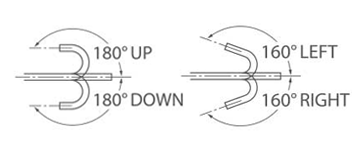

- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°- Working length
EC-720R/M
1,330mmEC-720R/I
1,520mmEC-720R/L
1,690mm- Total Length
EC-720R/M
1,630mmEC-720R/I
1,820mmEC-720R/L
1,990mm- Water Jet
Available
- Product: Video Endoscope
- GMDN: 36117
- Generic name: Flexible video colonoscope, reusable
