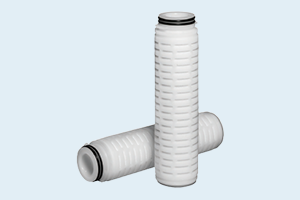

[photo] Three microfilter cartridges, one standing upright and two laid down

Pleated Filter Cartridges
^AstroPore - Product Lineup

Cartridge type that satisfies the demands of a wide variety of customers from food and beverage industry to electronics industry.

Downloads Contact Us

Product Lineup Membrane Material (Filter type)

Polysulfone (Absolute type)

Cartridge Type	Feature	Pore size （μm）	Outer Diameter （mm）	Length （inch）
PSE Cartridge W	Standard type that meets various needs over a wide area. Applications Semiconductor, General Electronics, LCD, Chemicals, Uility Water	0.1 0.2 0.45 0.8 1.2	70	10 20 30 40
PSF Cartridge	Filter aimed for food and beverage for the removal of microorganisms and fine particles. Applications Food and Beverage, Pharmaceutical	0.2 0.45	70	10 20 30 40
PSK Cartridge	Specified cartridge, which pore size distribution is adjusted for food and beverage industry, such as beer breweries and wineries. Applications Beer, Wine	0.45 0.65 1.2	70	10 20 30 40
PSS03 Cartridge	Smallest pore diameter type that removes particles as small as 0.03 µm. Applications Semiconductor, General Electronics, LCD, Chemicals, Uility Water	0.03	70	10 20 30
PSE05 Cartridge	Minute pore diameter type that removes particles as small as 0.05 µm. Applications Semiconductor, General Electronics, Chemicals	0.05	70	10 20 30
PSE Cartridge L Type	Standard size with high flow rate due to its bigger membrane area. Applications Semiconductor, General Electronics, LCD, Chemicals, Utility Water	0.1 0.2 0.45 0.8 1.2	70	10 20 30
PSE Cartridge XL Type	High flow rate type with bigger membrane area and outer diameter of 81.5mm. Applications LCD/TFT, LCD/Glass, LCD/CF, Semiconductor, General Electronics, Chemicals	0.1 0.2 0.45 1.2	81.5	10
PSE Cartridge UXL/SXL Type	High flow rate type with bigger membrane area and outer diameter of 130mm. Applications LCD/TFT, LCD/Glass, LCD/CF	0.1 0.2 0.45 1.2	130	10

Download Catalog

Polysulfone (Capsule filter)

Cartridge Type	Feature	Pore size （μm）	Outer Diameter （mm）	Length （inch）
PSE Capsule	Compact capsule type with high flow rate. Can be used as a disposable filter. Applications LCD/TFT, Semiconductor, General Electronics	0.1 0.2 0.45	93.5 （Capsule）	152mm（Q）（Capsule） 210mm（H）（Capsule）

Polyproplyene (Nominal type)

Cartridge Type	Feature	Pore size （μm）	Outer Diameter （mm）	Length （inch）
PPE Cartridge	Standard type of nominal filter made of non-woven polypropylene fabric. Applications Beer, Wine, Mineral water, Dairy Products, Raw/Utility water, LCD, Semiconductor, General Electronics, Chemicals	0.4 0.5 1.0 3.0 10 30	70	10 20 30
PPE Cartride UXL Type	Extra-high flow rate type made of non-woven polypropylene fabric. Supports the manufacturing of LCD panels. Applications LCD/TFT, LCD/Glass, LCD/CF	2.5 4.5 10 20	131	10

PTFE (Air vent filter)

Cartridge Type	Feature	Pore size （μm）	Outer Diameter （mm）	Length （inch）
FLF Cartridge	Hydrophobic PTFE membrane type. Ideal for air vent. Applications Dairy Products	0.2	70	10 20
