Housing for M-type cartridges (standard type made of stainless steel).

Support
Overview Housing for M type cartridges (standard type made of stainless steel)

  • Can be used widely for general applications.

  • A wide variety of types are available.

  • Applicable elements: M type cartridge (AS568 222 O-ring type, SOE: Single Open End)

  • * Various types of adapters and optional parts are available.
  • * Customized design and manufacturing services are available for applications that require other than those standard specifications type. Contact us for consultation on large size housings and housings with special specifications.
Specifications
Main specifications
Pressure resistance

0.49MPa

Heat resistance

Lower than 100℃

Material

Main body: SUS304 stainless steel (for 3 cartridges, for 6 cartridges)
/ SUS316 stainless steel (for 1 cartridge)
Packing: silicone (standard)

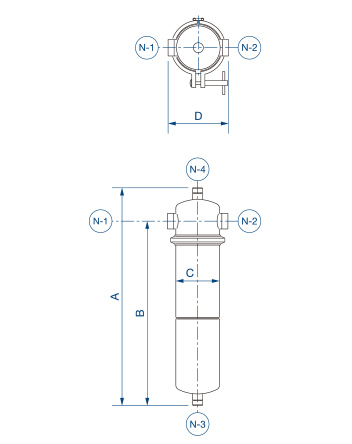

Outline dimensions / Diameter Number of cartridges fitted: 1



Type

FSM1-1 20PA

FSM1-2 20PA

FSM1-3 20PA

A (mm)

431

685

939

B (mm)

365

619

873

C (mm)

φ86.6 (Outer diameter)

D (mm)

120

N-1   Inlet

Rc3/4
(20A)

N-2   Outlet

N-3   Drain

G1/4 (8A)
(Plug with a roulette)

N-4   Vent

Pressure gauge   Nozzle

-

Number of cartridges
(Equivalent to 250 mm in length)

1

2

3

Operating weight (approx. weight in kg)

3.5

5.5

 7.5

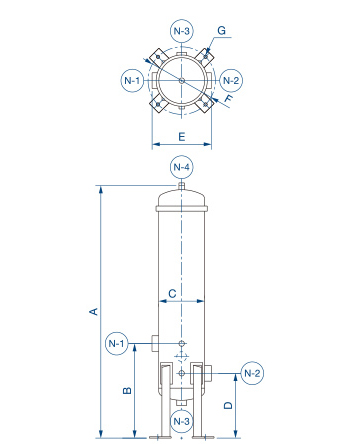

Number of cartridges fitted: 3



Type

FSM3-2 40PA

FSM3-3 40PA

A (mm)

935

1185

B (mm)

350

350

C (mm)

φ170 (Outer diameter)

D (mm)

240

E (mm)

220

F (mm)

250

G (mm)

4-φ12

N-1   Inlet

Rc1-1/2
(40A)

N-2   Outlet

N-3   Drain

Rc3/4 (20A)

N-4   Vent

G1/4 (Plug with a roulette)

Pressure gauge   Nozzle

Rp1/4 (8A)

Number of cartridges
(Equivalent to 250 mm in length)

6

9

Operating weight (approx. weight in kg)

28

35

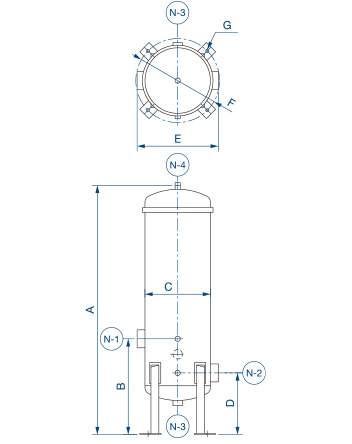

Number of cartridges fitted: 6



Type

FSM6-2 50PA

FSM6-3 50PA

A (mm)

950

1200

B (mm)

365

365

C (mm)

φ250 (Outer diameter)

D (mm)

235

E (mm)

310

F (mm)

320

G (mm)

4-φ12

N-1   Inlet

Rc2
(50A)

N-2   Outlet

N-3   Drain

Rc3/4 (20A)

N-4   Vent

G1/4 (Plug with a roulette)

Pressure gauge   Nozzle

Rp1/4 (8A)

Number of cartridges
(Equivalent to 250 mm in length)

12

18

Operating weight (approx. weight in kg)

55

70
  • * For details on the methods of use, refer to the instruction manual included with the product.
  • * The housing may be built to order in terms of shape and size. For details, contact your sales agent.
  • * Specifications are subject to change for improvement purposes without prior notice.
