Application examples
Main use cases
1. Nip pressure
There are examples of Calender rolls, Rubber roller mounting, Size press rubber rolls, etc.
2. Lamination pressure
There are examples of Dry film resist (DFR) lamination, Backgrind tape lamination roller, Electrophotographic heat fixing parts, etc.
3. Winding pressure
There is an example of Roll product winding.
4. Contact pressure
There is an example of Brake pads (disk brakes).
5. Compression pressure
There are examples of Vacuum heat pressure devices, Vacuum laminator, Stacking or laminating machines for multilayer ceramic devices, etc.
6. Contact conditions
There are examples of Heat sealing, CMP polishing head, Suction jig for die bonding, etc.
7. Squeegee pressure
There is an example of Squeegee pressure distribution during cream soler printing.
8. Tightening pressure
There is an example of Cylinder head gaskets.
9. Impact pressure
There is an example of The peak impact pressure and its distribution of a ball of softball
Main industry case studies
1. Automobile
There are examples of Cylinder head gaskets, Brake pads, Injection molding machines or molds, Stacking or laminating machines for multilayer ceramic devices, etc.
2. Semiconductor
There are examples of CMP polishing, Backgrind tape lamination roller, Suction jig for die bonding, etc.
3. Printed circuit boards (PCB)
There are examples of Rubber roller mounting, Squeegee pressure distribution during cream solder printing, Dry film resist (DFR) lamination, etc.
4. Electronics
There are examples of Rubber roller mounting, Squeegee pressure distribution during cream solder printing, Dry film resist (DFR) lamination, etc.
5. Flat-panel displays
There are examples of Rubber roller mounting, Dry film resist (DFR) lamination, Fuel cell stacks and assembly of mobile phones, etc.
6. Battery (PV/FC/LiB)
There are examples of Vacuum laminaor, Cell lamination, Sealing aluminum, etc.
7. Packaging (food/pharmaceutical)
There are examples of Heat sealing, Rubber roll mounting, Molding, etc.
8. Highly functional films
There are examples of Calender roll, Winding, Molding, etc.
9. Other uses
There are examples of Calender roll, Winding, Rubber roller, etc.

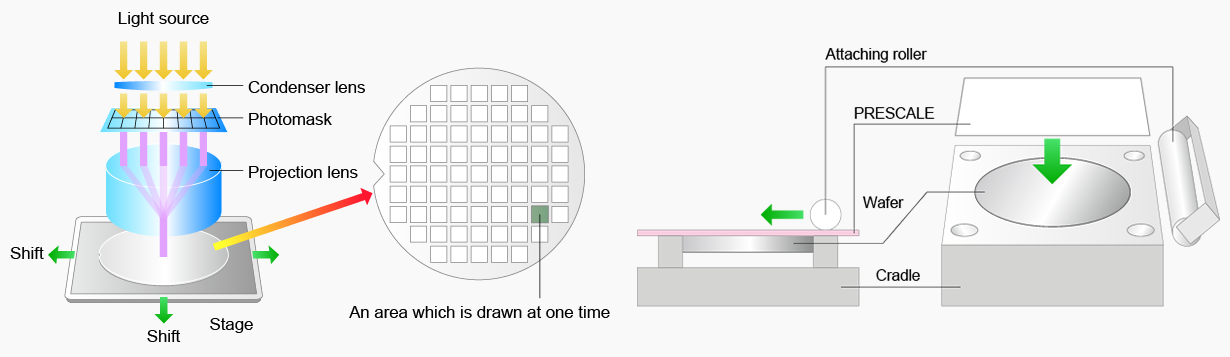

New and detailed application example of semiconductor or its manufacturing equipments.
Comprehensive catalog
General brochure
This is a General brochure providing a brief introduction to Prescale. Information such as usage, types of Prescale, strucre, principle and features are written.
![](https://asset.fujifilm.com/www/it/files/2021-03/3c56e0a8abda14694fae8b22db5a2b74/img_download01.png)
Applications for food and pharmaceutical industries
This is a brochre providing applications in food and pharmaceutical industry.
![](https://asset.fujifilm.com/www/it/files/2021-03/93879ac3b7a3c019f438c24435777b57/img_download02.png)
Applications for Smartphones and tablet computers industries
This is a brochure providing applications for Smartphones and Tablet Computers.
![](https://asset.fujifilm.com/www/it/files/2021-03/f3756d1d208eb92fb035f8dc738243ba/img_download03.png)
Applications for automobile industries
This is a brochure providing applications for automotive industry.
![](https://asset.fujifilm.com/www/it/files/2021-03/a7e5e3203ad93726a54adfa5d9371b7c/img_download04.png)

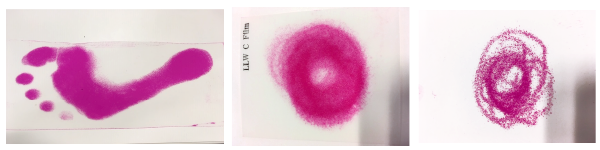

Prescale have been used in many applications. Let us introduce some of the rare usages.
