ENG/EFP Portable Lens System Configuration
Full-Servo Control Kit (Servo Focus/ Servo Zoom]
SS-13A

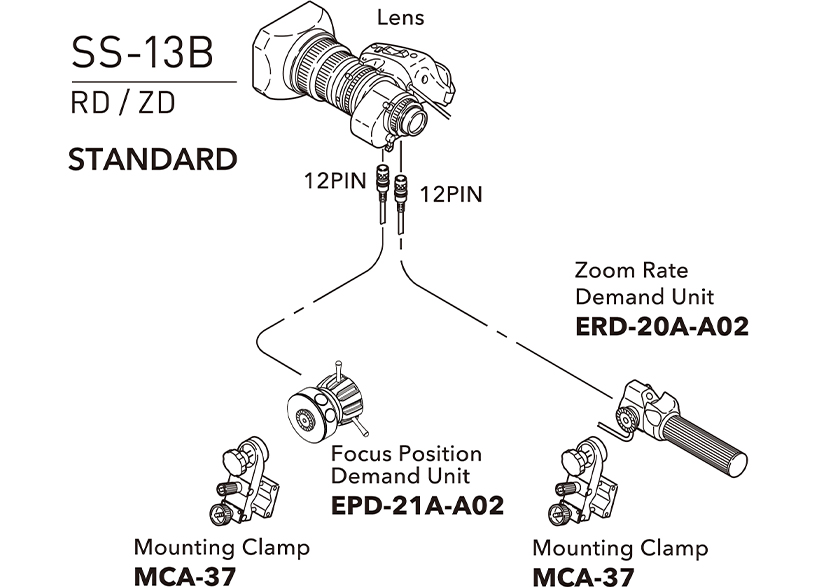

RD/ ZD , STANDARD
SS-15D
RD/ ZD , DIGIPOWER

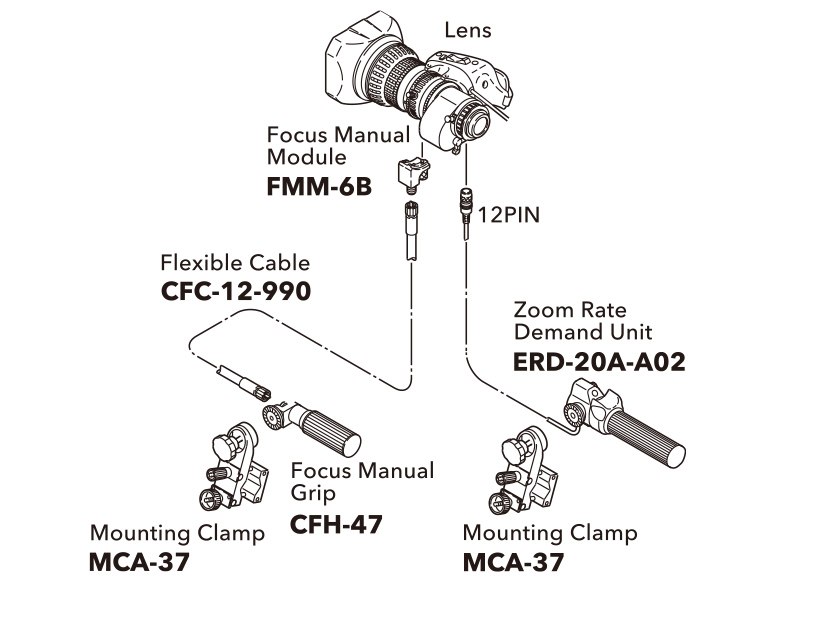

Semi-Servo Control Kit (Manual Focus/ Servo Zoom)
MS-13A
RM/ZM , STANDARD
MS-15D
RM/ZM , DIGIPOWER
Control Accessories Compatibility (Premier Series, Select Series and Broadcast Lenses)
Description | Model Name | RM | RD/ZD | ||
---|---|---|---|---|---|
Focus | Manual | Focus Grip | CFH-47 | ● | ● |
Mounting Clamp | MCA-37 | ● | ● | ||
Flexible Cable | CFC-12-990 | ● | ● | ||
Focus Manual Module | FMM-6B | ● | ● | ||
FMM-3D (for 46x series, 42x series) | ● | ||||
FMM-9 (for UA22x8) | ● | ||||
Servo | Digital Focus Position Demand Unit | EPD-41A-D01 / D02 | ● | ||
Mounting Clamp | MCA-37 | ● | |||
Focus Position Demand Unit | EPD-21A-A01 / A02 | ● | ● | ||
Mounting Clamp | MCA-7 | ● | ● | ||
Focus Servo Position Module | FSP-13G | ●*1 | |||
Zoom | Servo | Digital Zoom Rate Demand Unit | ERD-40A-D01 | ● | ● |
Mounting Clamp | MCA-37 | ● | |||
Zoom Rate Demand Unit | ERD-20A-A02 | ● | ● | ||
Mounting Clamp | MCA-7 | ● | ● | ||
Other | VTR Contorl Unit | VRS-20 | |||
Return Control Unit | EXT-30 | ||||
Lens Supporter | ALH-127A-01A ( for 46x series,for 42x series) | ||||
External OS-TECH Adapter | TS-P58A (HA14,HA18,HA22,HA23,HA25,HA42) | ||||
OS-TECH Control Unit | EA-12A-03BA | ||||
Extention Cable For Focus Position Demand Unit/Zoom Rate Demand Unit |
ECE-1000 (1m) / -2000 (2m) / -3000 (3m) -4000 (4m) / -5000 (5m) / -10000 (10m)*2 |
||||
Cable for Lens⇔PC | SA-206D-005 / SA-206A-005*3 | ||||
2x Extender Change Unit (Motor Drive) | ECU-2C | ||||
ECU Adapter(for UA22x) | ECU-1AD | ||||
ECU Adapter(for UA13x) | ECU-2AD |
Digital Zoom Demand
ERD-40A-D01
DIP No. | Function | |
---|---|---|
AUX1 | 1-1 | OIS(Alternate) |
1-2 | Preset Zoom | |
1-3 | Preset Z+F | |
1-4 | EXT | |
1-5 | INCOM(ENG) | |
1-6 | INCOM(PD) | |
Zoom Mode Switch |
1-7 | Z curve select |
1-8 | Z curve select | |
RET2/AUX SEL | 2-1 | RET2 ⇔ AUX2 |
RET1 | 2-2 | ON/OFF |
RET2 | 2-3 | ON/OFF |
AUX2 | 2-4 | VTR(REC) |
2-5 | EXT | |
2-6 | INCOM(ENG) | |
2-7 | INCOM(PD) | |
2-8 | OIS(Alternate) |
Digital Focus Demand
EPD-41A-D01/ D02
DIP No. | Function | |
---|---|---|
AUX1 | 1 | RET1 |
2 | AUX1 ⇔ AUX2 | |
AUX2 | 3 | RET2 |
4 | OIS | |
5 | PRESET |
eXceed Series System Configuration
MS-01
RM
SS-01
RM
MS-X1
For XA16x8
Control Accessories Compatibility
Description | Model Name |
RM |
||
---|---|---|---|---|
Standard | ||||
Focus | Manual | Focus Grip | CFH-3 | ● |
Flexible Cable | CFC-12-990 | ● | ||
Focus Manual Module | FMM-6B | ● | ||
FMM-X1(for XA 16x8} | ● | |||
Servo | Focus Servo Module | FSM-30B | ● | |
Focus Position Demand Unit | FSD-11 | ● | ||
Zoom | Servo | Zoom Rate Demand Unit | SRD-92B | ● |
Other | VTR Control Unit | VRS-2 | ||
Extention Cable For Focus Servo Demand Unit | ECA-1000(1m) / -5000(5m) / -10000(10m)*4 | |||
Extention Cable For Zoom Rate Demand Unit | ECC-1000(1m) / -5000(5m) / -10000(10m)*4 | |||
For 12PIN Lens Cable | ECE-R22 |
