[photo] Lower G.I. scope flexible end and control portion

Colonoscopes

Lower G.I. tract scope line up support wide range of examinations and treatments.

The content on this page is intended to healthcare professionals and equivalents.

ELUXEO EI-740D/S

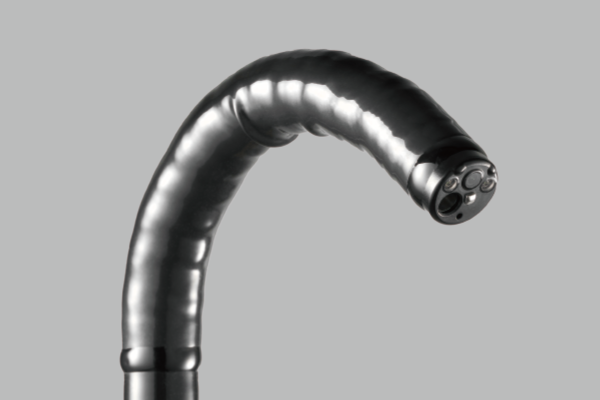

Image of the bending section to the tip portion of EI-740D/S

Tip image of EI-740D/S

Image showing the bending shape of EI-740D/S

Field of view: 140°
Viewing direction: 0°(Forward)
Observation range: 3~100 mm
Bending capability: UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°
Working length: 1,030 mm
Total length: 1,330 mm
Distal end diameter: 12.8 m
Insertion tube diameter: 12.8 m
Minimum instrument channel diameter: 3.7/3.2 mm
Image size: Super image

Product name: Video Endoscope
GMDN: 64920
Generic name: Flexible upper/lower gastrointestinal endoscope

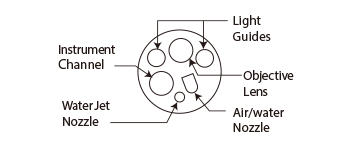

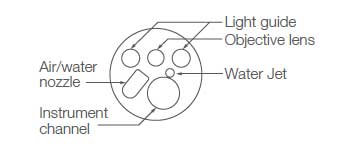

Diagram showing the tip layout of EI-740D/S.

Diagram showing the range of up/down bending.／Diagram showing the range of right/left bending.

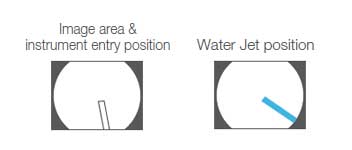

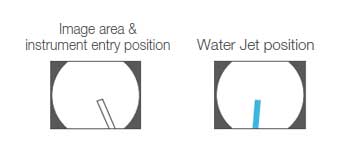

Diagram showing how therapeutic devices appear on endoscopic image.／Diagram showing how water jet appears on endoscopic image.

EC-600WM, EC-600WI, EC-600WL

[photo] Lower G.I. scope

[photo] Tip of scope, with functioning parts

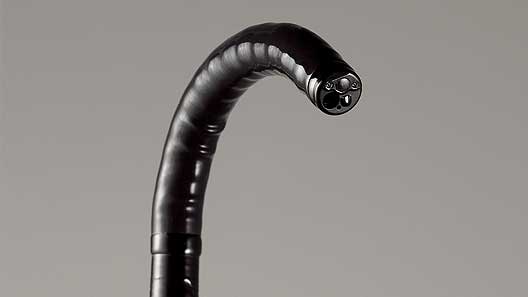

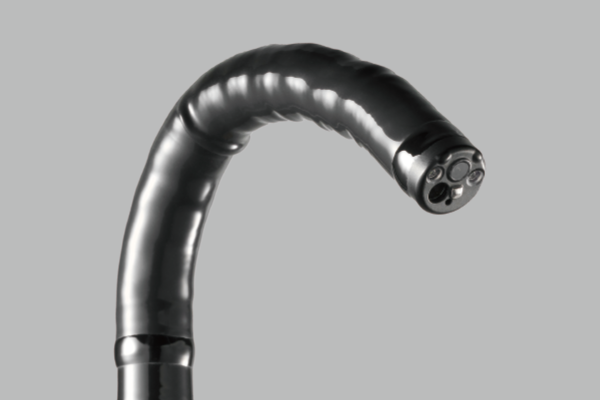

[photo] Flexible tip of scope bent downward with forceps sticking out

Viewing direction: 0°(Forward)
Field of view: 140°
Observation range: 2-100 mm
Distal end diameter: 12.0 mm
Insertion tube diameter: 12.0 mm
Minimum diameter of instrument channel: 3.8 mm
Bending capability: UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°
Working length: 1,330 mm（M） / 1,520 mm（I） / 1,690 mm（L）
Total length: 1,630 mm（M） / 1,820 mm（I） / 1,990 mm（L）
Water Jet: Available

Product: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

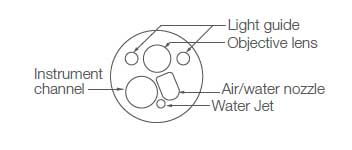

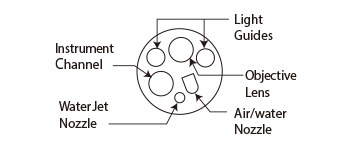

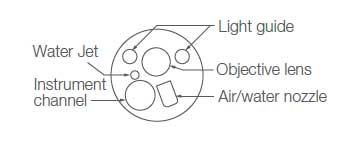

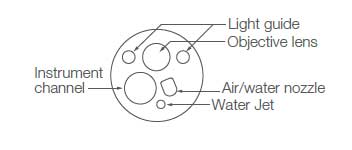

[image] Tip of endoscope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet

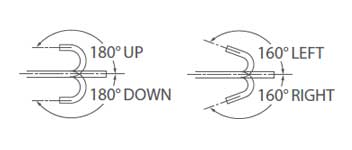

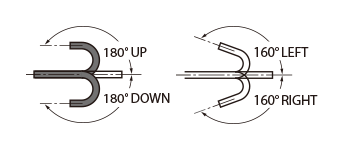

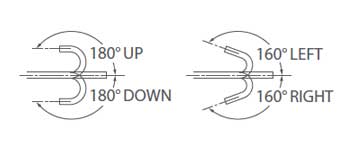

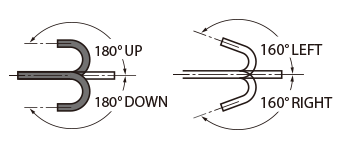

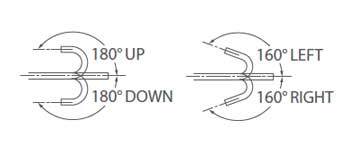

[image] Scope moves 180 degrees up/down, 160 degrees left/right flexible angles

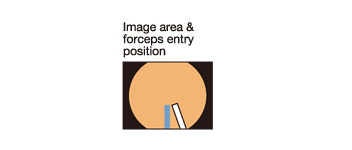

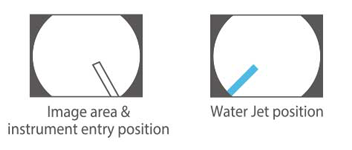

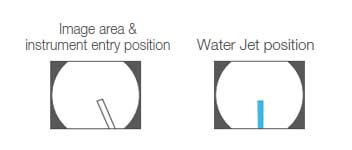

[image] Image area & forceps entry position

EC-600ZW/M, EC-600ZW/L

[photo] Lower G.I. scope

[photo] Tip of scope, with functioning parts

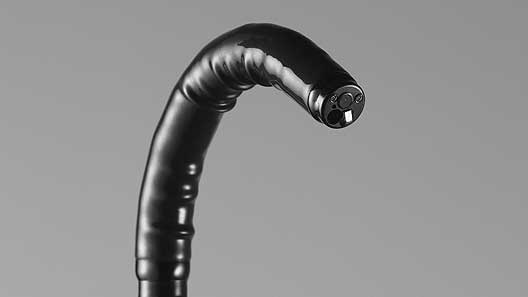

[photo] Flexible tip of scope bent downward with forceps sticking out

Viewing direction: 0°(Forward)
Field of view: Normal: 140° / Closest: 56°
Observation range: 1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm
Distal end diameter: 12.8mm
Insertion tube diameter: 12.8mm
Minimum diameter of instrument channel: 3.8mm
Bending capability: UP 180° / DOWN 180°
RIGHT 160° / LEFT 160
Working length: 1,330 / 1,690 mm
Total length: 1,630 / 1,990 mm

Product: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

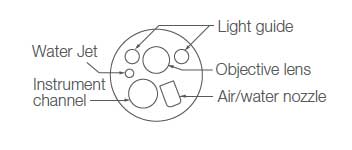

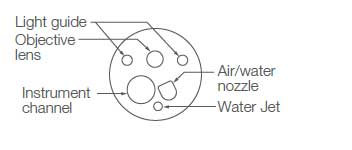

[image] Tip of endoscope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet

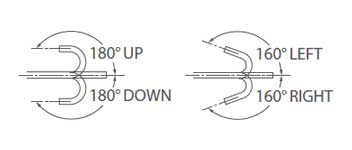

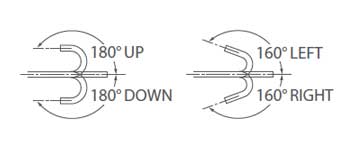

[image] Scope moves 180 degrees up/down, 160 degrees left/right flexible angles

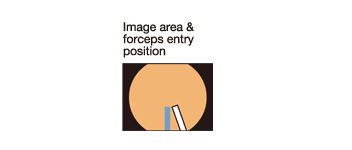

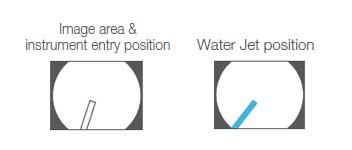

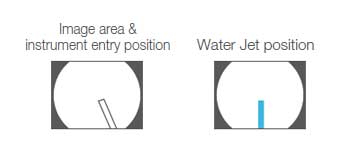

[image] Image area & forceps entry position

EC-580RD/M, EC-580RD/L

[photo] Tip of scope, with functioning parts

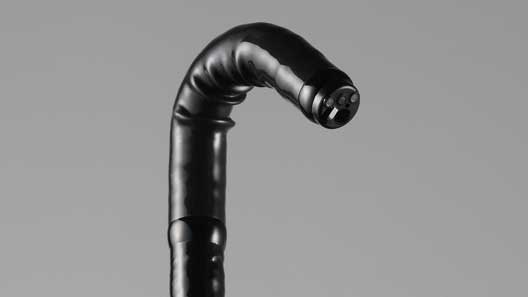

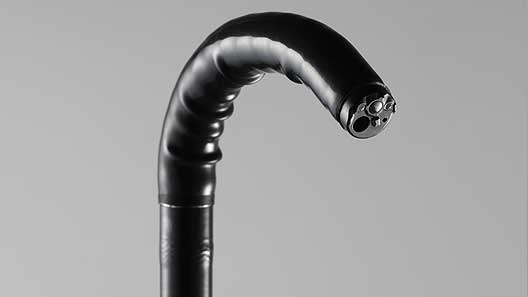

[photo] Flexible tip of scope bent downward to the side

Viewing direction: 0°(Forward)
Field of view: 140°
Observation range: 3-100mm
Distal end diameter: 9.8mm
Insertion tube diameter: 10.5mm
Minimum diameter of instrument channel: 3.2mm
Bending capability: UP 210° / DOWN 160°
RIGHT 160° / LEFT 160°
Working length: EC-580RD/M
1,330mm
EC-580RD/L
1,690mm
Total length: EC-580RD/M
1,630mm
EC-580RD/L
1,990mm
Water Jet: Available

Product: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

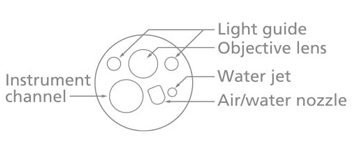

[image] Tip of endoscope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet

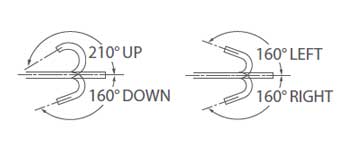

[image] Scope moves 210 degrees up/ 160 degrees down, 160 degrees left/right flexible angles

[image] Image area & forceps entry position

* Specifications and appearance of products are subject to change without notice.
* Language of indications on products varies by country and region.
* Products comply with regulations of the country or region where they are marketed.
