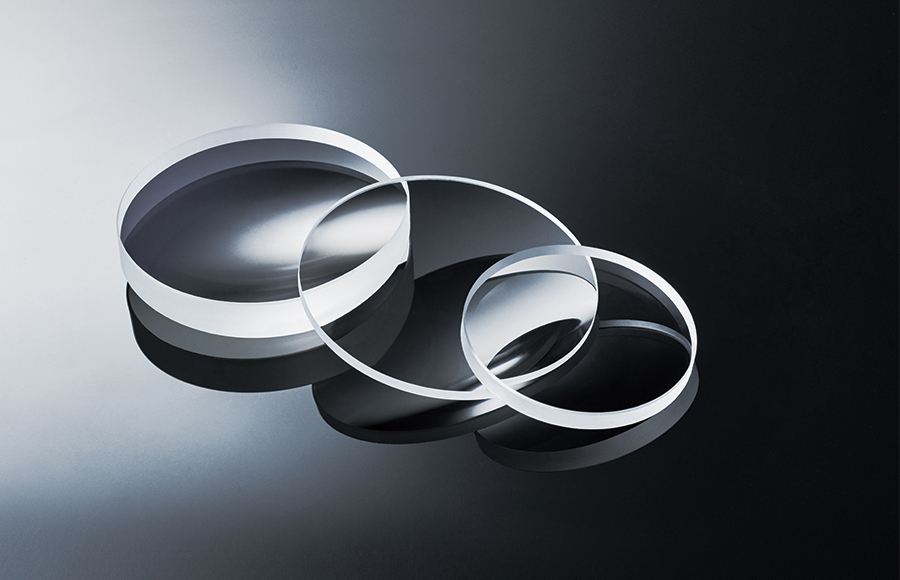

All lenses and prisms boast high-quality EBC multi-coating, increasing light permeability for bright, natural color reproduction.
Highly waterproof and extremely durable body, enabling use in harsh conditions from -20℃ to +50℃.
Lineups

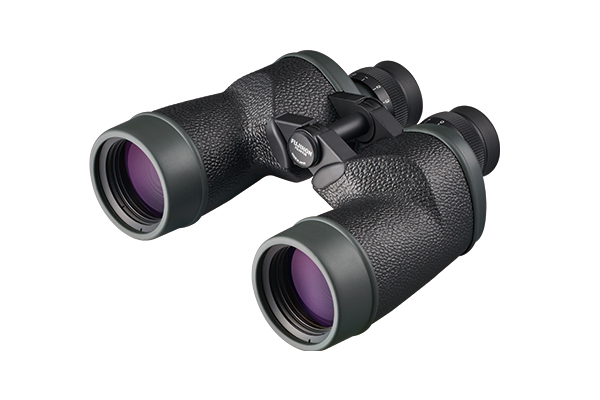

7×50MTR-SX
- All lenses and prisms boast high-quality EBC multi-coating, increasing light permeability for bright, natural color reproduction.
- Highly waterproof and extremely durable body, enabling use in harsh conditions from -20℃ to +50℃.
Specifications
- Magnification
7
- Objective diameter (mm)
50
- Field of view (°)
7.5
- Apparent field of view (°) *1
49.3
- Field of view at 1000m (m)
131
- Exit pupil
7.1
- Relative Brightness
51
- Eye relief (mm)
12
- Minimum Focus Distance (m) *2
9.8
- Height (mm)
187
- Width (mm)
218
- Depth (mm)
78.5
- Weight (g)
(w/o Battery) 1,300
- Adustment range for interpupillary distance (mm)
56-74
- Dioptric adjustment range (±mm)
±5
- Focus type
IF
- Water resistant*3
2m-5min
- Battery
-
- Operationg temperature
−20℃ - +50℃
7×50MTRC-SX (Built-in compass)
- All lenses and prisms boast high-quality EBC multi-coating, increasing light permeability for bright, natural color reproduction.
- Highly waterproof and extremely durable body, enabling use in harsh conditions from -20℃ to +50℃.
- The 7x50MTRC-SX has a built-in compass with maximum error of ±0.5°. The scale can be used to identify the object's direction, measure distance, and determine the size of a target object. The compass is global, accurately measuring direction in both northern and southern hemispheres.
Specifications
- Magnification
7
- Objective diameter (mm)
50
- Field of view (°)
7.5
- Apparent field of view (°) *1
49.3
- Field of view at 1000m (m)
131
- Exit pupil
7.1
- Relative Brightness
51
- Eye relief (mm)
12
- Minimum Focus Distance (m) *2
9.8
- Height (mm)
187
- Width (mm)
218
- Depth (mm)
93
- Weight (g)
(w/o Battery) 1,360
- Adustment range for interpupillary distance (mm)
56-74
- Dioptric adjustment range (±mm)
±5
- Focus type
IF
- Water resistant*3
2m-5min
- Battery
-
- Operationg temperature
−20℃ - +50℃

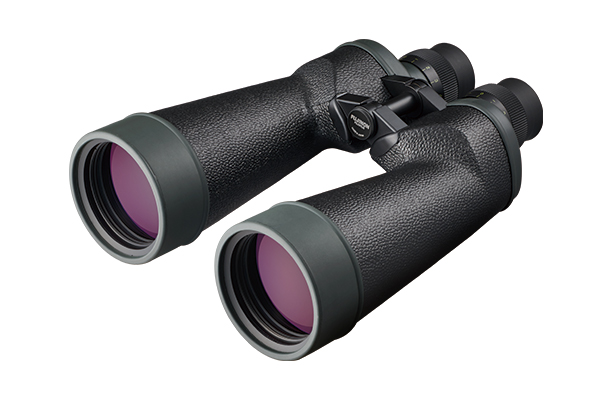

10×70MTR-SX (NEW)
- All lenses and prisms boast high-quality EBC multi-coating, increasing light permeability for bright, natural color reproduction.
- Highly waterproof and extremely durable body, enabling use in harsh conditions from -20℃ to +50℃.
Specifications
- Magnification
10
- Objective diameter (mm)
70
- Field of view (°)
5.3
- Apparent field of view (°) *1
49.7
- Field of view at 1000m (m)
93
- Exit pupil
7
- Relative Brightness
49
- Eye relief (mm)
12
- Minimum Focus Distance (m) *2
20
- Height (mm)
269
- Width (mm)
238
- Depth (mm)
88.5
- Weight (g)
(w/o Battery) 1,880
- Adustment range for interpupillary distance (mm)
56-74
- Dioptric adjustment range (±mm)
±5
- Focus type
IF
- Water resistant*3
2m-5min
- Battery
-
- Operationg temperature
−20℃ - +50℃
Bundeled item: Objective lens caps, eyepiece rainguard, softcase and neck strap.
