Revoria Press EC2100S / EC2100 : Features

PRINT. CREATIVELY.PRINT. PRODUCED.PRINT. INTELLIGENTLY.PRINT. FLEXIBLY.

PRINT. CREATIVELY. - Unleash creativity and create new value

CMYK+ specialty toner print engine

Specialty toners are available in gold, silver, clear, pink, and textured paper toner.^*1 One specialty toner can be used in addition to CMYK for overprinting. Unique patented technology improves productivity, image quality, and paper versatility performance with the press in a compact size.

CMYK + Silver

CMYK + Clear

CMYK + Pink

Master specialty toner with a full range of support functions

Automatic pink toner optimization to realize wider colour gamut and smooth skin tone^*2.
Specialty Colour Quick Viewer (SCQV) allows user to preview the effect of specialty colours as well as different substrates before printing.
Users can quickly change to a specific specialty colour without special skills.

Fujifilm Metallic Swatches

Proprietary technology for CMYK high image quality

Super EA^*3-Eco toner (CMYK)

Features high-quality Super EA-Eco toner identical to those used in our high-end models.
Toner particle size has been reduced to among the smallest in the industry, and toner particle shape standardized for crisp rendering of detailed characters and fine lines.
Gradations, such as halftones, are reproduced more smoothly and beautifully for more even blue skies and skin tones.

2,400 x 2,400 dpi LED printhead

Thanks to our unique technology, the compact, high-image-quality LED printhead delivers high-resolution output at up to 2,400 x 2,400 dpi for sharp lines and images, enabling high-definition printing.

*1 Availability of Gold and Silver will be announced later.
*2 Available in Revoria Frow
*3 EA : Emulsion Aggregation

PRINT.PRODUCED. - Making productivity and print quality work together

100 ppm high productivity

Realize top speed for both uncoated paper (52-400 gsm) and coated paper (72-400 gsm).
High-productivity A3 printing at 55 ppm.
The compact belt-roll fuser that enables efficient heating achieves high productivity and high image quality on wide variety of paper stocks including heavyweight.

Calibration for G7 standard^*4

G7 calibration achieves consistent gray balance and neutral tonality across different printing processes, substrates, and printing conditions. A standard that is widely adopted in the printing industry to ensure colour consistency and quality across various printing technologies and platforms.

Note: G7^® is Idealliance’s global industry-leading set of specifications for achieving visual similarity across all print processes.
*4 G7 certified the combination with Revoria Flow Print Servers.

High resolution-, high productivity-ready print server

1,200 x 1,200 dpi RIP processing reproduces images with their original vivid quality. Even fine text and lines can be reproduced at 1,200 dpi resolution.
High-precision 3D calibration and feedback functions ensure consistent colour reproduction.
Different-sized data can be imposed at any desired position for more efficient use of banner sheets and reduced paper waste.

PRINT.INTELLIGENTLY. - Supporting your business growth

Real-time detection and correction during printing^*5

Automatic detection and correction of colour density variations and front-to-back misalignments during printing.
Optimization continues throughout the printing process, with little to no decrease in print speed.

Image of real-time detection and collection functions

AI correction (available in Revoria Flow)

AI automatically identifies the scene per photo, applies appropriate image correction, and prints them beautifully.

*5 Smart Monitoring Gate D1

PRINT. FLEXIBLY. - More printing possibilities than ever before

Offer better solutions thanks to reliable technologies that enable a wide variety of paper sizes and post-processing.
Supports a wide range of paper sizes, from a minimum of 90 x 146 mm up to 330 x 660 mm, with optional banner sheet printing (single-sided) up to 330 x 1,300 mm.
Paper weights flexibility from lightweight 52 gsm to heavyweight 400 gsm.

Print sample "A wide variety of paper sizes and post-processing"

Folding carton and label sticker
Printing on envelopes with a minimum paper width of 90 mm
Printing on water-resistant paper for menu lists
Supports banner sheet sizes up to 330 x 1,300 mm.

Technology that keeps you ready for anything

Print beautifully even on textured paper

The intermediate transfer belt ensures reliable, high-quality output even on typically difficult-to-print textured media, such as embossed papers.

Removes static electricity for stable paper handling^*6

Enables stable paper handling.
Protect operators safely from high amount of static electricity.

Reliable paper feed across various types of paper^*7

The air-suction feed tray, equipped with our proprietary Shuttle Head technology, ensures a reliable feed of papers prone to paper dust accumulation, textured papers, and coated papers that tend to stick together.

*6 Static Eliminator D1
*7 Air Suction Feeder

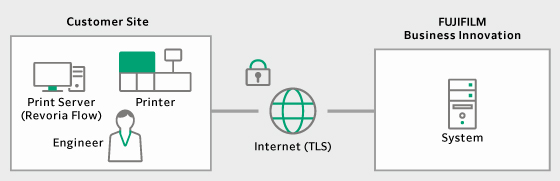

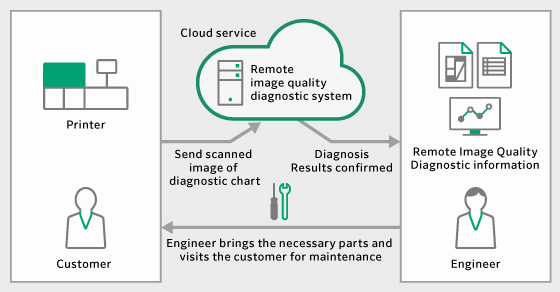

Remote Services^*8 - Reliable Support System

FUJIFILM Business Innovation Remote Services enhance machine reliability, uptime, and productivity, ensuring seamless business operations. Using remote services to connect our support systems and tools with skilled teams worldwide, we deliver responsive assistance precisely when you need it. This proactive approach, supported by in-depth knowledge and comprehensive product understanding, lets us offer the solutions you need.

Seamless one-way communication between your device and our data centre.
Reduce downtime by transmitting machine data to detect and prevent problems.
Automatically report billing meters to save time and improve accuracy.

*8 This support availavility varies depending on the location.
For more information, please consult your assigned sales representative.
