ENG/EFP Portable Lens System Configuration
Full-Servo Control Kit (Servo Focus/ Servo Zoom)
SS-13B
![[image] Schematic of lens connecting to Focus Position Demand Unit and Zoom Rate Demand Unit](https://asset.fujifilm.com/www/in/files/2024-08/1d8f1d9d5e07a127b6fb4cc0692702f7/fig_portablelens_01.jpg)
RD/ ZD , STANDARD
SS-15D
![[image] Schematic of lens connecting to Focus Position Demand Unit and Zoom Rate Demand Unit](https://asset.fujifilm.com/www/in/files/2019-09/bae15b5359e51ec9443e76e1815c4696/fig_portablelens_02.jpg)
RD/ ZD , DIGIPOWER
Semi-Servo Control Kit (Manual Focus/ Servo Zoom)
MS-13B
![[image] Schematic of lens connecting to Focus Manual Module and Focus Manual Grip and Zoom Rate Demand Unit](https://asset.fujifilm.com/www/in/files/2024-08/fbbeb09d0743b8ce64fb9461d6e154e1/fig_portablelens_03.jpg)
RM/ZM , STANDARD
MS-15D
![[image] Schematic of lens connecting to Focus Manual Module and Focus Grip and Zoom Rate Demand Unit](https://asset.fujifilm.com/www/in/files/2019-09/5b73970050e7057fff87d350516eeaa9/fig_portablelens_04.jpg)
RM/ZM , DIGIPOWER
Control Accessories Compatibility (Premier Series, Select Series and Broadcast Lenses)
Category | Description | Model Name | |||
---|---|---|---|---|---|
Focus | Manual | Focus Grip | CFH-47 | ||
Mounting Clamp | MCA-37 | ||||
Flexible Cable | CFC-12-990 | ||||
Focus Manual Module | FMM-6B | ||||
FMM-3D (for 46x series, 42x series) | |||||
Servo | Digital Focus Position Demand Unit | EPD-41A-D01 / D02 | |||
Mounting Clamp | MCA-37 | ||||
Focus Position Demand Unit | EPD-21A-A02 | ||||
Digital Shot Box | ESB-6C-E12B | ||||
Mounting Clamp | MCA-06BC | ||||
Zoom | Servo | Digital Zoom Rate Demand Unit | ERD-40A-D01 | ||
Mounting Clamp | MCA-37 | ||||
Zoom Rate Demand Unit | ERD-20A-A02 | ||||
Other | VTR Contorl Unit | VRS-20 | |||
Return Control Unit | EXT-30 | ||||
Lens Supporter | ALH-127A-01A ( for 46x series,for 42x series) | ||||
External OS-TECH Adapter | TS-P58A (HA14,HA18,HA23,HA25,HA42) | ||||
OS-TECH Control Unit | EA-12A-03BA | ||||
Extention Cable For Focus Position Demand Unit/Zoom Rate Demand Unit |
ECE-1000 (1m) / -10000 (10m) | ||||
2x Extender Change Unit (Motor Drive) | ECU-2C | ||||
ECU Adapter(for UA13x/UA24x with RBF/HP12x) | ECU-2AD |
Digital Zoom Demand
ERD-40A-D01
![[photo] Digital Zoom Demand zoom speed, LEDs for auxiliaries, and torque adjustment](https://asset.fujifilm.com/www/in/files/2019-10/e38c6d3e66454731b7a38d6ed5ae9240/pic_portablelens_03.jpg)
![[photo] Digital Zoom Demand zoom direction, auxiliary 1 and RET 1 & 2](https://asset.fujifilm.com/www/in/files/2019-10/1b06f35b1b5352a33f37140471a186a3/pic_portablelens_04.jpg)
Item | DIP No. | Function |
---|---|---|
AUX1 | 1-1 | OIS(Alternate) |
1-2 | Preset Zoom | |
1-3 | Preset Z+F | |
1-4 | EXT | |
1-5 | INCOM(ENG) | |
1-6 | INCOM(PD) | |
Zoom Mode Switch |
1-7 | Z curve select |
1-8 | Z curve select | |
RET2/AUX SEL | 2-1 | RET2 ⇔ AUX2 |
RET1 | 2-2 | ON/OFF |
RET2 | 2-3 | ON/OFF |
AUX2 | 2-4 | VTR(REC) |
2-5 | EXT | |
2-6 | INCOM(ENG) | |
2-7 | INCOM(PD) | |
2-8 | OIS(Alternate) |
Digital Focus Demand
EPD-41A-D01/ D02
![[photo] Digital Focus Demand Indicator lights, auxiliary 1 & 2, and torque adjustment](https://asset.fujifilm.com/www/in/files/2019-10/4af6fab67804041801f65d3c813b40ab/pic_portablelens_01.jpg)
![[photo] Digital Focus Demand DIP switch, focus direction, and focus mode switch](https://asset.fujifilm.com/www/in/files/2019-10/bc2a3ba003a77833b58320b6790ea9bb/pic_portablelens_02.jpg)
Item | DIP No. | Function |
---|---|---|
AUX1 | 1 | RET1 |
2 | AUX1 ⇔ AUX2 | |
AUX2 | 3 | RET2 |
4 | OIS | |
5 | PRESET |
eXceed Series System Configuration

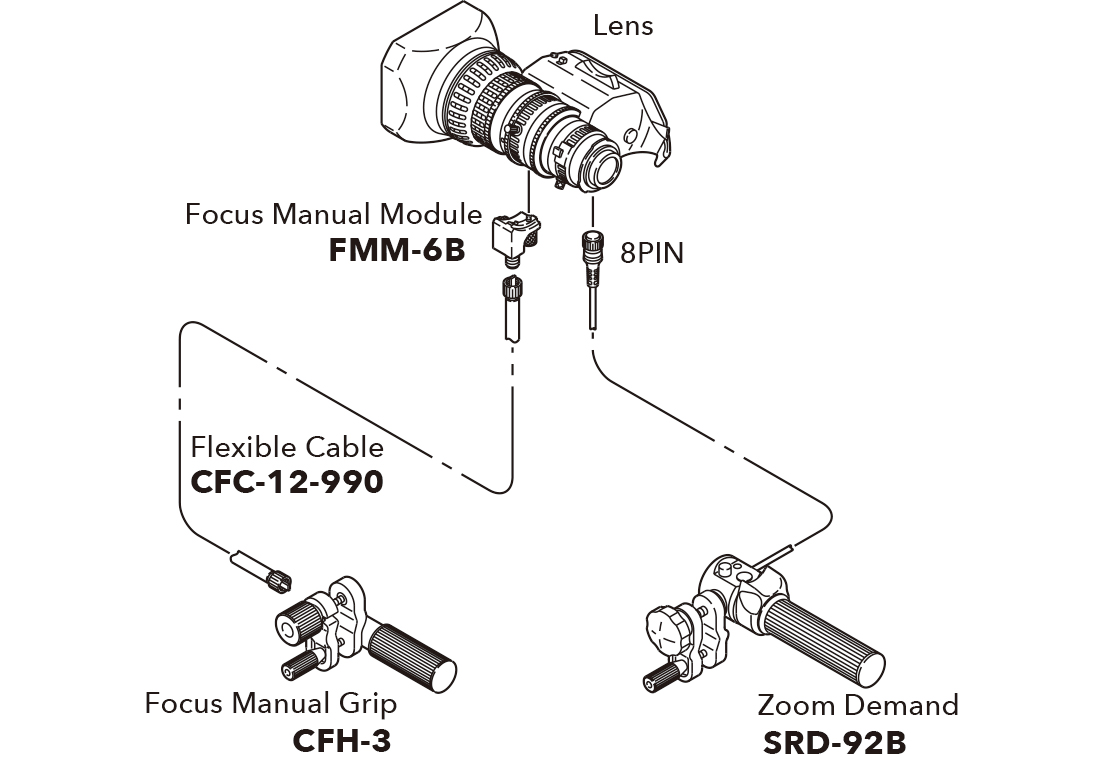

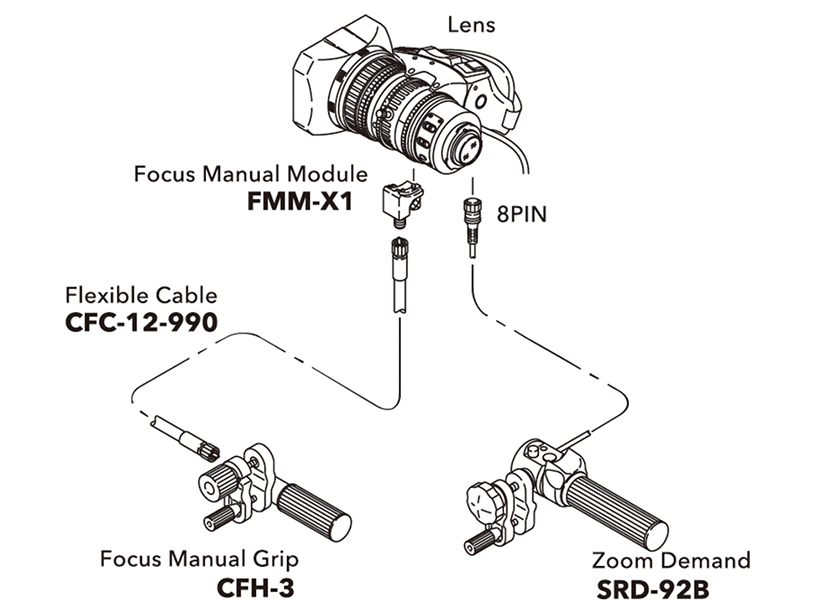

MS-01
![[image] Schematic of lens connecting to Focus Manual Module, Focus Manual Grip, and Zoom Demand](https://asset.fujifilm.com/www/in/files/2019-09/22131f6da4a980c82fe834a5b24665f3/fig_portablelens_05.jpg)
RM

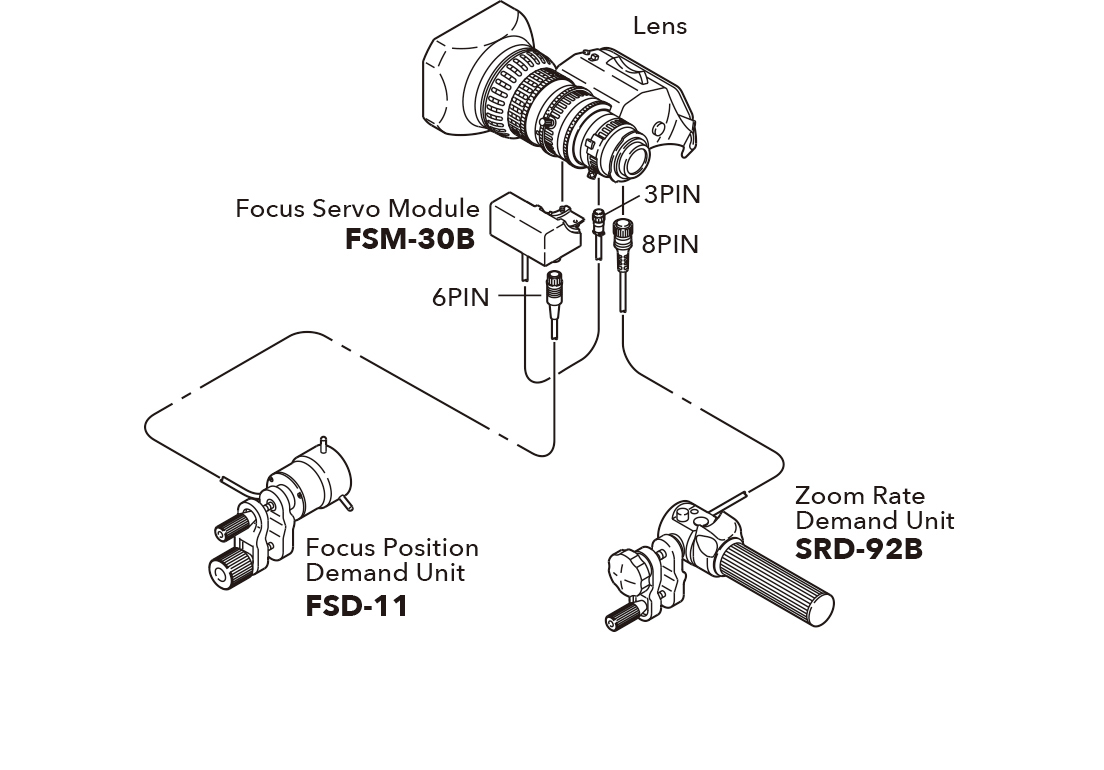

SS-01
![[image] Schematic of lens connecting to Focus Servo Module, Focus Position Demand Unit, and Zoom Rate Demand Unit](https://asset.fujifilm.com/www/in/files/2019-09/46e8a8082664891fa82e43170ff70391/fig_portablelens_06.jpg)
RM
Control Accessories Compatibility
Category | Description | Model Name |
RM |
|
---|---|---|---|---|
Standard | ||||
Focus | Manual | Focus Grip | CFH-3 | ● |
Flexible Cable | CFC-12-990 | ● | ||
Focus Manual Module | FMM-6B | ● | ||
Servo | Focus Servo Module | FSM-30B | ● | |
Focus Position Demand Unit | FSD-11 | ● | ||
Zoom | Servo | Zoom Rate Demand Unit | SRD-92B | ● |
Other | VTR Control Unit | VRS-2 | ||
For 12PIN Lens Cable | ECE-R22 |
