India
[photo] Premista28-100mm T2.9 zoom lens

Premista Series

NEW

Premista Series supports large-format sensors and deliver outstanding high resolution.

Premista19-45mm T2.9

Capture your Cinematic Vision

The Premista19-45mm is a wide-angle zoom lens that covers focal lengths from 19mm to 45mm with a constant T-stop of 2.9*1. Featuring large-diameter aspherical lens elements and a unique zooming system, the lens achieves an astonishing level of edge-to-edge sharpness. Additionally, the distortion minimal throughout the entire zoom range, even at the widest focal lengths.  A compact 230mm / 9” length and 3.3kg / 7lb 4oz weight, accomplished through world-class mechanical design cultivated over many years, means that this new zoom lens can be utilized for handheld shooting using a Steadicam*2 or other stabilizing system, as well as high-angle shooting using a crane. Combined with its wide-angle focal lengths and low distortion, the Premista 19-45mm will give cinematographers the ability to add a new perspective to their filmmaking while still minimizing the down time usually spent changing focal lengths.



  • *1 An index stating the brightness of the lens, taking into account the F value and transmittance. The smaller the value, the greater amount of light the lens transmits.
  • *2 Equipment for shooting stable video, which reduces unwanted movement that can occur when shooting handheld video.
[photo] Premista19-45mm T2.9 zoom lens

Feature

  • Stunning optical performance delivers the full benefits of a large format sensor
  • Natural depictions with little distortion throughout the entire zoom range
  • Durability and lightweight thanks to lens barrel assembly with high accuracy
  • Covering 19mm to 45mm and achieving T2.9
  • Comfortable operability
  • Compatible with the Cooke /i + ZEISS eXtended Data system

Specifications

Focal Length:

19-45mm

T-No.:

T2.9

Lens Mount:

PL mount

Maximum Image Size (diagonal):

46.3mm

M.O.D. from sensor plane:

0.60m / 2ft

Angular Field of View
40.96mm x 21.60mm *3:

19mm: 94.3゜x59.2゜
45mm:48.9゜x27.0゜


Angular Field of View
36mm x 24mm*4 :

19mm:86.9゜x64.6゜
45mm: 43.6゜x29.9゜

Angular Field of View
27.45mm x 15.44mm*5:

19mm: 71.7゜x44.2゜
45mm: 33.9゜x19.5゜

Focus Rotation

280°

Zoom Rotation:

120°

Iris Rotation:

48°

Iris Blades:

13

Front Diameter:

114mm

Length (approx.):

φ114x228mm

Weight (approx.):

3.3kg/7.3lbs

  • *Aspect ratio 1:1.90, *4 Aspect ratio 1:1.50, *5 Aspect ratio 1:1.78', Gear Pitch 0.8mm

Premista28-100mm T2.9

The Premista28-100mm, the first of the series to be released, is a standard zoom lens covering a 28-100mm focal length. This is the equivalent of 6 prime lenses *6, which saves both time and cost caused by changing lenses frequently. Thanks to the adoption of a large-diameter aspherical lens and a new focus/zoom system, the Premista achieves stunning optical quality from the center to the corners, allowing the cinematographer to capture the feeling and texture of the subjects. The lens design contributes to the wide dynamic range by suppressing unwanted flare and ghosts thanks to Fujifilm’s original optical calculation software.



  • *6 Standard 6 lens cine prime set of “29mm, 35mm, 40mm, 65mm, 85mm, 100mm”
[photo] Premista28-100mm T2.9 zoom lens

Feature

  • Stunning optical performance delivers the full benefits of a large format sensor
  • Durability and lightweight thanks to lens barrel assembly with high accuracy
  • Covering 28mm to 100mm and achieving T2.9 across the entire focal length
  • Comfortable operability
  • Compatible with the Cooke /i + ZEISS eXtended Data system

Specifications

Focal Length:

28-100mm

T-No.:

T2.9

Lens Mount:

PL mount

Maximum Image Size (diagonal):

46.3mm

M.O.D. from sensor plane:

0.8m / 2ft 7in

Angular Field of View  40.96mm x 21.60mm *7:

28mm: 72.4° x 42.2°

100mm: 23.1° x 12.3°

Angular Field of View
36mm x 24mm*8 :

28mm: 65.5° x 46.4°

100mm: 20.4° x 13.7°

Angular Field of View 27.45mm x 15.44mm*9:

28mm: 52.2° x 30.8°

100mm: 15.6° x 8.8°

Focus Rotation

280°

Zoom Rotation:

120°

Iris Rotation:

48°

Iris Blades:

13

Front Diameter:

114mm

Length (approx.):

φ114×255mm / 10.0"

Weight (approx.):

3.8kg / 8.4lbs.

  • *7 Aspect ratio 1:1.90, *8 Aspect ratio 1:1.50, *9 Aspect ratio 1:1.78', Gear Pitch 0.8mm

Premista80-250mmT2.9-3.5

The Premista80-250mmT2.9-3.5 is a telephoto zoom lens covering a 80-250mm focal length. It achieves stunning optical quality from the center to the corners and suppress unwanted flare and ghosts.

The Premista80-250mm can be combined with the Premista28-100mm to form a kit that covers the most frequently-used focal length between 28mm and 250mm, accommodating a variety of scene changes. They share a common front element diameter and three-ring gear positions, allowing users to use the same accessories such as matte boxes and follow focus.

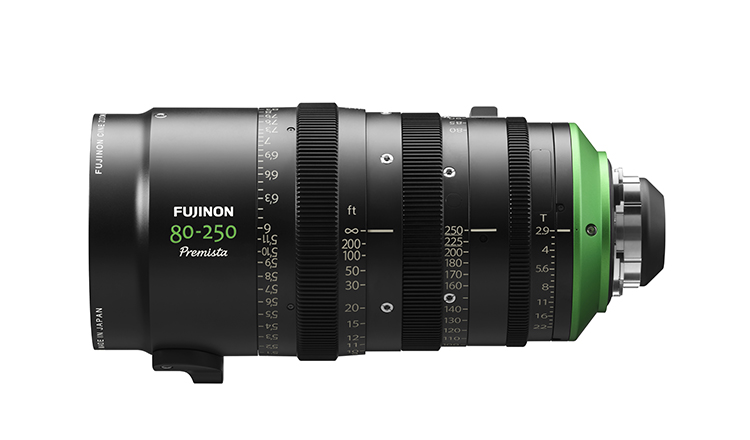

[photo] Premista80-250mmT2.9-3.5 zoom lens

Feature

  • Stunning optical performance delivers the full benefits of a large format sensor
  • Durability and lightweight thanks to lens barrel assembly with high accuracy
  • Covering 80mm to 250mm and achieving T2.9-T3.5
  • Comfortable operability
  • Compatible with the Cooke /i + ZEISS eXtended Data system

Specifications

Focal Length

80-250mm

T-No.:

T2.9 (80-200mm) / T3.5(250mm)

Lens Mount

PL mount

Maximum Image Size (diagonal)

46.3mm

M.O.D. from sensor plane

1.5m / 4ft 11in

Angular Field of View  40.96mm x 21.60mm *10

80mm: 28.7° x 15.4°

250mm: 9.4° x 4.9°

Angular Field of View
36mm x 24mm *11

80mm: 25.4° x 17.1°

250mm: 8.2° x 5.5°

Angular Field of View  27.45mm x 15.44mm * 12

80mm: 19.5° x 11.0°

250mm: 6.3° x 3.5°

Focus Rotation

280°

Zoom Rotation

120°

Iris Rotation

48°

Iris Blades

13

Front Diameter

114mm

Length (approx.)

φ114×255mm / 10.0"

Weight (approx.)

3.8kg / 8.4lbs.

  • *10 Aspect ratio 1:1.90, *11 Aspect ratio 1:1.50, *12 Aspect ratio 1:1.78
