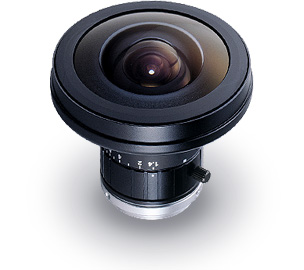

[photo] FE185 Series super wide-angle lens standing upright

FE185 Series - Overview

NEW

Super wide-angle lenses with a 185° field of view compatible with 5-megapixel high resolution sensors.

Lens Selector Support
Fisheye lenses
FE185 Series

Super wide-angle lenses with a 185° field of view compatible with 5-megapixel high resolution sensors

[photo] FE185 Series super wide-angle lens standing upright
Main features
Two models for different image circles

The f θ method, which is the most suitable to display images uniformly, makes processing easily by graphics software.

High resolution for 5MP sensors

FE185C057HA-1: 3.45μm pixel pitch
FE185C086HA-1: 5μm pixel pitch

Metal mount with high durability and accuracy (C-mount)
Manual iris

Locking screws for fixing iris is supplied as standard equipment.

Made in Japan Lineups
FE185C086HA-1
[photo] FE185C086HA-1 super wide-angle fisheye lens standing upright
Focal length [mm]2.7
Iris rangeF1.8 - F16
MountC-mount
OperationfocusFixed
irisManual
Angle of view1”185.0° x 185.0° (Ø8.6mm)
2/3”185.0° x 140.6°
1/2”136.3° x 102.3°
Working Distance*1 [mm]∞‐200
Sensor size (std.)*2‐
Sensor size (max.)*31" (5μm)
Weight (g)160
Working temperature-10°C - +50°C



  • *1 From front of lens barrel.
  • *2 Sensor size (std.): Ideal size to maximize the target resolution.
  • *3 Sensor size (max.): Adaptable sensor size varies depending on the model. Please check the amount of light and resolution on the edges pertaining to your particular application.
FE185C057HA-1
[photo] FE185C057HA-1 super wide-angle fisheye lens standing upright
Focal length [mm]1.8
Iris rangeF1.4 - F16
MountC-mount
OperationfocusFixed
irisManual
Angle of view2/3”185.0° x 185.0° (Ø5.7mm)
1/2”185.0° x 154.1°
1/3”154.1° x 115.4°
Working Distance*1 [mm]∞‐100
Sensor size (std.)*2‐
Sensor size (max.)*32/3" (3.45μm)
Weight (g)135
Working temperature-10°C - +50°C
