ApeosPort-VII C5573 R / C3373 R

Remanufactured machines

ApeosPort-VII C5573 R / C3373 R are remanufactured machines that achieve resource circulation with 84 %^*1 of parts reuse ratio based on our resource circulation system. We remanufacture collected machines from customers to be usable as long and reliably as newly built machines by replacing worn parts in accordance with the usage history. Remanufactured machines are new products same as newly built machines, rather than used products.

• *1: The maximum value by design.
• *2: The amount of CO₂ emissions from the entire product life cycle including manufacturing, transportation and customer use.
• *3: When comparing ApeosPort-VII C3373 R for the Japanese market and ApeosPort-VII C3373 for the Japanese market. The ratio is 38 % when comparing ApeosPort-VII C5573 R for the Australian market and ApeosPort-VII C5573 for the Australian market.

Environmental Technologies Supporting Resource Circulation Initiatives

Technology for utilizing usage history information

We are increasing the reuse rate of parts by implementing a usage history information system. This system will analyze about 30 types of usage history data from approximately 200 types recorded on MFPs, comparing it to a database of parts' life expectancy. This will allow us to automatically assess the remaining life of each part and decide if it can be reused.

• Note: Newly built machines refer to machines that are primarily assembled with newly procured parts.

Blast technology

Exterior plastics that were previously deemed not reusable due to yellowing have been successfully restored through blast cleaning technology, enabling them to be recycled as reusable parts.

Induction heating (IH)Fuser technology

With conventional fusers, preheating was necessary to ensure that the device would be able to immediately wake up from standby mode to serve users. This preheating consumed a large amount of electricity.
IH fusing technologies that enable quick heating to eliminate the necessity of preheating in standby or power-saving mode to conserve energy and increase convenience.

High speed recovery from sleep mode with an instant heating (IH)Fuser

The instant heating (IH)Fuser takes no more than 5 seconds to reach full heat from low-power sleep mode, thus helping to reduce overall power consumption without compromising user convenience.

• Note: For ApeosPort-VII C3373 R.

Smart WelcomEyes technology

Smart power saving technology

Optimizes power usage when waking from sleep mode to improve efficiency through the internal power saving of MFP and to increase silence by controlling unnecessary startup noises. Solely powers on individual functional modules to conserve energy and increase convenience.

Super EA-Eco toner

It has a fusing temperature that is around 10 ℃ lower than that of the EA-Eco toner. This results in lower power consumption.
Super EA-Eco toner also has one of the smallest toner particle sizes in the world, thus enabling higher print quality. Adopting toner with such a small particle size makes it possible to reproduce small characters and thin lines more sharply, render halftones and gradients with less graininess, and reproduce dot shapes more faithfully, delivering superior print quality.

LED print head technology

LEDs are used in the print head that writes image to the photoconductor, achieving both miniaturization, power savings, and high image quality (1,200 x 2,400 dpi).

It uses LEDs that contribute to the reduction of power consumption, and is equipped with an automatic double-sided document feeder for high-speed scanning

Highly versatile for more variation

The standard tray can handle paper between 52 to 300 gsm. In addition, this MFP can satisfy your needs for printing sales promotion materials such as POP and packaging in small lots.

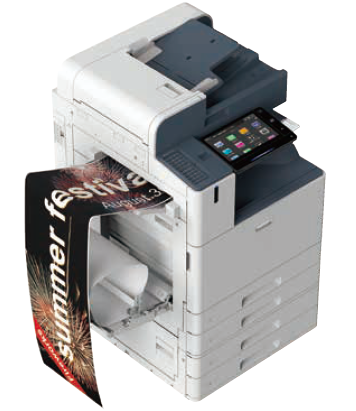

Printing on long paper supported^*1

Print from any MFP

Even if the MFP you selected for printing is currently in use, you can print from another MFP on the network. The document is stored in the MFP and users can check jobs or change print settings such as the number of outputs before they print the document. This can prevent wasteful printing while also ensuring security.

• Note: Requires optional Server-less On-Demand Print.

Flexible office layout options

Fully compatible with wireless LAN, plus support for Print Utility, AirPrint, Mopria^® Print Service and Mopria Scan. No cabling means greater flexibility to accommodate any office layout, including hot-desking setups. And with Wi-Fi Direct, visitors can print directly from mobile devices without going through the office intranet.

• Note: Requires optional Wireless Network Kit.

Print Utility

Multifunction devices can output data such as applications, web pages, captured images, DocuWorks documents, and PDF documents on smartphones. In addition, the data scanned by the MFP can be imported to a smartphone.

An NFC tag is standard on the control panel. Simply hold your smartphone over the NFC touch area of the MFP to perform tasks such as printing.

Seamless scanning of irregular sizes

Irregular and small size paper documents can be automatically adjusted to the closest standard size just by scanning with the duplex automatic document feeder. Easily scan receipts and order slips without entering each individual document size.

Support for multiple file formats and operations

Scanned data can be converted to TIFF, JPEG, DocuWorks or PDF format before being sent via e-mail or being stored to USB^*1. Other useful features include OCR^*2 (for easy searching), compression (for efficient transfers) and password protection. Scanned documents can also be converted into editable Word^*2 and Excel^*2 documents. It's so easy to convert paper-only documents into fully editable electronic formats.

• *1: Requires optional USB memory Kit.
• *2: Requires optional Advanced Scan Kit.

Personalised scanning made easier

Scan both single-sided and double-sided documents in any orientation with ScanAuto. Previously used recipient e-mail addresses appear in the user history for easy selection, and the sender's e-mail address is pre-filled automatically when in authentication.

Digitisation of paper documents for effortless document management

With Scan Delivery^*, you can automatically process and store scanned images by simply pressing the preset button for each workflow or document type.

• * Optional

Paperless Fax Delivery (Optional)

Using Paperless Fax Delivery allows you to transfer incoming faxes to servers or shared folders, or to send them by attaching to e-mails, without printing them.
You can automatically sort incoming faxes into the destination folder by fax number, by received date, or by each user. You can also sort junk (spam) faxes into a different folder.

Share information anytime, anywhere

With Working Folder^* and internet access, documents can be viewed regardless of time and location.

• Can be linked smoothly with multifunction printers, DocuWorks, and mobile devices
• Documents in Working Folder can be printed from the control panel
• Scanned documents will be assigned a file name and stored in Working Folder. An email notification will be sent to relevant users

Centralised cloud integration

• Encryption of communication between server and client PC and MFPs (IPsec, SSL/TLS communication, S/MIME communication, SMBv3)
• Stored data in MFPs (enhanced encryption key management by using TPM chips, encryption/overwriting erasure of hard disks)
• Prevention of erroneous transmission of faxes (FASEC1 compliant, re-entry of address, prohibition of transmission other than the address list, display of destination confirmation screen)
• User authentication and usage restrictions prevent unauthorized manipulation and access
• Replication management (hidden character printing^*, forced annotation, embedding of restriction code^*)

• * Optional

Output Tray

Up to 3 ways including the inner output tray available to output jobs. Jobs can be delivered to each output tray by job type such as Print, Copy or Fax.

Feeding Options

Finishing Applications

• * Optional.
