The content on this page is intended to healthcare professionals and equivalents.
Flexible Solution with System Style Options (Floor / Ceiling)

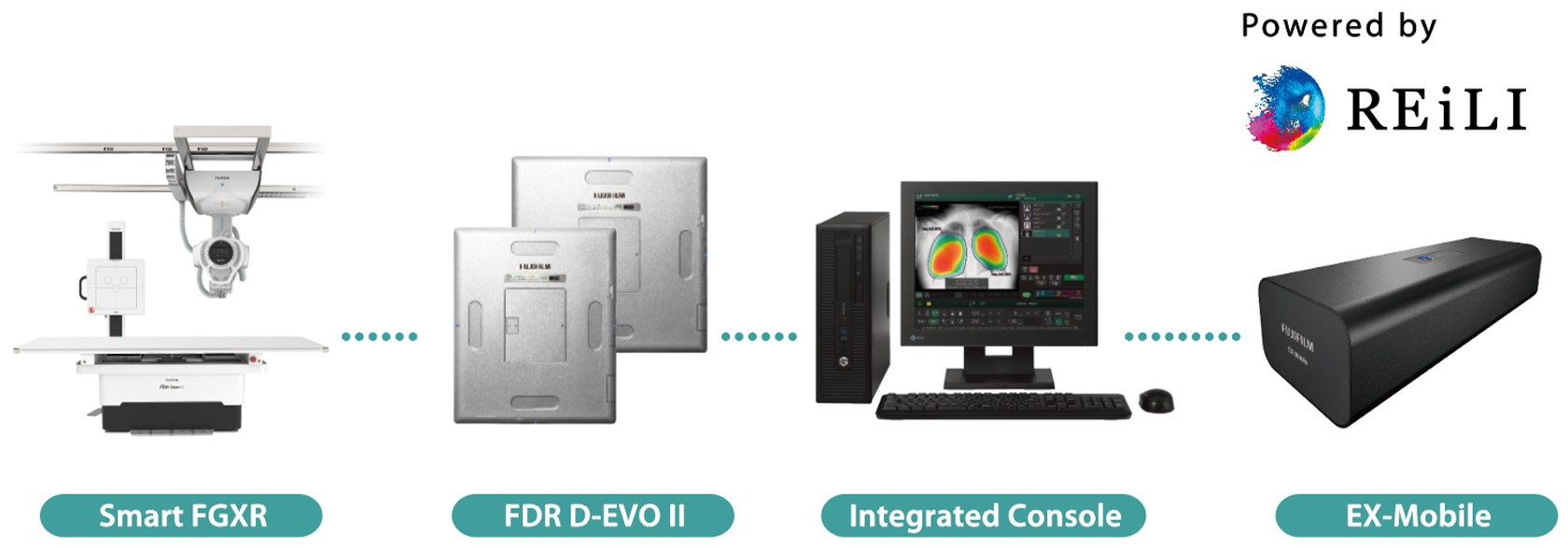

Coherent Solution for X-ray Room with FUJIFILM modalities and image processing

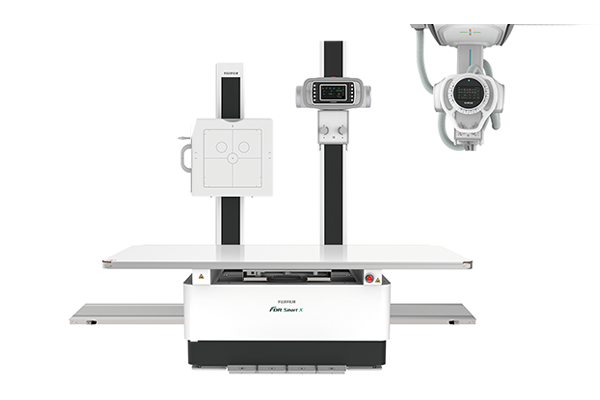

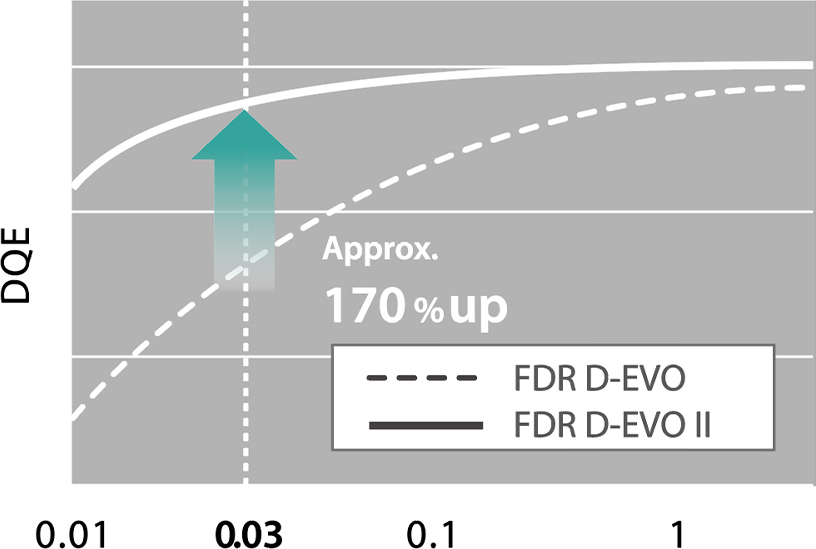

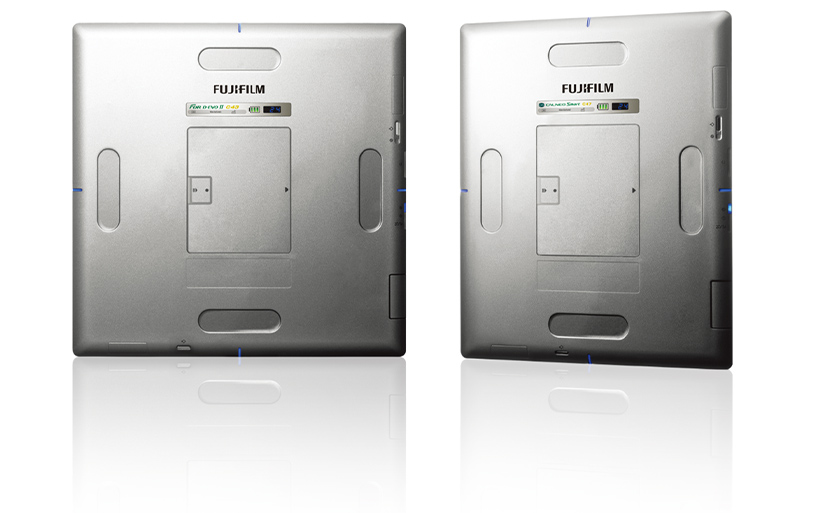

FDR Smart X is Fujifilm's newly developed X-ray system, providing multi-function, high-quality, cost-effective X-ray solutions. The Smart X offers ceiling suspended X-ray tube configurations as well as a floor mounted X-ray tube option for use with the upright stand and table, providing flexible solutions for your imaging department. Compatible with Fujifilm's latest D-EVO II series DR panels with their advanced features and high image quality. Also CR cassette and F/S cassette are available for FDR Smart X.

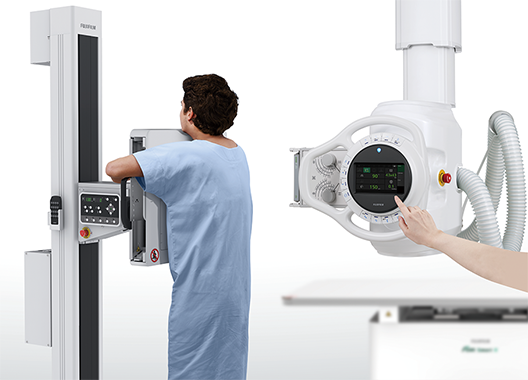

Compatible and Optimal X-ray Solution
The Ceiling mounted tube provides tracking with the upright stand and table detectors improving workflow, throughput and efficiency

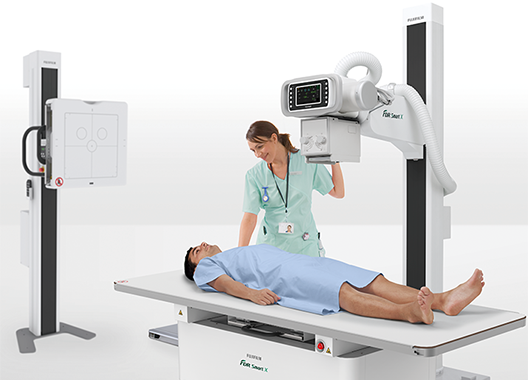

The Floor mounted tube option, provides flexibility to install in limited space, maximizing the imaging systems available in the department.
Multi function stand and table supporting efficient workflow

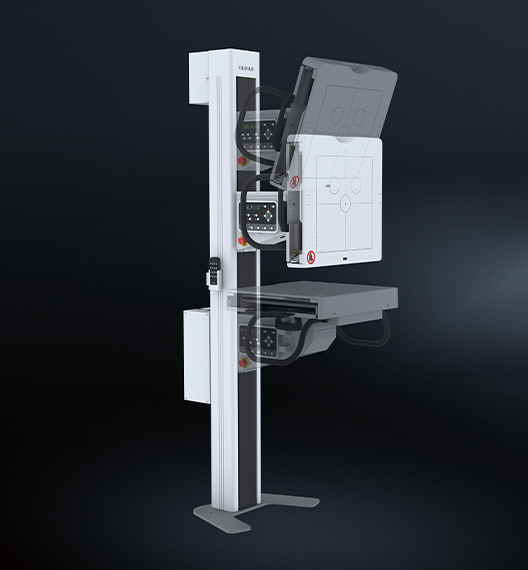

Automatic and manual tilting of the upright bucky stand is available*1. Providing an improved workflow for the radiographers and an improved experience to those patients in wheelchairs.
- *1 Different stand is lined-up for each

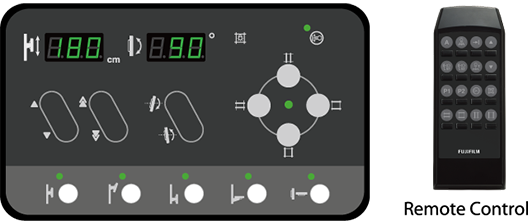

The ability to store preset positions and move the wall stand automatically to those positions provides a quick and efficient workflow.

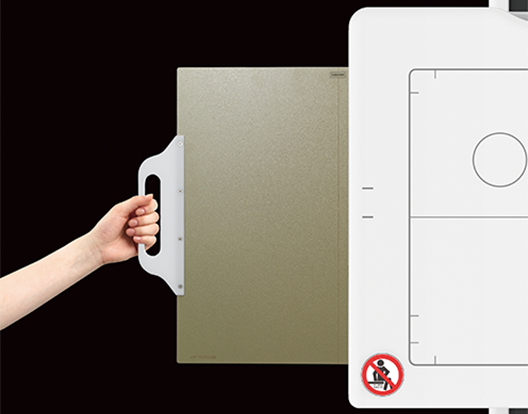

Removable grids in both the table and upright stand, allow flexible working (such as Pediatrics).

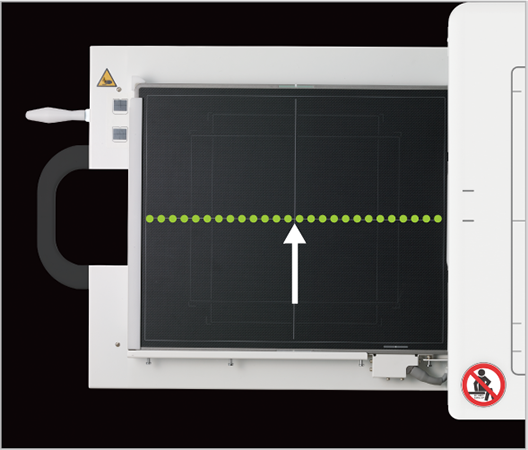

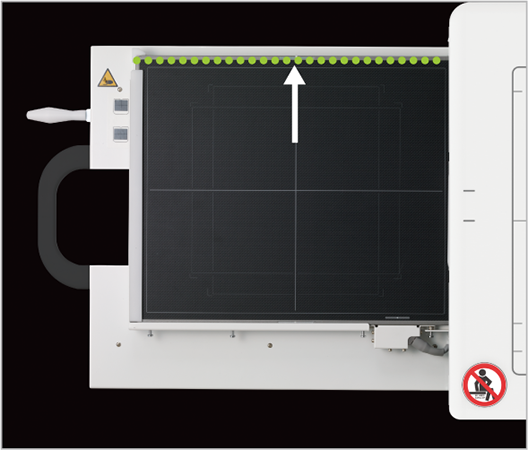

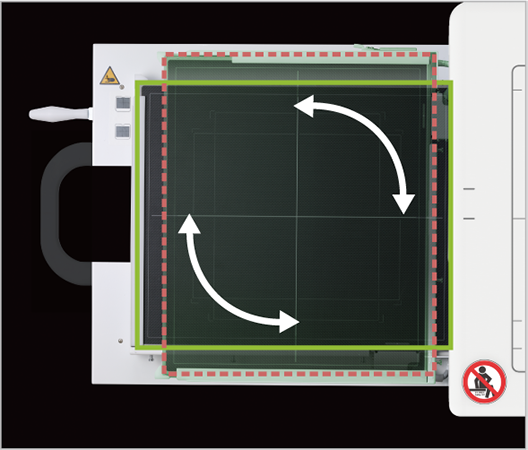

Dual Reference Rotation
Not only top reference, but also center rotation can be selected when using 14" x 17"DR panels. This provides flexible solutions, enabling exposure of areas other than the chest without taking out the panel and insert again in rotated direction or using larger panel.

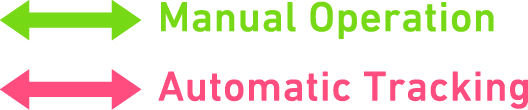

Automatic Tracking
Tube head and bucky move synchronized with each other supporting positioning for exposure.
Motorized Vertical
Synchronization with wall stand
Motorized Vertical
Synchronization with table
The table bucky tracks after the horizontal movement of the tube head (same as floor mounted tube head)
The table bucky tracks after the rotating motion of the tube head (same as floor mounted tube head)
A motorized height adjustable floating top table with a weight limit of 300 kg. Synchronisation (Tracking) of the tube with both upright and table detectors. Available with ceiling and floor mounted systems.
Rotating tray is also available for table. Direction of the panel can be changed according to the patient position.
The SE cable + connector are already built in the tray, thus, just setting the DR panels into the tray, DR panels are automatically connected. Also, there is no need to handle the cables around the bucky.
Combined with rotation function, this will greatly improve efficiency and remove the stress of the workflow.
Fail Safe Switch
Fail safe switch detects panel in side the tray / bucky. When the panel is not inside the bucky or not inserted properly, exposing X-ray is unable. Thus, false exposure can be prevented.
Realizing optimized workflow

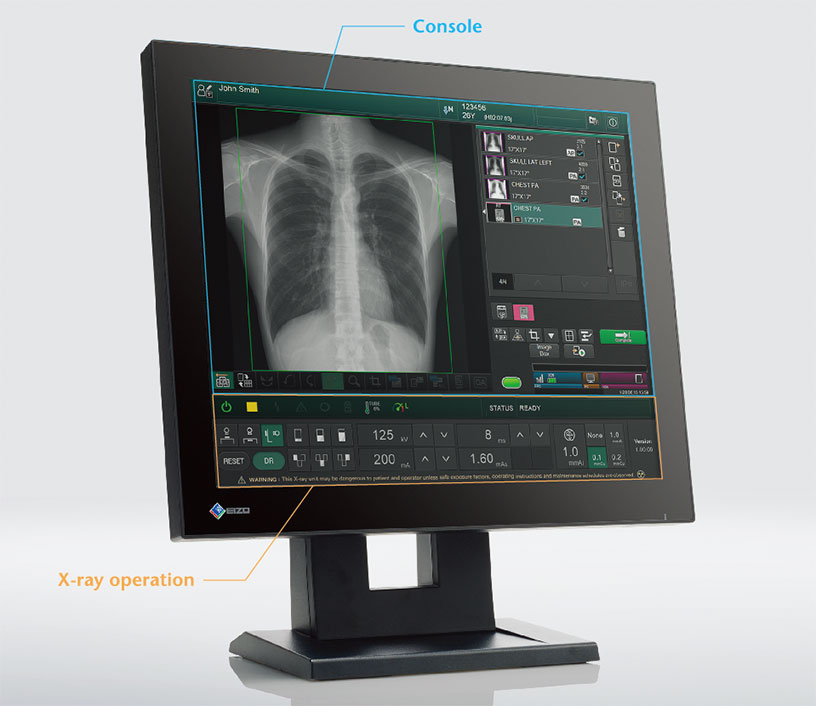

Detector Console and X-ray controller are integrated, displaying in the same monitor. Setting the exposure condition and selecting the exposure menu can be done in the same PC.
- * This function is optional and only available with Console Advance, not for F/S cassette.

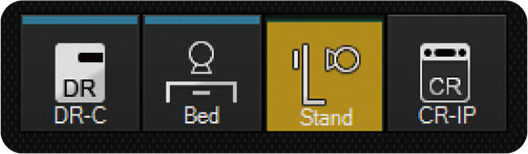

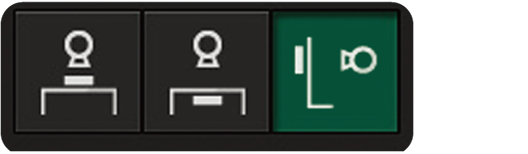

Connected modalities (panels / cassettes) are displayed both in Console and X-ray controller. By simply selecting the button, the modality can be changed and they are synchronized between Console and X-ray controller.

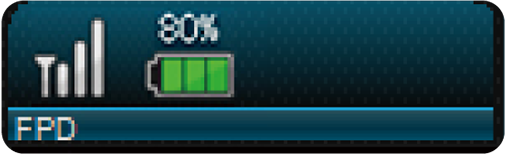

When DR panel is used, it is available to confirm its status; wireless connection level, battery charge level, etc.
Generator Line up
Flexible generator line up provides solutions for all environments
Medical Center
Capacitor Assisted Generator
Perfect for the medium sized X-ray department. No power supply modification necessary 40kW Single Phase Input power 3kVA
Country side
UPS Generator
Supplies power for 5 hours (or approximately 500 shots) without electricity. The ideal solution for regions with unstable power supply 40kW Single Phase Input power 1kVA
Hospital
Line Powered Generator
We can adjust our generator to the workload required in a big hospital.40kW/52kW/68kW/82kW Three phase.This is a high frequency X-ray generator
- * Some of the functions mentioned on this page are optional. Please contact your local contact window about the details.
Products Name : FDR Smart X（Model name : FDR Smart FGXR)
