[photo] Endoscopic Ultrasonography System workstation

Endoscopic Ultrasonography System - Ultrasonic Endoscopes

NEW

Next-generation system with high resolution image and endoscopic performance.

Contact Us

The content on this page is intended to healthcare professionals and equivalents.

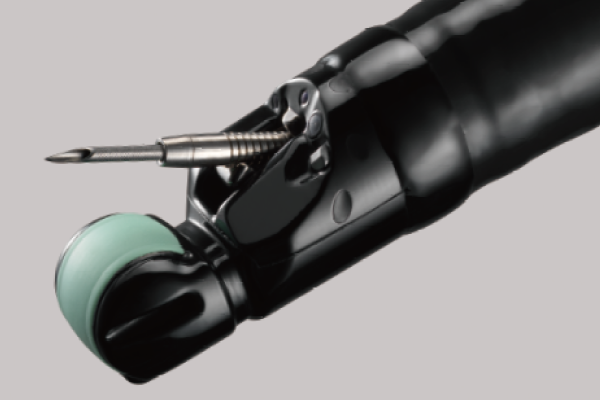

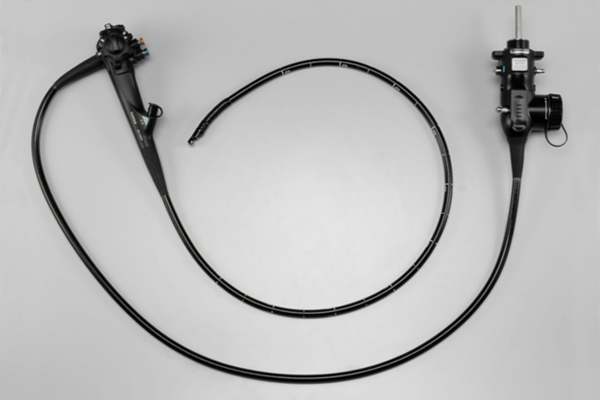

EG-580UT

Endoscopic functions

Viewing direction: 40° (Forward Oblique)
Field of view: 140°
Observation range: 3-100 mm
Distal end diameter: 13.9 mm
Insertion tube diameter: 12.4 mm
Minimum diameter of instrument channel: 3.8 mm
Bending capability: UP 150° / DOWN 150°
RIGHT 120° / LEFT 120°
Working length: 1,250 mm
Total length: 1,550 mm

Ultrasonic functions

Scanning mode: Color Doppler, Power Doppler, Pulse Doppler, B-mode, M-mode
Scanning method: Electronic convex scanning method
Scanning angle: 150° (Combination with SU-1)
Frequency: 5 MHz / 7.5 MHz / 10 MHz / 12 MHz

Product : Ultrasonic Endoscope
GMDN: 36951
Generic Name: Flexible ultrasound gastroduodenoscope

EG-580UR

Endoscopic functions

Viewing direction: 0°
Field of view: 140°
Observation range: 3-100 mm
Distal end diameter: 11.4 mm
Insertion tube diameter: 11.5 mm
Minimum diameter of instrument channel: 2.8 mm
Bending capability: UP 190° / DOWN 90°
RIGHT 100° / LEFT 100°
Working length: 1,250 mm
Total length: 1,550 mm

Ultrasonic functions

Scanning mode: Color Doppler, Power Doppler, Pulse Doppler, B-mode, M-mode
Scanning method: Electronic radial scanning method
Scanning angle: 360° (Combination with SU-1)
Frequency: 5 MHz / 7.5 MHz / 10 MHz / 12 MHz

Product : Ultrasonic Endoscope
GMDN: 36951
Generic Name: Flexible ultrasound gastroduodenoscope

EB-530US

Endoscopic functions

Viewing direction: 10° (Forward Oblique)
Field of view: 120°
Observation range: 3-100 mm
Distal end diameter: 6.7 mm
Insertion tube diameter: 6.3 mm
Minimum diameter of instrument channel: 2.0 mm
Bending capability: UP 130° / DOWN 90°
Working length: 610 mm
Total length: 880 mm

Ultrasonic functions

Scanning mode: Color Doppler, Power Doppler, Pulse Wave, B-mode, M-mode
Scanning method: Electronic convex scanning method
Scanning angle: 65° (Combination with SU-1)
Frequency: 5 MHz / 7.5 MHz / 10 MHz / 12 MHz

Product : Ultrasonic Endoscope
GMDN: 44921
Generic Name: Flexible ultrasound bronchoscope
