Colonoscopes

NEW

Lower G.I. tract scope line up support wide range of examinations and treatments.

Contact Us

The content on this page is intended to healthcare professionals and equivalents.

EC-600 EC-580 EC-760 EC-720 EC-530

EC-600W

Viewing direction: 0°(Forward)
Field of view: 140°
Observation range: 2-100mm
Distal end diameter: 12.0mm
Insertion tube diameter: 12.0mm

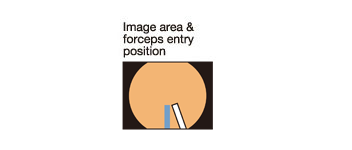

Minimum diameter of instrument channel: 3.8mm

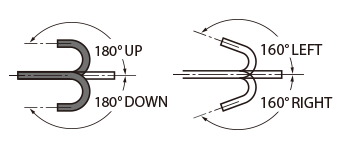

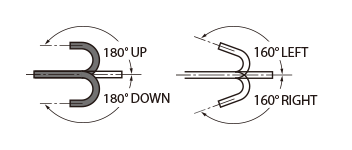

Bending capability: UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°
Working length: EC-600W/M
1,330mm
EC-600W/I
1,520mm
EC-600W/L
1,690mm
Total length: EC-600W/M
1,630mm
EC-600W/I
1,820mm
EC-600W/L
1,990mm

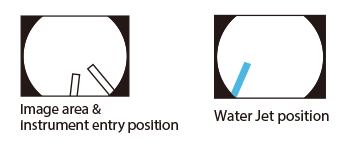

Water Jet: Available

Product: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

EC-600ZW

Viewing direction: 0°(Forward)
Field of view: Normal: 140° / Closest: 56°
Observation range: 1.5-100mm
Normal: 3-100mm
Closest: 1.5-2.5mm
Distal end diameter: 12.8mm
Insertion tube diameter: 12.8mm
Minimum diameter of instrument channel: 3.8mm
Bending capability: UP 180° / DOWN 180°
RIGHT 160° / LEFT 160
Working length: EC-600ZW/M
1,330mm
EC-600ZW/L
1,690mm
Total length: EC-600ZW/M
1,630mm
EC-600ZW/L
1,990mm

Product: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

EC-580RD

Viewing direction: 0°(Forward)
Field of view: 140°
Observation range: 3-100mm
Distal end diameter: 9.8mm
Insertion tube diameter: 10.5mm
Minimum diameter of instrument channel: 3.2mm

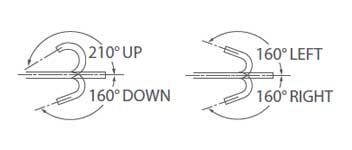

Bending capability: UP 210° / DOWN 160°
RIGHT 160° / LEFT 160°
Working length: EC-580RD/M
1,330mm
EC-580RD/L
1,690mm
Total length: EC-580RD/M
1,630mm
EC-580RD/L
1,990mm
Water Jet: Available

Product: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

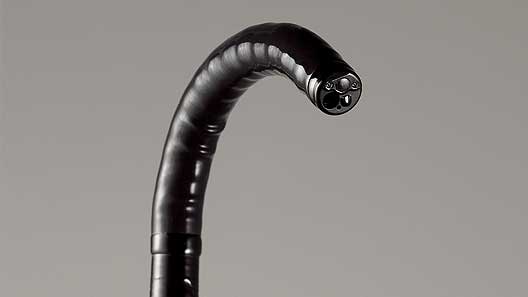

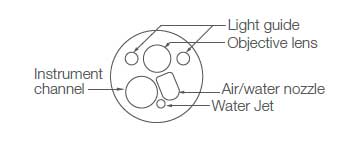

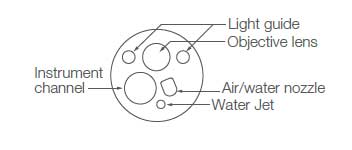

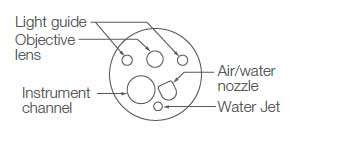

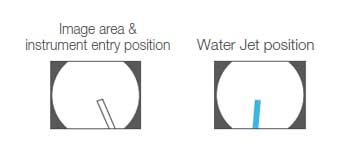

EC-760R-V, EC-760P-V, EC-760S-V

Viewing direction: 0°(Forward)
Field of view: 170°
Observation range: 2-100mm
Distal end diameter: EC-760R-V
12.0mm
EC-760P-V
11.1mm
EC-760S-V
12.8mm
Insertion tube diameter: EC-760R-V
12.0mm
EC-760P-V
11.5mm
EC-760S-V
12.8mm
Minimum diameter of instrument channel: EC-760R-V
3.8mm
EC-760P-V
3.2mm
EC-760S-V
3.8mm

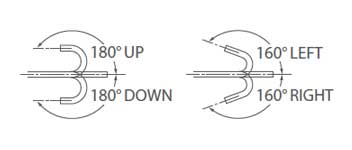

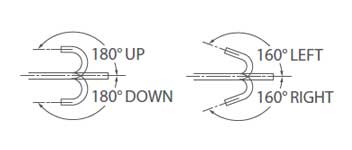

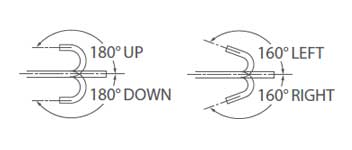

Bending capability: UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°
Working length: EC-760R-V/M,I,L
1,330mm / 1,520mm / 1,690mm
EC-760P-V/M,L
1,330mm / 1,690mm
EC-760S-V/L
1,690mm
Total length: EC-760R-V/M,I,L
1,650mm / 1,840mm / 2,010mm
EC-760P-V/M,L
1,650mm / 2,010mm
EC-760S-V/L
2,010mm
Water Jet: Available

Product: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

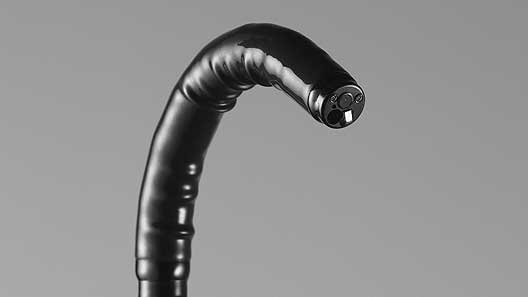

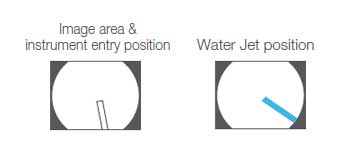

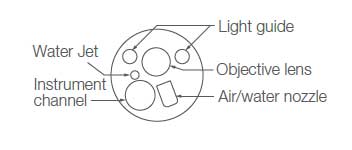

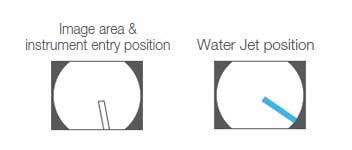

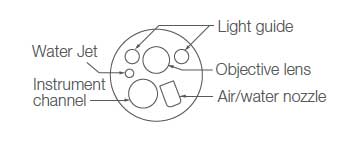

EC-760Z, EC-760ZP-V

Viewing direction: 0°(Forward)
Field of view: Normal: 140° / Closest: 56°
Observation range: 1.5-100mm
Normal: 3-100mm
Closest: 1.5-2.5mm
Distal end diameter: EC-760Z-V
12.8mm
EC-760ZP-V
11.7mm
Insertion tube diameter: EC-760Z-V
12.8mm
EC-760ZP-V
11.8mm
Minimum diameter of instrument channel: EC-760Z-V
3.8mm
EC-760ZP-V
3.2mm

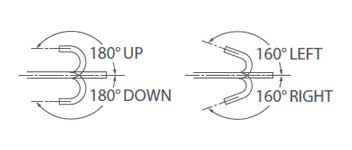

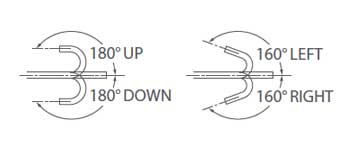

Bending capability: UP 180° / DOWN 180°
RIGHT 160° / LEFT 160
Working length: EC-760Z-V/M,L
1,330mm / 1,690mm
EC-760ZP-V/M,L
1,330mm / 1,690mm
Total length: EC-760Z-V/M,L
1,650mm / 2,010mm
EC-760ZP-V/M,L
1,650mm / 2,010mm
Water Jet: Available

Product: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

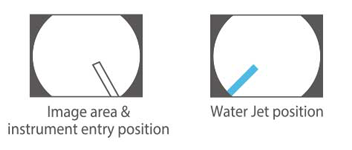

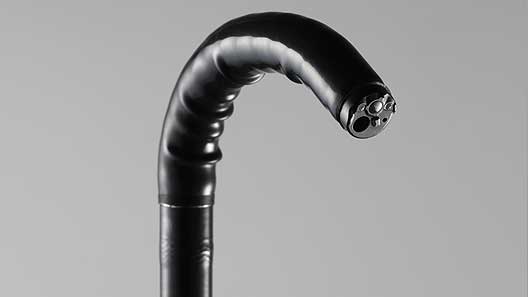

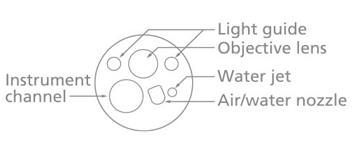

EC-720R

Viewing direction: 0° (Forward)
Field of view: 170°
Observation range: 2-100mm
Distal end diameter: 12.8mm
Insertion tube diameter: 12.8mm
Minimum diameter of instrument channel: 3.8mm

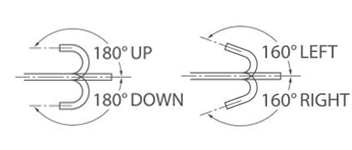

Bending capability: UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°
Working length: EC-720R/M
1,330mm
EC-720R/I
1,520mm
EC-720R/L
1,690mm
Total Length: EC-720R/M
1,630mm
EC-720R/I
1,820mm
EC-720R/L
1,990mm
Water Jet: Available

Product: Video Endoscope
GMDN: 36117
Generic name: Flexible video colonoscope, reusable

EC-530W

Viewing direction: 0° (Forward)
Field of view: 140°
Observation range: 3-100mm
Distal end diameter: 12.8mm
Insertion tube diameter: 12.8mm
Minimum diameter of instrument channel: 3.8mm
Bending capability: UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°
Working Length: EC-530WM3
1,330mm
EC-530WI3
1,520mm
EC-530WL3
1,690mm
Total Length: EC-530WM3
1,630mm
EC-530WI3
1,820mm
EC-530WL3
1,990mm
