With thinner sheath, the space between the instrument channel and FlushKnife is enlarged. It enables increased suction performance while stabilizing the sheath.

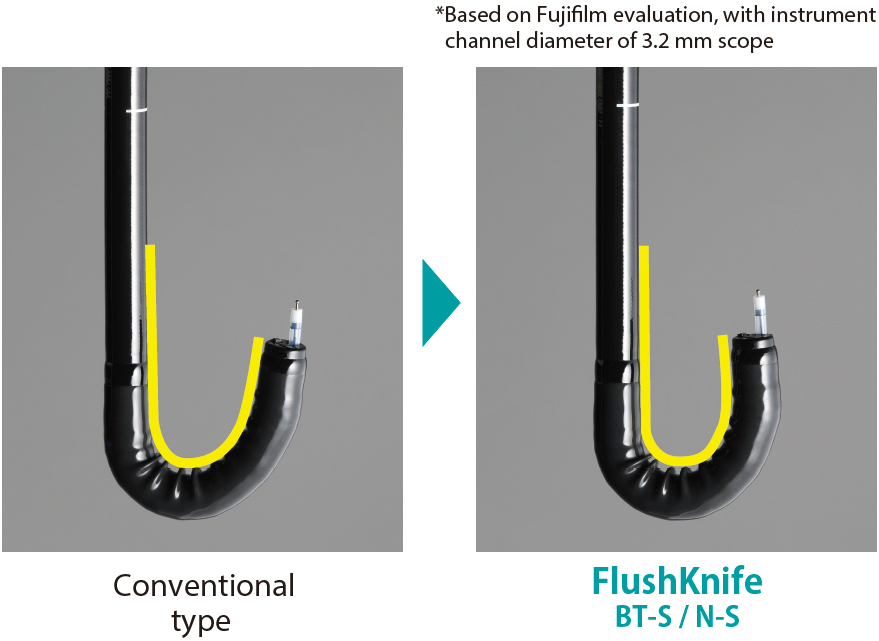

By adopting thinner sheath and more flexible material, slim type FlushKnife is capable of bending more acutely.
Resistance during scope insertions is reduced by enhanced flexibility and thinner sheath. Less kinking is likely to reduce stress on physicians.
Even with thinner sheath, water jet function is same as conventional type, and the knife maintains its sharpness throughout the procedure.
Tip design to enhance ESD efficiency
Design of knife
![[logo] FlushKnife BTS](https://asset.fujifilm.com/www/au/files/2023-05/896300f8e54ecd127d326ac4b4af9c17/fig_flush-knife_06.jpg)
FlushKnife BT-S has a ball tip, which produces good traction, enabling the target tissue to be dissected smoothly. The ball tip touches wider range of tissue and supports effective coagulation.
![[logo] FlushKnife NS](https://asset.fujifilm.com/www/au/files/2023-05/6ad48c490a7f4268b55c9c3294025ed4/fig_flush-knife_07.jpg)
FlushKnife N-S has a slim needle-shaped tip.
It provides stronger dissection capability by high current density and enables sharp marking.
Tip of sheath
![[image] Tip of sheath measurement and FlushKnife doing dissection in submucosal layer of tissue, with distal end of sheath serving as stopper to prevent damage](https://asset.fujifilm.com/www/au/files/2023-05/f2047a7f2fd7846634d9222f675a64f8/fig_flush-knife_08.jpg)
Product lineup
More efficient treatment is achieved by selecting suitable model for each legion.
FlushKnife BT-S
![[photo] Row of four FlushKnife BT-S tips, going from left to right with 1.5mm, 2.0mm, 2.5mm, and 3.0mm](https://asset.fujifilm.com/www/au/files/2023-05/e2fd28e9c9877e190a80db6bfa059ef4/pic_flush-knife_03.jpg)
FlushKnife N-S
![[photo] Row of five FlushKnife N-S tips, going from left to right with 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 3.0mm](https://asset.fujifilm.com/www/au/files/2023-05/2e94f02fa6e7f9610d6029fe126dc5b6/pic_flush-knife_04.jpg)
2000mm and 2300mm working length
Two types of working length allow combination with a variety of endoscopes. It supports ample distance between physician and assistant.
The handle inscribed with “S” helps medical staffs to identify this model from others.
