[photo] HF-12M Series lenses standing upright and grouped together in a circle

HF-12M Series - Overview

NEW
Lens Selector Contact Us
"4D High Resolution" lenses HF-12M series Compatible with 2/3" to 1" (max.) image sensors

HF-12M series specification sheet

Model Compatible format sizes Focal length
(mm)
4/3 1.1 1 1/1.2 2/3 1/1.8 1/2 1/3
HF818-12M － － － － ● ● ● ● 8
HF1218-12M － － － ○ ● ● ● ● 12
HF1618-12M － － － ○ ● ● ● ● 16
HF2518-12M － － － ○ ● ● ● ● 25
HF3520-12M － － ○ ○ ● ● ● ● 35



● Compatible sensor size (std.): Ideal size to maximize the target resolution.
○ Compatible sensor size (max.): Adaptable sensor size varies depending on the model. Select a lens after checking the peripheral light amount and resolution.

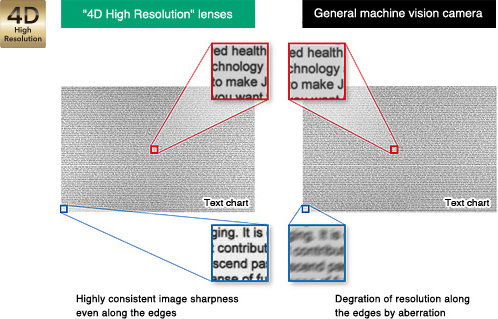

Main features Minimizing degradation of resolution even when the shooting distance or aperture is changed

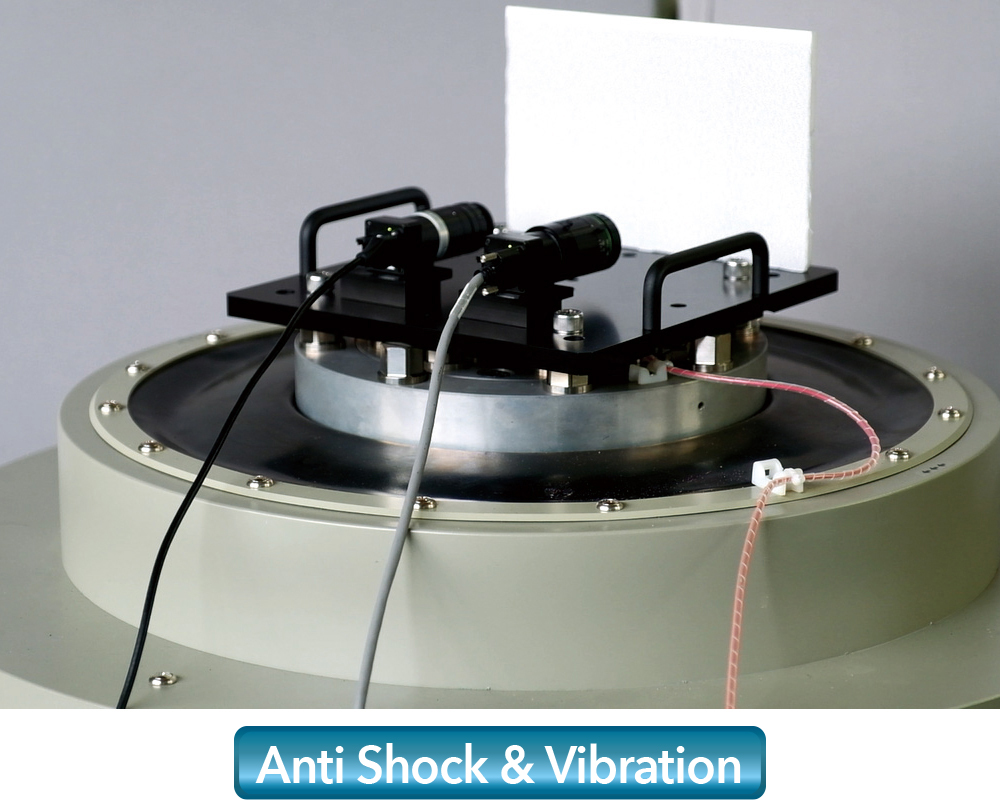

【Compliant with IEC60068-2-6】

  • Vibration frequency of 10-60Hz (amplitude of 0.75mm), 60-500Hz (acceleration of 100m/S2)
  • Sweep frequency of 50 cycles
Lineups
Focal length [mm]8
Iris range (F. no)F1.8-F22
Angle of view56.9°×43.9° (2/3")
Working Distance*2 [mm]∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M30.5 x 0.5
MountC-mount
Weight (approx.) [g]95
Sensor size(std.)*22/3"(2.1μm)
Sensor size (max.)*32/3"(2.1μm)

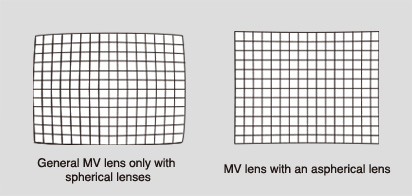

TV distortion [%]-1.03
Dimension [mm]Φ33×48.5
Focal length [mm]12
Iris range (F. no)F1.8-F22
Angle of view39.3°×30.0° (2/3")
Working Distance*2（mm）∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M30.5 x 0.5
MountC-mount
Weight (approx.) [g]85
Sensor size(std.)*22/3"(2.1μm)
Sensor size (max.)*31/1.2"(4.5μm)
TV distortion [%]0.18
Dimension [mm]φ33×52.5
Focal length [mm]16
Iris range (F. no)F1.8-F22
Angle of view30.8°×23.3° (2/3")
Working Distance*2（mm）∞-100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M30.5 x 0.5
MountC-mount
Weight (approx.) [g]90
Sensor size(std.)*22/3"(2.1μm)
Sensor size (max.)*31/1.2"(4.5μm)
TV distortion [%]-0.03
Dimension [mm]φ33×52.5
Focal length [mm]25
Iris range (F. no)F1.8-F22
Angle of view20.0°×15.1°(2/3")
Working Distance*2（mm）∞-100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M30.5 x 0.5
MountC-mount
Weight (approx.) [g]85
Sensor size(std.)*22/3"(2.1μm)
Sensor size (max.)*31/1.2"(4.5μm)
TV distortion [%]0.02
Dimension [mm]φ33×53.1
Focal length [mm]35
Iris range (F. no)F2.0-F22
Angle of view14.7°×11.0° (2/3")
Working Distance*2（mm）∞‐200
Operation of focusManual
Operation of irisManual
Filter thread [mm]M30.5 x 0.5
MountC-mount
Weight (approx.) [g]85
Sensor size(std.)*32/3"(2.1μm)
Sensor size (max.)*41"(4.5μm)
TV distortion [%]0.01
Dimension [mm]φ33×53.1



  • *2 From front of lens barrel
  • *3 Sensor size(std.): Ideal size to maximize the target resolution
  • *4 Sensor size(max.): Adaptable sensor size varies depending on the model. Select a lens after checking the peripheral light amount and resolution.
