STABISCOPE Series

NEW

The gyroscopic stabilization of the STABISCOPE series absorbs the greatest vibrations in the harshest conditions.

Contact Us Catalog

Lineups

STABISCOPE S1240

The gyro effect created by the flywheel absorbs the vibration up to ±5° like that of moving vehicles, helicopters and boats and maintains a steady view.

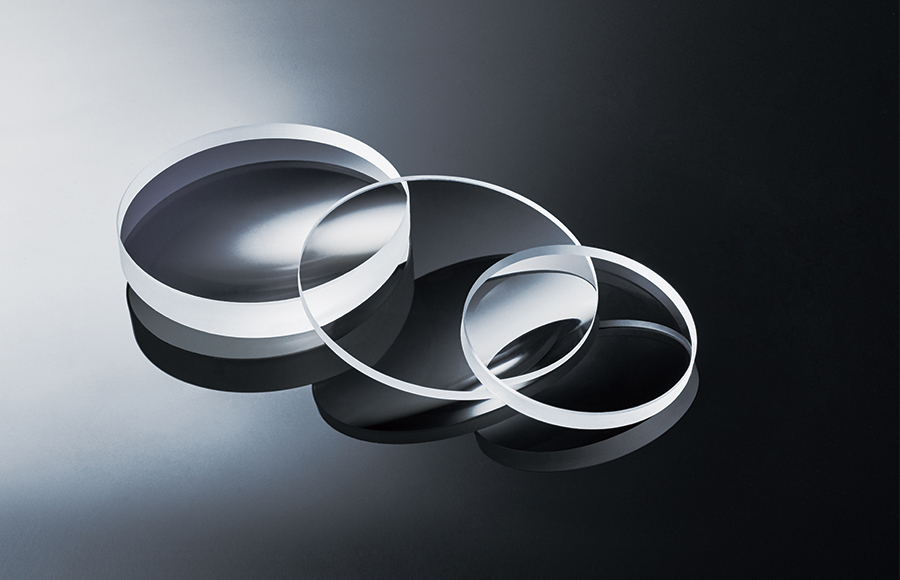

All lenses and the prisms have a high-quality EBC multi-coating, increasing light permeability for bright, natural color reproduction.
Strong and corrosion resistant for use in harsh conditions from -20℃ to +50℃.
Airtight waterproof structure is filled with dry nitrogen gas to prevent fogging inside.
Can be used upside down, allowing the binoculars to be held in either hand.

[photo] STABISCOPE S1240 binoculars

Specifications

Magnification: 12
Objective diameter (mm): 40
Field of view (°): 4.7
Apparent field of view (°) ^*1: 52.4
Field of view at 1000m (m): 82
Exit pupil: 3.3
Relative Brightness: 11.1
Eye relief (mm): 17
Minimum Focus Distance (m) ^*2: 28.8
Height (mm): 210
Width (mm): 200
Depth (mm): 90
Weight (g) (w/o Battery): 1,800
Adustment range for interpupillary distance (mm): 59-71
Dioptric adjustment range (±mm): ±5
Focus type: IF
Water resistant^*3: 2m-5min
Battery: AA×4 or 2CR5×1
Operationg temperature: −20℃ - +50℃

STABISCOPE S1640

The gyro effect created by the flywheel absorbs the vibration up to ±5° like that of moving vehicles, helicopters and boats and maintains a steady view.
All lenses and the prisms have a high-quality EBC multi-coating, increasing light permeability for bright, natural color reproduction.
Strong and corrosion resistant for use in harsh conditions from -20℃ to +50℃.
Airtight waterproof structure is filled with dry nitrogen gas to prevent fogging inside.
Can be used upside down, allowing the binoculars to be held in either hand.

[photo] STABISCOPE S1640 binoculars

Specifications

Magnification: 16
Objective diameter (mm): 40
Field of view (°): 3.4
Apparent field of view (°) ^*1: 50.8
Field of view at 1000m (m): 59
Exit pupil: 2.5
Relative Brightness: 6.3
Eye relief (mm): 12
Minimum Focus Distance (m) ^*2: 51.2
Height (mm): 200
Width (mm): 200
Depth (mm): 90
Weight (g) (w/o Battery): 1,800
Adustment range for interpupillary distance (mm): 59-71
Dioptric adjustment range (±mm): ±5
Focus type: IF
Water resistant^*3: 2m-5min
Battery: AA×4 or 2CR5×1
Operationg temperature: −20℃ - +50℃

*1 Apparent field of view based on ISO14132-1:2002
*2 MOD may differ depends on the viewer's sight in case of Indivisual focus.
*3 Do not mean it can be used in water.

Bundled items: Neck strap, Wristband, DC regulator, input and output cords (for DC regulator), and 4 AA batteries.
