(The actual package may slightly differ from those in the pictures.)
- NH3-WII (for whole blood) 24 slides/box
- NH3-PII (for plasma) 24 slides/box
- 96 tips x 6 racks/box
- 3 mL x 2 bottles/box
PRODUCT NAME : FUJI DRI-CHEM NX10N
- Slides
FUJI DRI-CHEM SLIDE NH3-WII (for whole blood) and NH3-PII (for plasma)
- Measurement range
Measurement range : 7-357 μmol/L (10-500 μg/dL)
- Amount of sample
10 μL
- Measurement time
2 minutes
- Incubation temperature
37 °C
- Light source
600 nm LED
- Electrical requirements
DC12V AC adapter : AC100-240 V 50/60 Hz 0.6 A
- Operating temperature and humidity
Temperature : 15 to 32 °C, humidity: 30 to 80%RH

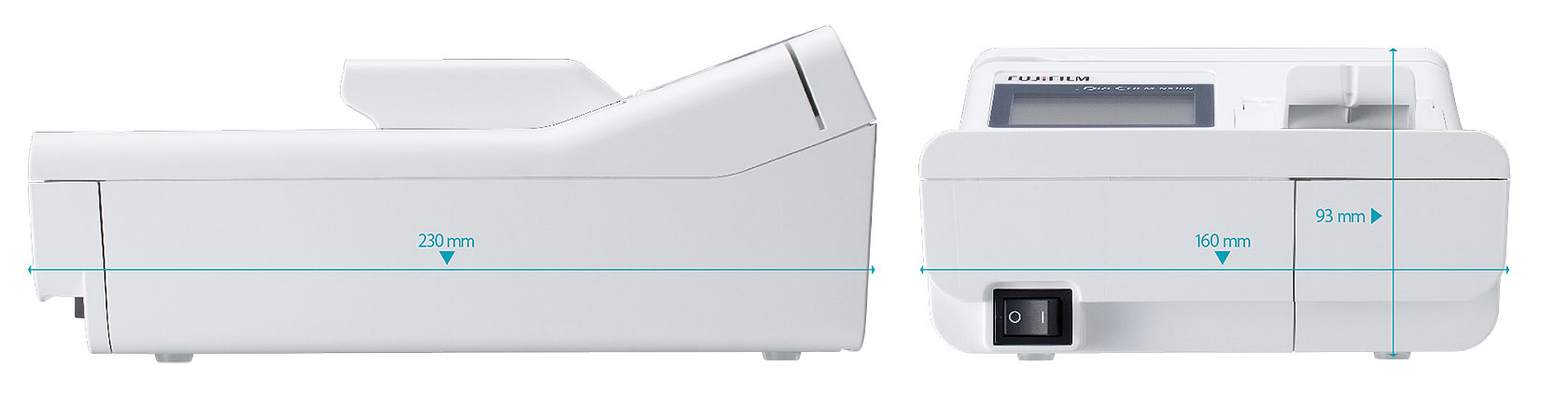

- Dimensions
160 (W) x 230 (D) x 93 (H) mm
- Weight
1.2 kg (Excluding AC adapter)
- External communication
USB connection (virtual COM port RS232C)
- Output terminals

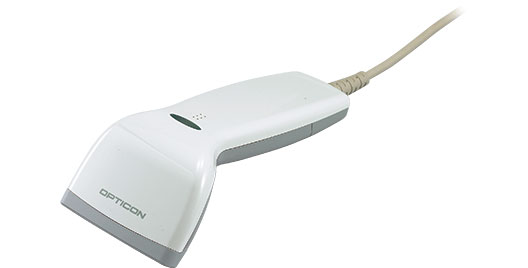

USB Type A (for the barcode reader)
USB Type B (for data transmission)
- * The specifications and appearance of the products shown in this brochure may be changed without prior notification in order to improve the system.
- * Please be sure to read the instruction manual carefully for proper use of the equipment.
