4K Studio / Field Lenses - Overview

NEW

FUJINON 4K Studio/ Field lenses deliver premium image quality across a versatile range of shooting scenes.

2/3" Studio / Field Box Lenses

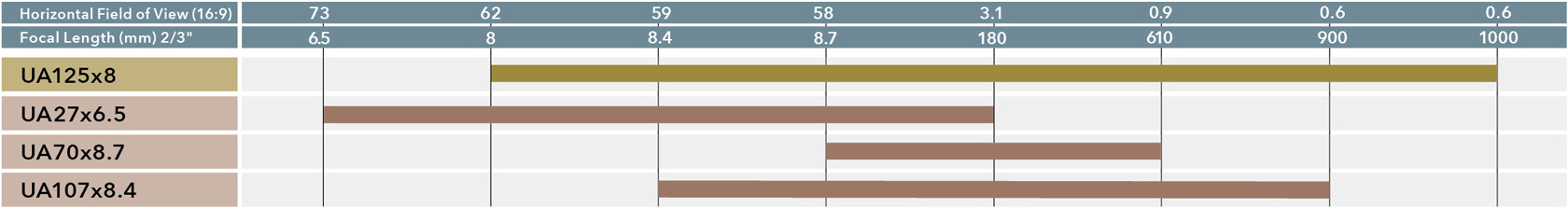

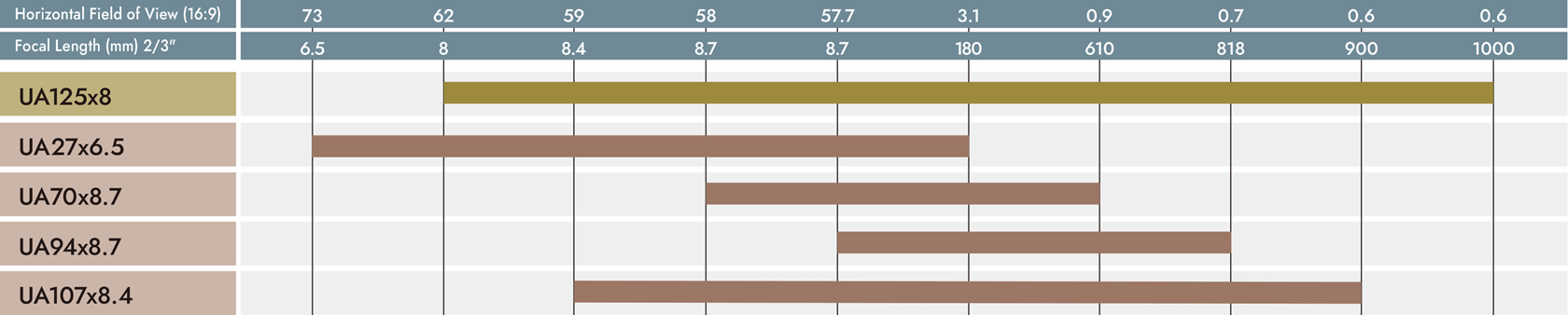

Chart comparing the Horizontal Field of View (16:9) and the Focal Length (2/3 inch) by model number
Lineups 4K Plus Premier Series
UA80x9BESM 1.2x EXT
  • Advanced optical performance that enables 4K compatibility under any shooting conditions
  • Enabling further telephoto shooting by newly developed incorporating a 1.2x extender
  • 9-blade round iris enabling natural bokeh in images
  • Featuring the popular optical stabilization mechanism
  • Equipped with 16bit encoder for virtual device
[photo] 4k Studio / Field lens model UA80x9BESM 1.2x EXT
Specifications
Model Name

UA80x9BESM 1.2x EXT

Focal length

[1x]
9-720mm

[1.2x]
10.8-864mm

[2x]
18-1440mm

Zoom ratio

80x

Extender

1.2x, 2x

Maximum relative aperture (F-no.)

1:1.7 (9-350mm) 1:3.5 (720mm)

Minimum object distance (M.O.D.) from front lens

3.7m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
9mm 3501mm x 1968mm
720mm 46mm x 26mm

[1.2x]
10.8mm 3009mm x 1692mm
864mm 39mm x 22mm

[2x]
18mm 1816mm x 1021mm
1440mm 23mm x 13mm

Angular field of view
16 : 9 Aspect ratio

[1x]
9mm  56.1°× 33.3°
720mm  0.8° × 0.4°

[1.2x]
10.8mm  47.9° × 28.0°
864mm  0.6° × 0.4°

[2x]
18mm  29.8° × 17.0°
1440mm  0.4° × 0.2°

Approx. Size

258 x 264 x 610mm(H×W×L)

Approx. Mass

23.5kg

UA125×8BESM
  • Achieved both highest magnifications*2 125x and 4K optical performance
  • Perfect for live sports coverage with the optical 125× zoom
  • Unique optical image stabilization mechanism
  • Vivid color reproduction and HDR-based rich tonal gradation for superior video production
  • Natural bokeh achieved with 9blade diaphragm
  • Standard feature of a built-in 16bit encoders
[photo] 4k Studio / Field lens model UA125×8BESM
Specifications
Model Name

UA125×8BESM

Focal Length

[1x]
8-1000mm

[2x]
16-2000mm

Zoom Ratio

125x

Extender

2 x

Maximum Relative Aperture (F-No.)

1:1.7(8-340mm) 1:5.0(1000mm)

Minimum Object Distance (M.O.D.) from Front Lens

3.0m

Object Dimensions at M.O.D.
16 : 9 Aspect Ratio

[1x]
8mm         3198mm × 1799mm
1000mm   27mm × 15mm

[2x]
16mm       1677mm × 943mm
2000mm   14mm × 8mm

Angular Field of View
16 : 9 Aspect Ratio

[1x]
8mm         61.9° x 37.2°
1000mm   0.55° x 0.31°

[2x]
16mm       33.4° x 19.1°
2000mm   0.27°x 0.15°

Approx. Size

258 x 264 x 635mm(H×W×L)

Approx. Mass

26.6Kg

4K Premier  Series
UA27x6.5BESM
  • Advanced optical performance with 4K compatibility across the zoom range
  • Achieving natural bokeh with the adoption of nine aperture blades
  • 27x zoom from 6.5mm at wide angle to 180mm at telephoto for covering a wide variety of scenes
  • Maximum aperture ratio of f1.5 to draw out full optical performance with 4K compatibility
  • Equipped with 16-bit encoder*1
[photo] 4k Studio / Field lens model UA27x6.5BESM
Specifications
Model Name

UA27x6.5BESM

Focal Length

[1x]
6.5-180mm

[2x]
13-360mm

Zoom ratio

27x

Extender

2x

Maximum relative aperture (F-no.)

1:1.5(6.5-123mm)  1:2.2(180mm)

Minimum object distance (M.O.D) from the front lens element

0.6m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
6.5mm   1063 x 597mm
180mm   38 x 21mm

[2x]
13mm   529 x 297mm
360mm   20 x 11mm

Angular field of view
16 : 9 Aspect ratio

[1x]
6.5mm   72.8° x 45.0°
180mm   3.1° x 1.7°

[2x]
13mm   40.5° x 23.4°
360mm   1.5° x 0.9°

Approx. Size

258mm x 264mm x 536mm (H x W x L)

Approx. Mass

22.8kg

UA70x8.7BESM
  • 70x zoom lens covering the most frequently-used focal lengths from 8.7mm in wide angle to 610mm in telephoto
  • Cutting-edge optical design to produce dynamic 4K footage in a diverse range of scenes
  • Natural bokeh achieved with nine-blade diaphragm
  • Stock-standard 16-bit encoder
[photo] 4k Studio / Field lens model UA70x8.7BESM
Specifications
Model Name

UA70x8.7BESM

Focal Length

[1x]
8.7mm-610mm

[2x]
17.4mm-1220mm

Zoom ratio

70x

Extender

2x

Maximum aperture ratio

1:1.7(8.7-340mm) 1:3.05(610mm)

Minimum object distance (M.O.D) from the front lens element

3.05m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
8.7mm 2,935mm x 1,651mm
610mm 44mm x 25mm

[2x]
17.4mm 1,537mm x 865mm
1220mm 23mm x 13mm

Angular field of view
16 : 9 Aspect ratio

[1x]
8.7mm 57.7° x 34.4°
610mm 0.9° x 0.5°

[2x]
17.4mm 30.8° x 17.6°
1220mm 0.5° x 0.3°

Approx. Size

258 x 264 x 610mm (H x W x L)

Approx. Mass

23.8kg

UA107x8.4BESM
  • The world's first *2 4K-compatible broadcast lens that features the AF function
  • Perfect for live sports coverage with the optical 107× zoom
  • Unique optical image stabilization mechanism
  • Vivid color reproduction and HDR-based rich tonal gradation for superior video production
  • Natural bokeh achieved with 9blade diaphragm
  • Standard feature of a built-in 16bit encoders
[photo] 4k Studio / Field lens model UA107x8.4BESM
Specifications
Model Name

UA107x8.4BESM

Focal Length

[1x]
8.4-900mm

[2x]
16.8-1800mm

Zoom ratio

107x

Extender

2x

Maximum Relative Aperture (F-No.)

1:1.7 (8.4-340mm)  1:4.5 (900mm)

Minimum object distance (M.O.D.) from front lens

3.05m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
8.4mm  3053mm x 1717mm
900mm  30mm x 17mm

[2x]
16.8mm 1594mm x 896mm
1800mm 15mm x 9mm

Angular field of view
16 : 9 Aspect ratio

[1x]
8.4mm  59.4° × 35.6°
900mm  0.6° × 0.3°

[2x]
16.8mm  31.9° × 18.2°
1800mm  0.3° × 0.2°

Approx. Size

258mm x 264mm x 610mm

Approx. Mass

23.9kg

UA107x8.4BESM AF
  • ​​​​​​The world's first *2 4K-compatible broadcast lens that features the AF function
  • Perfect for live sports coverage with the optical 107× zoom
  • Unique optical image stabilization mechanism
  • Vivid color reproduction and HDR-based rich tonal gradation for superior video production
  • Natural bokeh achieved with 9blade diaphragm
  • Standard feature of a built-in 16bit encoders
[photo] 4k Studio / Field lens model UA107x8.4BESM AF
Specifications
Model Name

UA107x8.4BESM AF

Focal Length

[1x]
8.4-900mm

[2x]
16.8-1800mm

Zoom Ratio

107 x

Extender

2 x

Maximum Relative Aperture (F-No.)

1:1.7(8.4-340mm) 1:4.5(900mm)

Minimum Object Distance (M.O.D.) from Front Lens

3.05m

Object Dimensions at M.O.D. 16 : 9 Aspect Ratio

[1x]
8.4mm  3052mm x 1717mm
900mm  30mm x 17mm

[2x]
16.8mm  1594mm x 896mm
1800mm  15mm x 9mm

Angular Field of View 16 : 9 Aspect Ratio

[1x]
8.4mm  59.4°x35.6°
900mm  0.6°x0.3°

[2x]
16.8mm  31.9°x 18.2°
1800mm  0.3°x 0.2°

Approx. Size

258 x 264 x 670mm(HxWxL)

Approx. Mass

26.0kg

  • *1 The sensor for converting position information into digital signals; Zoom and focus position data is divided in 16-bit resolution and output as electric signals.
  • *2 Among 4K-compatible broadcast lenses as of October 1st, 2019, according to Fujifilm
