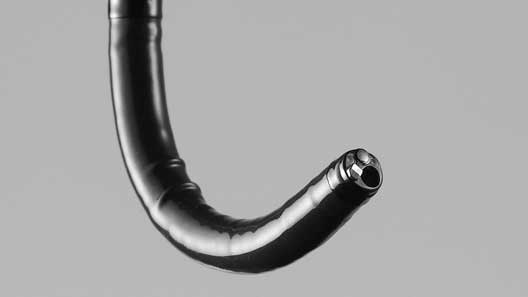

[photo] Flexible insertion tube of gastroscope

Gastroscopes

Upper G.I. tract scope line up with various features.

The content on this page is intended to healthcare professionals and equivalents.

EG-600WR

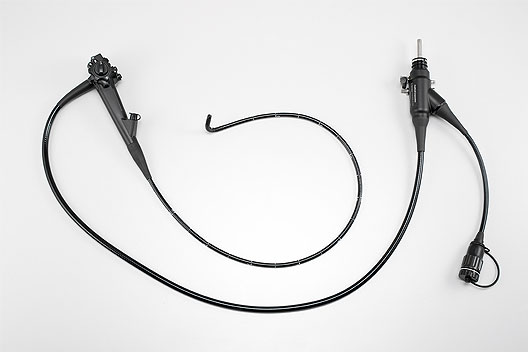

[photo] EG-600WR gastroscope

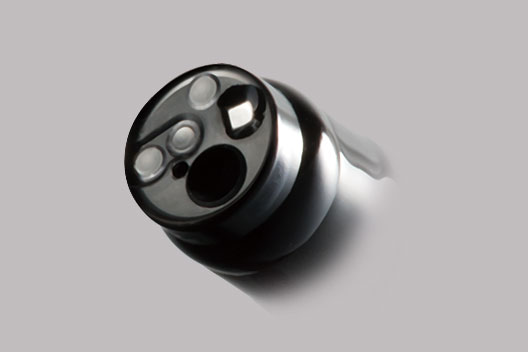

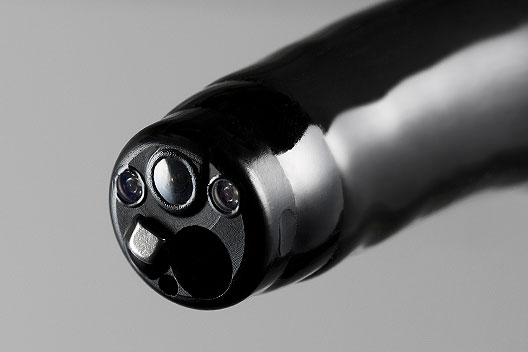

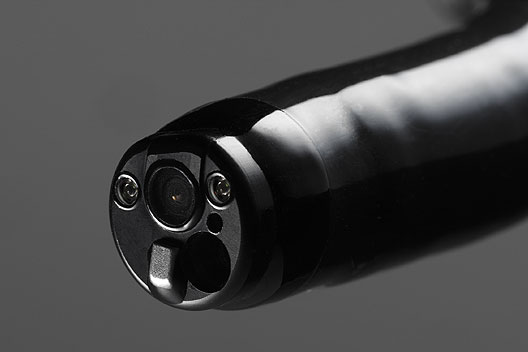

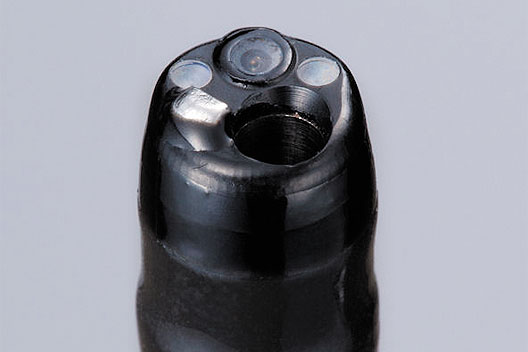

[photo] Distal end/tip of gastroscope, with functional parts

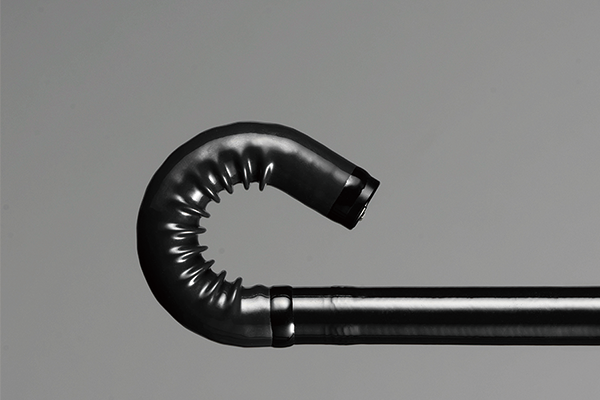

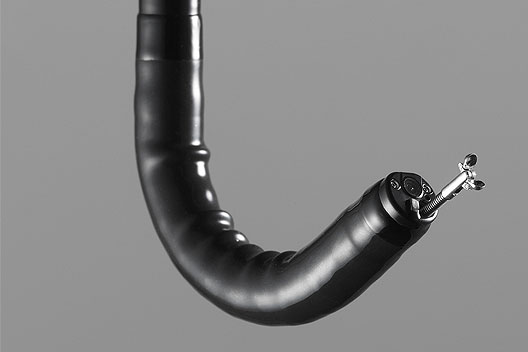

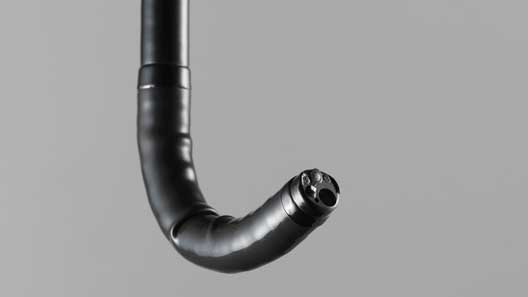

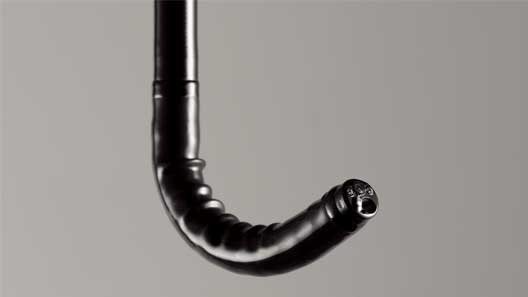

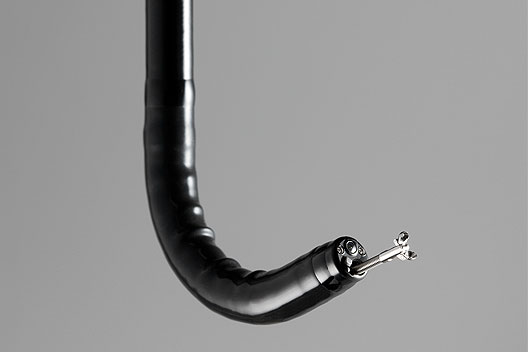

[photo] Flexible tip of scope bent upward with forceps sticking out

Viewing direction: 0°(Forward)
Field of view: 140°
Observation range: 2-100 mm
Distal end diameter: 9.2 mm
Insertion tube diameter: 9.3 mm
Minimum diameter of instrument channel: 2.8 mm
Bending capability: UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°
Working length: 1,100 mm
Total length: 1,400 mm
Water Jet: Available

Product: Video Endoscope
GMDN: 38805
Generic name: Flexible video gastroduodenoscope

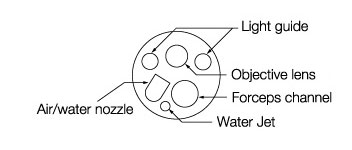

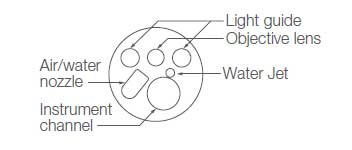

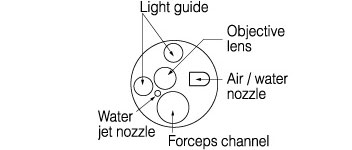

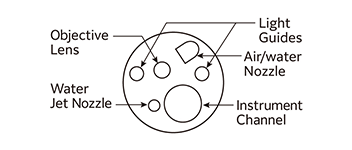

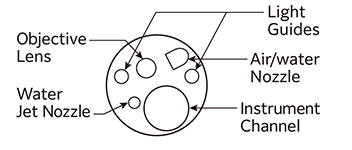

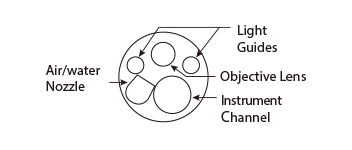

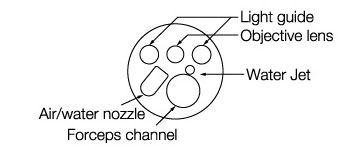

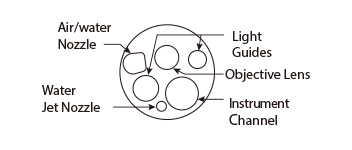

[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet

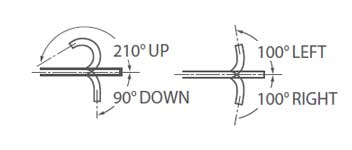

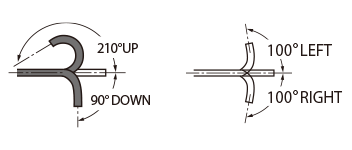

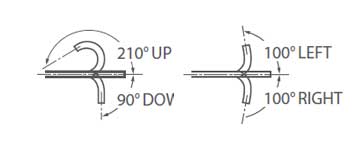

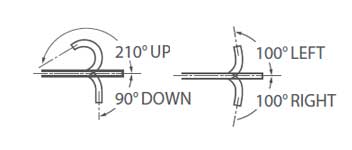

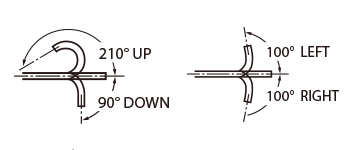

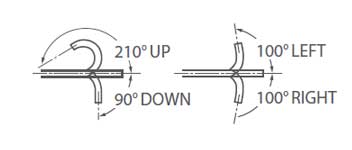

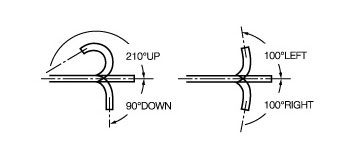

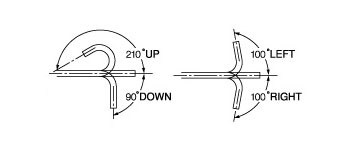

[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right

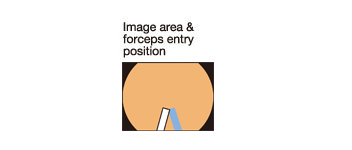

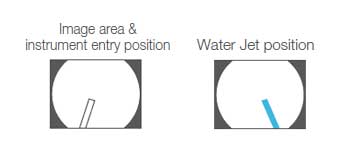

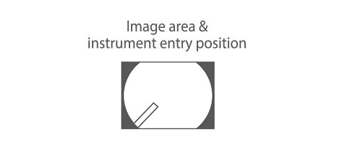

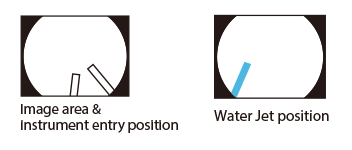

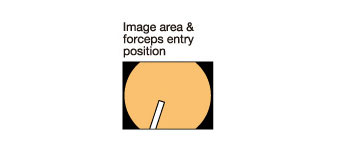

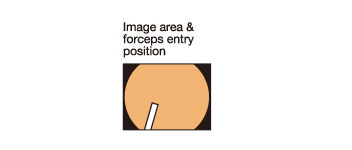

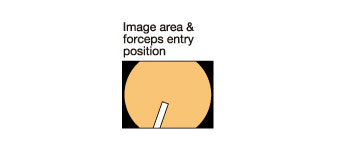

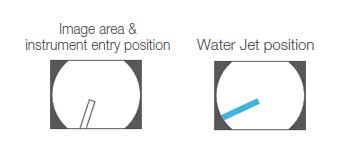

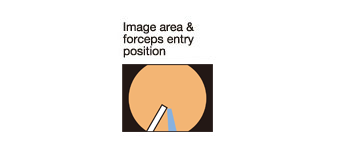

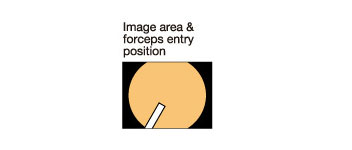

[image] Image area & forceps entry position

EG-600ZW

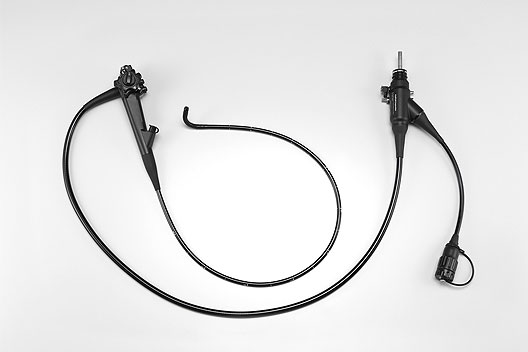

[photo] EG-600ZW gastroscope

[photo] Distal end/tip of gastroscope, with functional parts

[photo] Flexible tip of scope bent upward with forceps sticking out

Viewing direction: 0°(Forward)
Field of view: Normal: 140° / Closest: 56°
Observation range: 1.5-100 mm
Normal: 3-100 mm
Closest: 1.5-2.5 mm
Distal end diameter: 9.9mm
Insertion tube diameter: 9.8mm
Minimum diameter of instrument channel: 2.8mm
Bending capability: UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°
Working length: 1,100 mm
Total length: 1,400mm

Product: Video Endoscope
GMDN: 38805
Generic name: Flexible video gastroduodenoscope

[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet

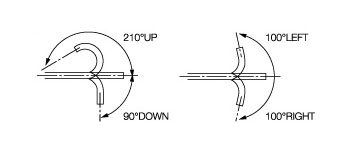

[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right

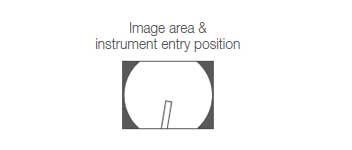

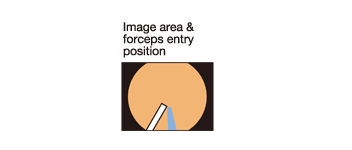

[image] Image area & forceps entry position

Viewing direction: 0°(Forward)
Field of view: 140°
Observation range: 3-100mm
Distal end diameter: 9.8mm
Insertion tube diameter: 9.8mm
Minimum diameter of instrument channel: 3.2mm
Bending capability: UP 210° / DOWN 120°
RIGHT 100° / LEFT 100°
Working length: 1,100mm
Total length: 1,400mm

Product: Video Endoscope
GMDN: 38805
Generic name: Flexible video gastroduodenoscope

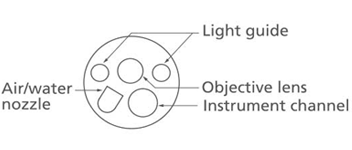

[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet

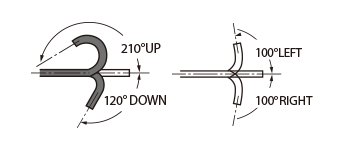

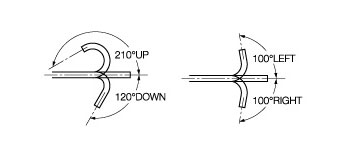

[image] Scope flexibly bends 210 degrees up/120 degrees down and 100 degrees left/right

[image] Image area & forceps entry position

EG-580NW2

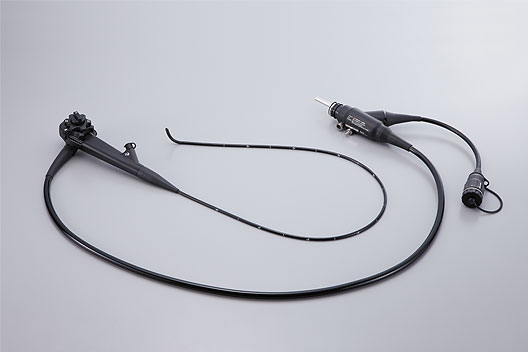

[photo] EG-580NW2 gastroscope

[photo] Distal end/tip of gastroscope, with functional parts

Viewing direction: 0°(Forward)
Field of view: 140°
Observation range: 3-100mm
Distal end diameter: 5.8mm
Insertion tube diameter: 5.9mm
Minimum diameter of instrument channel: 2.4mm
Bending capability: UP 210° / DOWN 90°
RIGHT 100° / LEFT 100°
Working length: 1,100mm
Total length: 1,400mm

Product: Video Endoscope
GMDN: 38805
Generic name: Flexible video gastroduodenoscope

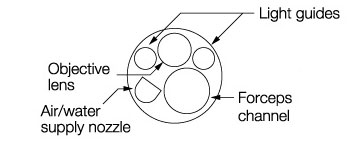

[image] Tip of scope with parts - light guide, forceps channel, objective lens, air/water nozzle, and water jet

[image] Scope flexibly bends 210 degrees up/90 degrees down and 100 degrees left/right

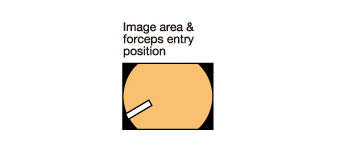

[image] image area & forceps entry position

* Specifications and appearance of products are subject to change without notice.
* Language of indications on products varies by country and region.
* Products comply with regulations of the country or region where they are marketed.
