TECHNO-STABI Series - Overview

NEW

Binoculars with image-stabilization for vibration-free viewing an subject to vibrations.

The world's first electronic gyro stabilizing system for binoculars

The erect prism in the gimbal system is constantly stabilized when the electronic gyro sensor detects vibration, providing vibration correction at a wider range of angles than any other system.

[image] Arrow of light passing through binoculars and being corrected in gimbal section, even at an angle

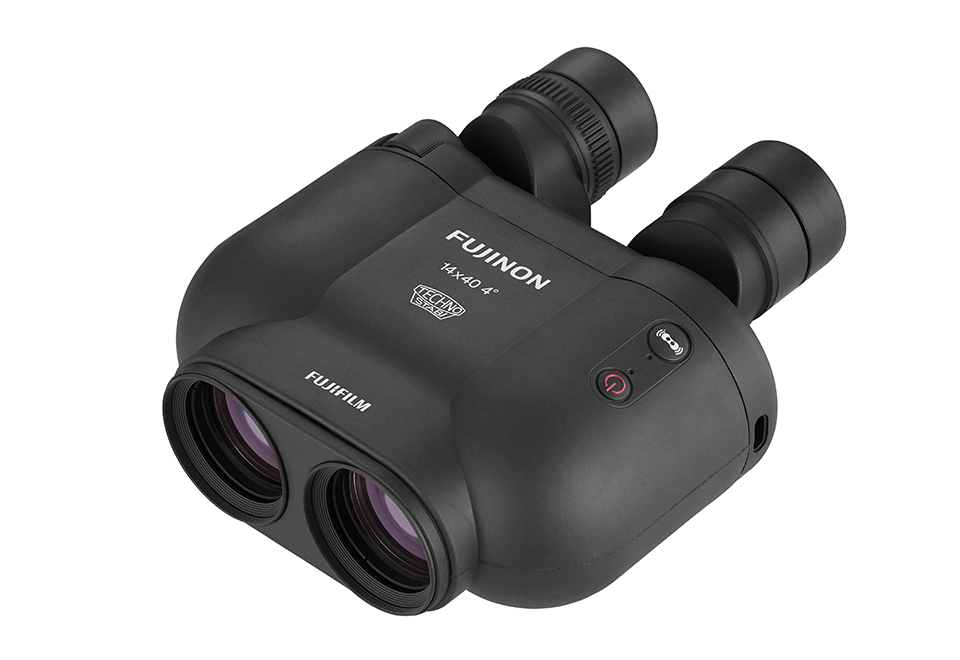

TS-X 1440 / TS-X 1440 Yellow / TS-X 1440 Navy



The TS-X comes with our strongest vibration-correction system for a steady view in bumpy conditions.

  • Class-Leading image stabilization* at ±6° Provides a stress-free experience in cars, boats, and other bumpy transportation.
  • The latest image stabilization system works at high magnification levels, making it easy to adjust the focus without losing sight of your target.
  • Enables a steady image at 14x magnification without a tripod - impossible in binoculars without vibration correction.
  • Waterproof and user-friendly design, making these binoculars the perfect companion in a wide range of settings that include marine sports, safaris, professional fishing, and sailing.

  • *According to September 2019 research conducted by Fujifilm on vibration-correcting binoculars.
  •
TS-X 1440, TS-X 1440Yellow, TS-X 1440Navy
Specifications
Magnification

14

Objective diameter (mm)

40

Field of view (°)

4

Apparent field of view (°) *1

52.1

Field of view at 1000m (m)

70

Exit pupil

2.9

Relative Brightness

8.2

Eye relief (mm)

13

Minimum Focus Distance (m) *2

5

Height (mm)

179.5

Width (mm)

165

Depth (mm)

81

Weight (g)
(w/o Battery)

1,300

Adustment range for interpupillary distance (mm)

60-70

Dioptric adjustment range (±mm)

±2

Focus type

CF

Water resistant*3

1m-5min

Battery

AA×4 or Ni-MH×4

Operationg temperature

−10℃ - +50℃

Bundled item: Lens cap, eyepiece caps, case, strap and 4 AA alkaline batteries.

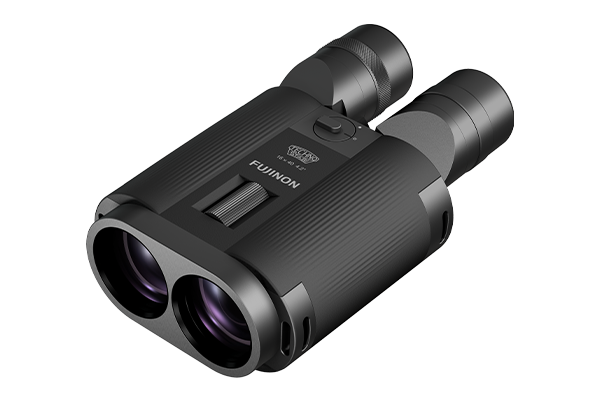

TS12×28WP NEW

The TECHNO-STABI Compact Waterproof series comes with a high magnification vibration correction feature, providing a steady image at 12x.

  • Compact and lightweight with a stabilization correction of ±3 degrees.
  • Ideal in a variety of settings, including concerts, theme parks, marine leisure and bird-watching.
  • Stabilization activates with a shift switch, providing effortless control during prolonged use.
  • Provides sharp image at a high magnification without the use of a tripod.
[photo] TS12×28WP binoculars
Specifications
Magnification

12

Objective diameter (mm)

28

Field of view (°)

4.2

Apparent field of view (°) *1

47.5

Field of view at 1000m (m)

73

Exit pupil

2.3

Relative Brightness

5.4

Eye relief (mm)

16.5

Minimum Focus Distance (m) *2

3.5

Height (mm)

148

Width (mm)

109

Depth (mm)

74

Weight (g)
(w/o Battery)

485

Adustment range for interpupillary distance (mm)

55-70

Dioptric adjustment range (±mm)

±2

Focus type

CF

Water resistant*3

1m-30min(IPX7)

Battery

CR2×1

Operationg temperature

−10℃ - +50℃

TS16×28WP NEW

The TECHNO-STABI Compact Waterproof series comes with a high magnification vibration correction feature, providing a steady image at 16x.

  • Compact and lightweight with a stabilization correction of ±3 degrees.
  • Ideal in a variety of settings, including concerts, theme parks, marine leisure and bird-watching.
  • Stabilization activates with a shift switch, providing effortless control during prolonged use.
  • Provides sharp image at a high magnification without the use of a tripod.

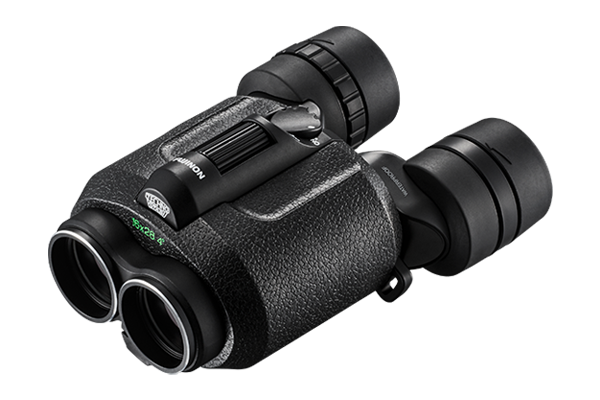

[photo] TS16×28WP binoculars
Specifications
Magnification

16

Objective diameter (mm)

28

Field of view (°)

4

Apparent field of view (°) *1

58.4

Field of view at 1000m (m)

70

Exit pupil

1.8

Relative Brightness

3.1

Eye relief (mm)

16

Minimum Focus Distance (m) *2

3.5

Height (mm)

151

Width (mm)

120

Depth (mm)

74

Weight (g)
(w/o Battery)

550

Adustment range for interpupillary distance (mm)

55-70

Dioptric adjustment range (±mm)

±2

Focus type

CF

Water resistant*3

1m-30min(IPX7)

Battery

CR2×1

Operationg temperature

−10℃ - +50℃

Bundled item: Eyepiece cap, soft-case, neckstrap and CR2 lithium battery.

  • *1 Apparent field of view based on ISO14132-1:2002
  • *2 MOD may differ depends on the viewer's sight in case of Indivisual focus.
  • *3 Do not mean it can be used in water.
