FUJIFILM Web Seminar
Digitalization of pressure measurement for production/equipment analysis
Date: September 12th, 2024
Time: 10:00 - 11:30 CET
Method: Zoom
Language: English
Fee: Free
Content of the Web seminar
- Introduction of Prescale & FUJIFILM Prescale Mobile including demonstration of the analysis app
- Explanation on functions and features of the analysis app
- Application examples
Optimize your production and pressure analysis with the solution provided by FUJIFILM!
Pressure and pressure distribution, which could not be visually observed in the past, can now be easily confirmed.
Prescale allows you to easily measure pressure distribution and range. Created using Fujifilm's advanced thin film coating technologies, the pressure inspection sensor on the entirety of the film allows you to confirm pressure distribution of the entire surface at a glance. The color appears red where pressure is applied, and the color density varies according to the amount of pressure. To cover a wide pressure range (0.006 to 300 MPa), we supply nine types of Prescale.
Prescale Sheets are a version of Prescale that are pre-cut into easy-to-use sizes. It is recommended for first-time users and for small-scale applications. To cover a wide pressure range (0.2 to 300 MPa), we supply six types of Prescale Sheets.
![Measure tire pressure](https://asset.fujifilm.com/www/tr/files/2020-05/31d0c89739498e2d32943cbae4a3b686/pic_prescale_03.jpg)

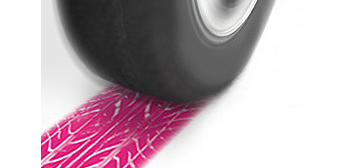

Measure tire pressure
![Measure the pressure distribution of cleaning polish against liquid crystal panels](https://asset.fujifilm.com/www/tr/files/2020-05/4664832deb287b17d896897529e8d886/pic_prescale_04.jpg)
Measure the pressure distribution of cleaning polish against liquid crystal panels
![Measure the pressure between cylinder heads and cylinder blocks](https://asset.fujifilm.com/www/tr/files/2020-05/2abdf639d0ad7013dd5472fff0222c34/pic_prescale_05.jpg)
Measure the pressure between cylinder heads and cylinder blocks
- Product name/Model
Prescale (Two-sheet type/Mono-sheet type)
- Precision
±10% or less (measured by a densitometer at 23°C, 65% RH)
- Recommended temperature
20°C to 35°C*1
- Recommended humidity
35% RH to 80% RH*2 *3
*1 Ultra extreme low pressure (5LW) / Extreme low pressure (4LW) / Super high pressure (HHS): 15°C–30°C
*2 Ultra extreme low pressure (5LW) / Extreme low pressure (4LW): 20% RH–75% RH
*3 Super high pressure (HHS): 35% RH–70% RH
<How to calculate pressure value (MPa)>
We supply nine types of Prescale and six types of Prescale Sheets for use depending on the pressure range.
Each product is made for a certain pressure range (MPa). Customers must confirm the pressure value of their application environment.
- * W in the product codes indicates two-sheet type, S indicates mono-sheet type
Pressure quantification tool
By using the tools below, you can quantify pressure, perform detailed analysis, and share data.
Products |
Fuji Digital Analysis System fore |
Pressure Image Analysis App |
---|---|---|
Overview | Colorized Prescale is digitiloized using a scanner and converted into numerical data by software. | A dedicated app that enables easy quantification of pressure by capturing the colored Prescale with mobile device. |
Usable Prescale | All Prescale |
Prescale (5LW~MW) |
Supported Measurements | 6 Items | 12 Items |
Inspection time*4 | Around 2 minutes | Few seconds |
Precision | Equivalent |
*4 Inspection time: After registering the inspection conditions, the time from reading the prescale to displaying the inspection results.
FUJIFILM Prescale Mobile has been selected for an international design award!
(Published 2023/12/4)
![Reddot winner 2023 logo](https://asset.fujifilm.com/www/tr/files/2024-03/28bc79303ff247156be2590bed4b2383/logo_overview_01.jpg)
Red Dot Award:
Brands & Communication Design 2023
![IDEA 2023 Finalist logo](https://asset.fujifilm.com/www/tr/files/2024-03/e3139e333eb80199dce5024bdf3b31cd/logo_overview_02.jpg)
IDEA 2023 Finalist
![GOOD DESIGN AWARD 2023 logo](https://asset.fujifilm.com/www/tr/files/2024-03/d6b0ba75127828554fc4636c27a17b47/logo_overview_03.jpg)
Good Design Award 2023
Judges Evaluation : As the aging of skilled workers and the shortage of skilled workers will become increasingly important issues in the future, this service utilizes a pressure measurement film that applies the film technology that the company has cultivated over many years, and allows for comparison and automatic measurement on a smartphone app. It provides support functions such as judgment and allows anyone to perform specialized inspections using a simple user interface, and can be said to be a good example of using DX to inherit and systemize the skills of individual craftsmen.
FUJIFILM Prescale Mobile
The app that enables any user to quantify pressure and other analysis results with ease.
Prescale Mobile is a dedicated app that enables easy quantification of pressure by capturing the colored Prescale with mobile device. You can also register and inspection images against your own boundary sample.
- Easily quantitative inspection
- Improve inspection quality
- Improve traceability
![FUJIFILM Prescale Mobile](https://asset.fujifilm.com/www/tr/files/2024-03/1b4c0a37269b015136a6db95b461bb7a/pic_prescale_10.png)
Please see the "Product page" for more detailed functions, specifications, usage, etc. of FUJIFILM Prescale Mobile.
The Pressure distribution mapping system FPD-8010E makes it possible to take color samples produced by pressure using Prescale and Prescale Sheets, and to perform various methods of analysis more precisely. By visualizing pressure and performing analysis on a PC, there would be a wide variety of potential applications—from designing and developing various products to improving production equipment and conducting maintenance.
- Product name/Model
FUJIFILM PRESSURE DISTRIBUTION MAPPING SYSTEM for PRESCALE FPD-8010E
- Components
Dedicated software (CD-ROM), Dedicated cover, Calibration sheet, Installation manual
- Main functions
Pressure analysis / Pressure data output function / Partial zoom function / Excess length synthesis function
- Applicable scanner
Epson A4 Scanner: Perfection V37/V370, Perfection V600, Perfection V850
- System requirements
OS :
Windows10 Home/Pro(32Bit/64Bit)
Windows11 Home/Pro(64Bit)
CPU : 2GHz or Higher
Memory : 2GB or more
HDD : 32GB or more
Display : XGA or better, 65,000 colors or more
Please see the "Product page" for detailed information on functionality, usage, maintenance/repair service, etc. of FPD-8010E. You can also download trial versions and update to the latest version of the products from this web page.
- General brochure
- Applications for Smartphones and tablet computers industries
- Applications for automobile industries
- Applications for food and pharmaceutical industries
We are also accepting online request for the other information about application examples by usage or by industries, and free sample inquiries.
