Absolute Operability
From any side, thanks to a multi-touch console and live imaging. Operator always has direct control over the surgical procedure.
Display Station
Two 21,5” touch screen monitors fully adjustable in height and angle of view. Ultra sharp details and max zoom with 1920x1920 pixels. Large images and thumbnail in portrait mode. Touchscreen technology for easy image and document call-up and management. I/O ports for easy IT network integration.
Compact Design
Large diameter, lightweight mobile C-arm for easy access to the operating table. Fast, accurate positioning on patient and effortless gliding. Easy to move from one room to another.
Flat Panel
21x21cm with 1.8 million pixels or 30x30cm with 3.8 million pixels for high-resolution, low dose images. aSi technology. Removable grid for low dose applications.
Modulated Power
X-ray emission in pulsed mode with modulated power to suit each type of procedure. Excellent dose/image quality ratio.

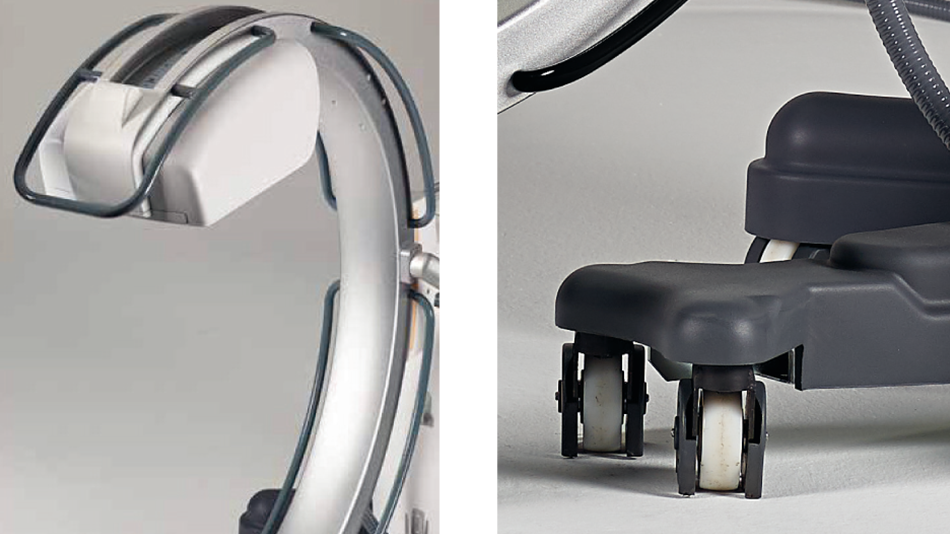

Ergonomic handles to suit all operators, for precise positioning and safe movement between operating theatres.
Soft bumpers on base to prevent painful knocks and mechanical damage.

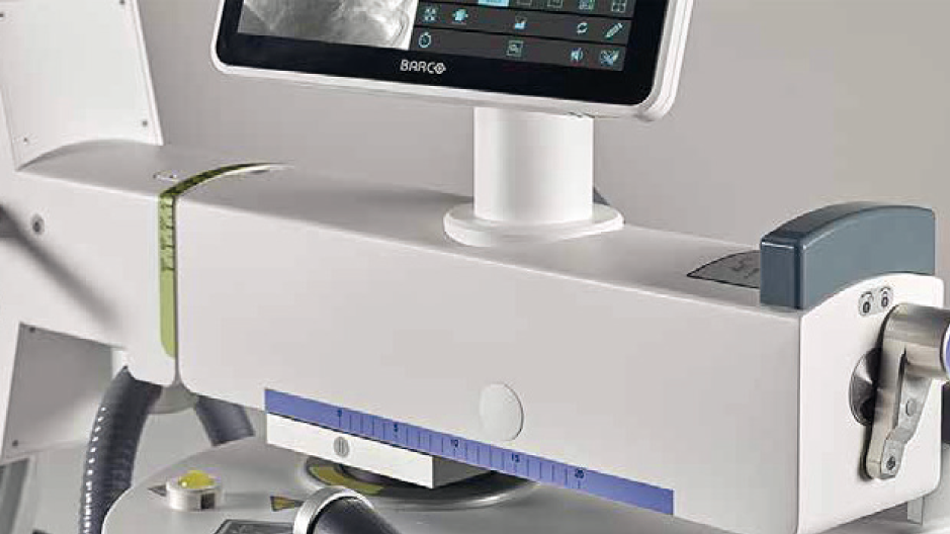

Fast re-positioning thanks to brake/ axis colour coding.
Perfectly balanced C-arm orbital and angular rotation for fast and precise positioning. Responds perfectly to operator touch and feel.

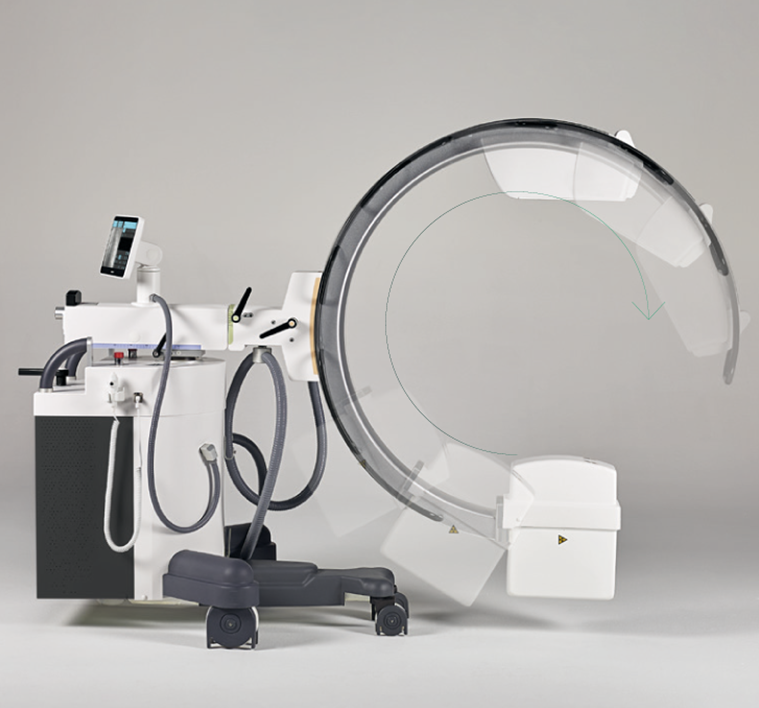

Vast orbital rotation range (from +65° to –95°) makes for easy oblique projections without having to move the stand around the operating table.

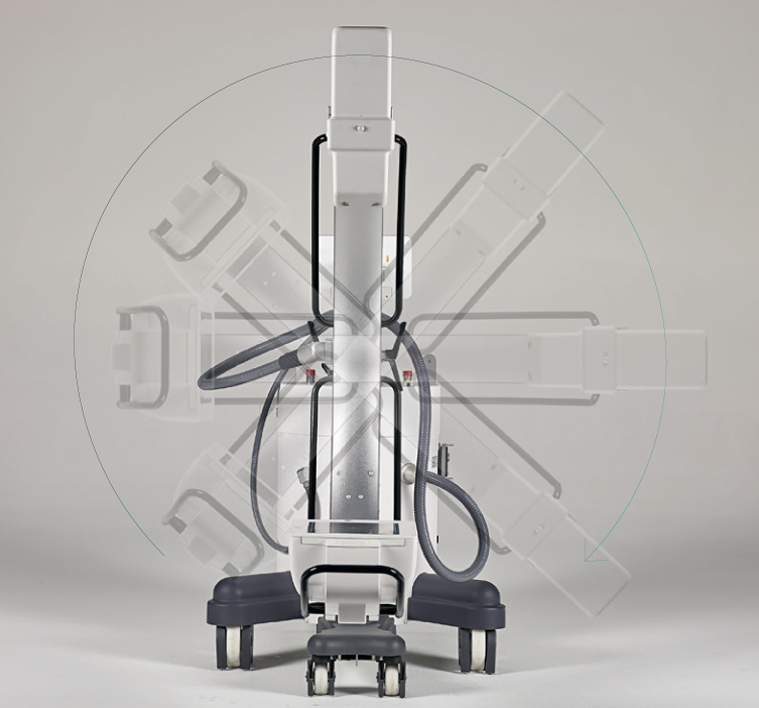

Precise movements and wide angles of more than +/- 210° are possible around and at the front of the patient.

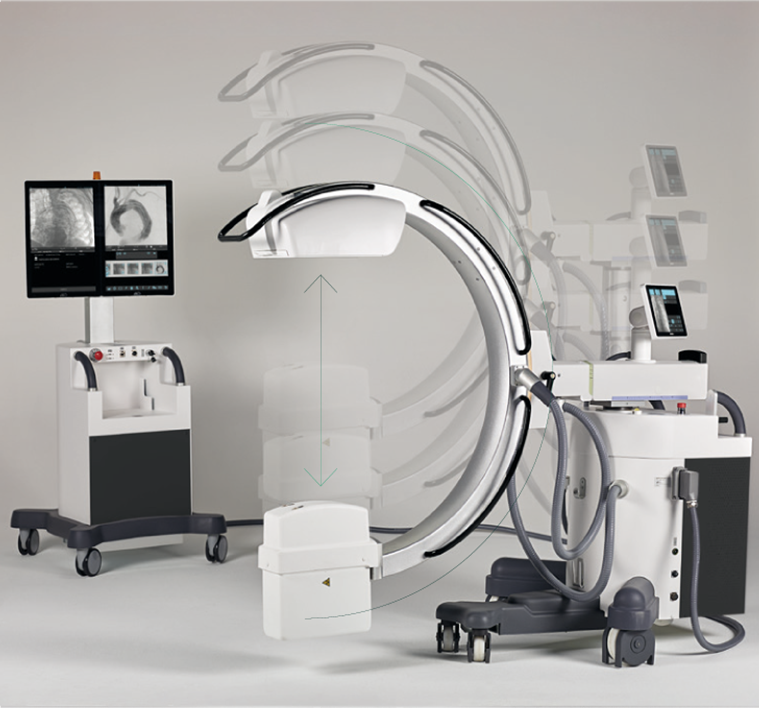

Operator comfort is key: the C-arm has a large range of vertical movement (450 mm).
VIEWSTATION
The ultra-wide 27’’ monitor allows for simultaneous display of live and stored images. Thanks to the 4 MP resolution, the monitor shows even the smallest details. The wide travel of the articulated arm lets you move the monitor comfortably into the ideal position for use or visualization.
CONSOLE
Always within reach and directly linked to the surgical procedure. Live or saved images are always shown together with replace selection with control commands (select, edit, move, send, drag, compress, reduce, expand) ... simply touch the icon to enable the function.
- Function control via wireless footswitch for less cables on the floor.
- Instant login via the NFC device.
- Removable grid for low dose pediatric surgery and gridless procedures.
- X-ray emission controlled by either a foot switch or a multi-function hand switch.
- Easy lifting of the front wheels for overcoming obstacles.
- Top quality display, certified for medical use and in conformity with the relevant standards for diagnostic .imaging.
- Zero dose centering thanks to laser localizers on X-ray tube and on flat panel detector side.
The FDX Visionary-C is manufactured by ATS.
