Bronchoscopes

Bronchoscope with high resolution imaging and great operability.

The content on this page is intended to healthcare professionals and equivalents.

EB-580S

[standard type]

High-resolution bronchoscope with improved operability thanks to 210°upward bending capability and 2.2mm diameter instrument channel.

Field of view

120°

Observation range

2-100mm

Distal end diameter

5.3mm

Insertion tube diameter

5.1mm

Minimum diameter of instrument channel

2.2mm

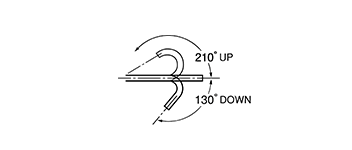

Bending capability

UP 210° / DOWN 130°

Working length

600mm

Total length

870mm

  • Product : Video Endoscope
  • GMDN: 17662
  • Generic name: Flexible video bronchoscope, reusable

EB-580T

[treatment type]

High-resolution bronchoscope to support efficient treatment.

Field of view

120°

Observation range

2-100mm

Distal end diameter

5.8mm

Insertion tube diameter

5.9mm

Minimum diameter of instrument channel

2.8mm

Bending capability

UP 180° / DOWN 130°

Working length

600mm

Total length

870mm

  • Product : Video Endoscope
  • GMDN: 17662
  • Generic name: Flexible video bronchoscope, reusable

EB-530P

[slim type]

Slim type bronchoscope with a 3.8mm slim distal end diameter, suitable for pediatric bronchoscopy.

Field of view

120°

Observation range

3-100mm

Distal end diameter

3.8mm

Insertion tube diameter

3.8mm

Minimum diameter of instrument channel

1.2mm

Bending capability

UP 180° / DOWN 130°

Working length

600mm

Total length

890mm

  • Product : Video Endoscope
  • GMDN: 17662
  • Generic name: Flexible video bronchoscope, reusable

EB-530S

[standard type]

Standard type bronchoscope with a slim distal end diameter suitable for observation, biopsy and treatment.

Field of view

120°

Observation range

3-100mm

Distal end diameter

4.9mm

Insertion tube diameter

4.9mm

Minimum diameter of instrument channel

2.0mm

Bending capability

UP 180° / DOWN 130°

Working length

600mm

Total length

870mm

  • Product name: Video Endoscope
  • GMDN: 17662
  • Generic name: Flexible video bronchoscope, reusable

EB-530H

[standard type]

Standard type bronchoscope with a wide angle image of 140° that further enhances observation, biopsy and treatment capabilities.

Field of view

140°

Observation range

3-100mm

Distal end diameter

5.4mm

Insertion tube diameter

4.9mm

Minimum diameter of instrument channel

2.0mm

Bending capability

UP 180° / DOWN 130°

Working length

600mm

Total length

870mm

  • Product name: Video Endoscope
  • GMDN: 17662
  • Generic name: Flexible video bronchoscope, reusable

EB-530T

[treatment type]

Treatment type bronchoscope with a 2.8mm diameter instrument channel while maintaining the distal end diameter of 5.8mm.

Field of view

120°

Observation range

3-100mm

Distal end diameter

5.8mm

Insertion tube diameter

5.9mm

Minimum diameter of instrument channel

2.8mm

Bending capability

UP 180° / DOWN 130°

Working length

600mm

Total length

870mm

  • Product name: Video Endoscope
  • GMDN: 17662
  • Generic name: Flexible video bronchoscope, reusable

EB-530XT

[treatment type]

Treatment type bronchoscope equipped with a 3.2mm diameter instrument channel providing enhanced suction performance. A wider variety of accessories can be used.

Field of view

120°

Observation range

3-100mm

Distal end diameter

6.2mm

Insertion tube diameter

6.3mm

Minimum diameter of instrument channel

3.2mm

Bending capability

UP 180° / DOWN 130°

Working length

600mm

Total length

3.2mm

  • Product name: Video Endoscope
  • GMDN: 17662
  • Generic name: Flexible video bronchoscope, reusable
  • * Specifications and appearance of products are subject to change without notice.
  • * Language of indications on products varies by country and region.
  • * Products comply with regulations of the country or region where they are marketed.
