LB150 Series - Overview

NEW
Contact Us Catalog
Lineups
25 × 150 MT-SX
  • The large aperture 150mm objective lenses ensure excellent visibility at dusk or night.
  • High-quality EBC multi-coating for high resolution and sharp image throughout the field of view.
  • In addition to their airtight, waterproof structure, these binoculars are corrosion resistant, making them durable enough to withstand temperatures ranging from -20℃ to +50℃.
  • Fujinon recommends the use of dedicated mount and tripod.
[photo] 25 × 150 MT-SX binoculars
Specifications
Magnification

25

Objective diameter (mm)

150

Field of view (°)

2.7

Apparent field of view (°) *1

61

Field of view at 1000m (m)

47

Exit pupil

6

Relative Brightness

36

Eye relief (mm)

18.6

Minimum Focus Distance (m) *2

125

Height (mm)

962

Width (mm)

365

Depth (mm)

525

Weight (g)
(w/o Battery)

18,500

Adustment range for interpupillary distance (mm)

60-70

Dioptric adjustment range (±mm)

−7 - +3

Focus type

IF

Water resistant*3

2m-5min

Battery

-

Operationg temperature

−20℃ - +50℃

25 × 150 ED-SX(made to order)
  • The large aperture 150mm objective lenses ensure excellent visibility at dusk or night.
  • High-quality EBC multi-coating for high resolution and sharp image throughout the field of view.
  • In addition to their airtight, waterproof structure, these binoculars are corrosion resistant, making them durable enough to withstand temperatures ranging from -20℃ to +50℃.

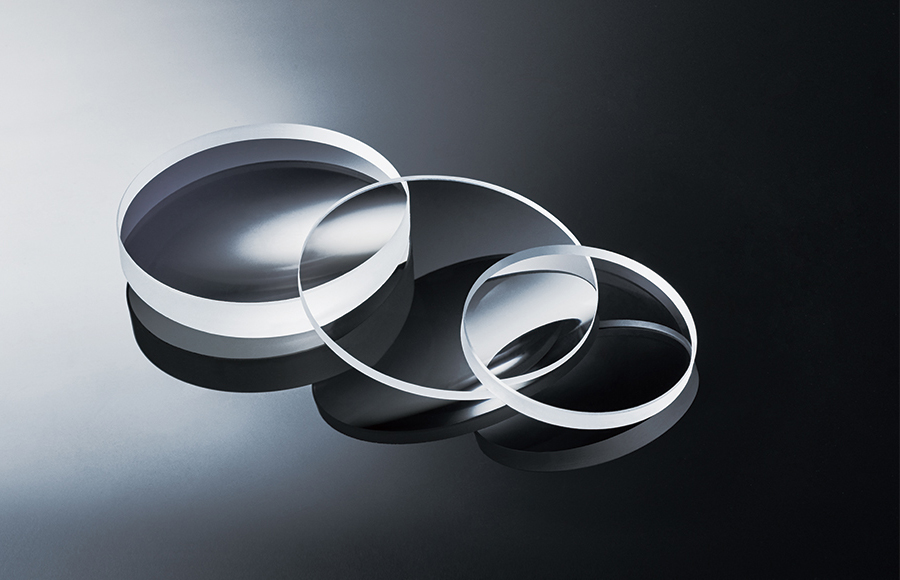

  • The 25x150ED-SX, 40x150ED-SX and 25x150EM-SX have special ED lenses to reduce color aberration for a clear picture even at high magnification.
  •  Fujinon recommends the use of dedicated mount and tripod.
[photo] 25 × 150 ED-SX binoculars (made to order)
Specifications
Magnification

25

Objective diameter (mm)

150

Field of view (°)

2.7

Apparent field of view (°) *1

61

Field of view at 1000m (m)

47

Exit pupil

6

Relative Brightness

36

Eye relief (mm)

18.6

Minimum Focus Distance (m) *2

125

Height (mm)

962

Width (mm)

365

Depth (mm)

525

Weight (g)
(w/o Battery)

18,500

Adustment range for interpupillary distance (mm)

60-70

Dioptric adjustment range (±mm)

−7 - +3

Focus type

IF

Water resistant*3

2m-5min

Battery

-

Operationg temperature

−20℃ - +50℃

40 × 150 ED-SX(made to order)
  • The large aperture 150mm objective lenses ensure excellent visibility at dusk or night.
  • High-quality EBC multi-coating for high resolution and sharp image throughout the field of view.
  • In addition to their airtight, waterproof structure, these binoculars are corrosion resistant, making them durable enough to withstand temperatures ranging from -20℃ to +50℃.
  • The 25x150ED-SX, 40x150ED-SX and 25x150EM-SX have special ED lenses to reduce color aberration for a clear picture even at high magnification.
  • Fujinon recommends the use of dedicated mount and tripod.
[photo] 40 × 150 ED-SX binoculars (made to order)
Specifications
Magnification

40

Objective diameter (mm)

150

Field of view (°)

1.7

Apparent field of view (°) *1

61.4

Field of view at 1000m (m)

30

Exit pupil

3.8

Relative Brightness

14.1

Eye relief (mm)

15

Minimum Focus Distance (m) *2

320

Height (mm)

946

Width (mm)

365

Depth (mm)

525

Weight (g)
(w/o Battery)

18,500

Adustment range for interpupillary distance (mm)

60-70

Dioptric adjustment range (±mm)

−7 - +3

Focus type

IF

Water resistant*3

2m-5min

Battery

-

Operationg temperature

−20℃ - +50℃

15 × 80 MT-SX
  • High-quality EBC multi-coating for high resolution and sharp image throughout the field of view.
  • In addition to their airtight, waterproof structure, these binoculars are corrosion resistant, making them durable enough to withstand temperatures ranging from -20℃ to +50℃.
  • Fujinon recommends the use of dedicated mount and tripod.
  • Bundled with a case.
[photo] 15 × 80 MT-SX binoculars
Specifications
Magnification

15

Objective diameter (mm)

80

Field of view (°)

4

Apparent field of view (°) *1

55.3

Field of view at 1000m (m)

70

Exit pupil

5.3

Relative Brightness

28.4

Eye relief (mm)

15.7

Minimum Focus Distance (m) *2

45

Height (mm)

510

Width (mm)

225

Depth (mm)

455

Weight (g)
(w/o Battery)

7,060

Adustment range for interpupillary distance (mm)

58-72

Dioptric adjustment range (±mm)

−4 - +2

Focus type

IF

Water resistant*3

2m-5min

Battery

-

Operationg temperature

−20℃ - +50℃

  • *1 Apparent field of view based on ISO14132-1:2002
  • *2 MOD may differ depends on the viewer's sight in case of Indivisual focus.
  • *3 Do not mean it can be used in water.

Bundled items: Objective lens cap and winged eyecup.

  • * 15 x 80 MT-SX bundled with a case.
