2/3" Studio / Field Box Lenses

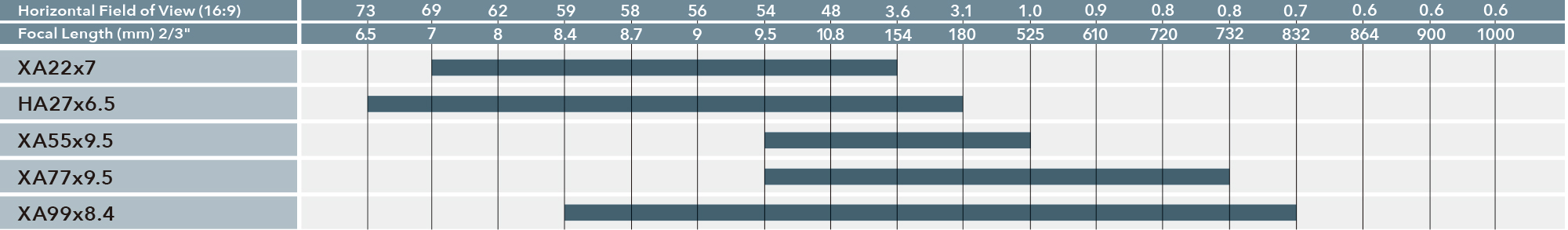

[image] Chart comparing the Horizontal Field of View (16:9) and the Focal Length (2/3 inch) by model number
Lineups
XA55x9.5BESM
  • 55x high-power zoom and high optical performance
  • Equipped standard bracket for cost-effective ENG style camera
  • Standard feature of OS-TECH technology
  • Virtual System Support
  • Adoption of new design
[photo] 2/3 inch Studio / Field Box lens model XA55x9.5BESM
Specifications
Model Name

XA55x9.5BESM

Focal length

[1x]
9.5-525mm

[2x]
19-1,050mm

Zoom ratio

55x

Extender

2x

Maximum Relative Aperture (F-No.)

1 : 1.7 (9.5-308mm)
1 : 2.9 (525mm)

Minimum object distance (M.O.D.) from front lens

3.0m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
9.5mm   2,782 x 1,564mm
525mm   51 x 29mm

[2x]
19mm   1,406 x 790mm
1,050mm   26 x 15mm

Angular field of view
16 : 9 Aspect ratio

[1x]
9.5mm  53.6° × 31.7°
525mm  1° × 0.6°

[2x]
19mm  28.3° × 16.1°
1050mm  0.5° × 0.3°

Approx. Size

253 × 253 × 876mm(HxWxL)

Approx. Mass

24.8 kg

  • * XA55x9.5BESM without lens supporter model is also available.

XA77x9.5BESM
  • 77x high-power zoom
  • High optical performance with newly HT-EBC Coat technology
  • OS-TECH technology
  • Virtual System Support
  • Adoption of new design
[photo] 2/3 inch Studio / Field Box lens model XA77x9.5BESM
Specifications
Model Name

XA77x9.5BESM

Focal length

[1x]
9.5-732mm

[2x]
19.0-1,464mm

Zoom ratio

77x

Extender

2x

Maximum Relative Aperture (F-No.)

1 : 1.7 (9.5-335mm)
1 : 3.8 (732mm)

Minimum object distance (M.O.D.) from front lens

2.7m

Object dimensions at M.O.D.
16 : 9 Aspect ratio

[1x]
9.5mm   2,425 x 1,363mm
732mm   32 x 18mm

[2x]
19.0mm   1,241 x 697mm
1,464mm   16 x 9mm

Angular field of view
16 : 9 Aspect ratio

[1x]
9.5mm  53.6° × 31.7°
732mm  0.8° × 0.4°

[2x]
18.6mm  28.3° × 16.1°
1464mm  0.4° × 0.2°

Approx. Size

253 × 253 × 656.4mm(HxWxL)

Approx. Mass

22.4kg
