FPM 1-1 NE 1

NEW

Filter housing completely made of polypropylene for M-type cartridges.

Support

Overview Filter housing completely made of polypropylene for M type cartridges

Made of chemically stable polypropylene.
Applicable elements: M type cartridge (AS568 222 O-ring type, SOE: Single Open End)
Cartridge length: Single

Specifications

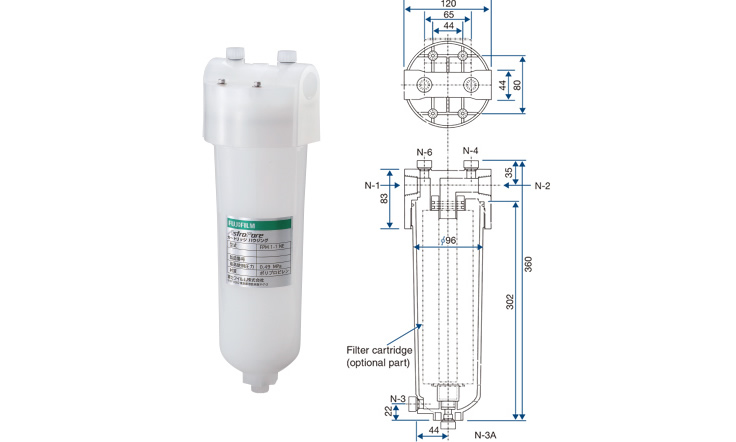

Rough dimensions

As stated above

Bore diameter

N-1 Inlet: Rc3/4 (20A)
N-2 Outlet: Rc3/4 (20A)
N-3 Drain: Rc1/4 (8A)
N-4 Primary vent: Rc1/4 (8A)
N-6 Secondary vent: Rc1/4 (8A)
N-3A Drain: Rc1/4 (8A)

Withstand pressure

0.49MPa

Maximum working temperature

60℃

Material

Main body: Polypropylene
O-ring: EPDM

* For details on the methods of use, refer to the instruction manual included with the product.
* The housing may be built to order in terms of shape and size. For details, contact your sales agent.
* Specifications are subject to change for improvement purposes without prior notice.
