FDR D-EVO III G35i/G43i/C35i/C43i

The content on this page is intended to healthcare professionals and equivalents.

An Evolution of Form and Function

The ever lighter FDR D-EVO III is introduced with our flexible film-based TFT detector, providing high image quality with low X-ray dose. FDR D-EVO series will never stop evolving to improve the workflow in various clinical scenes.

G series LIGHT WEIGHT

* 14 x 17 inch model, without the battery

C series LIGHT WEIGHT

* 14 x 17 inch model, without the battery

Film-based TFT detector with ISS method

Glass-based TFT detector with ISS method

High quality image & Low Dosing

ISS system reading technology promotes higher sensitivity

Like FDR D-EVO II, FDR-D-EVO III is Equipped with an indirect conversion system called the ISS method which bonds optical sensors (TFT) to the X-ray irradiation side unlike traditional flatpanel detectores. This greatly suppresses scattering and attenuation of X-ray signals, creating a sharp image with low X-ray dose.

Waterproofed and dust-proofed

Versatile functionality

LED lamps on the front of device for better visualization

LED lamps are equipped on four sides of the front of the detector, for a visual assistance.

1.Centralizing the device and distinguishing devices
Equipped with side-center LEDs on four sides of the detector, for easier positioning of the device during imaging. There are five LED colors (blue, pink, orange, lime-yellow and purple), to distinguish different devices for different colors when using multiple devices.

2.Device status displayed in green
When the device is ready for X-ray exposure, the LED lights up in green.

3.Front side identification in white
It lights up in white to identify the top-side and bottom-side of the detector.

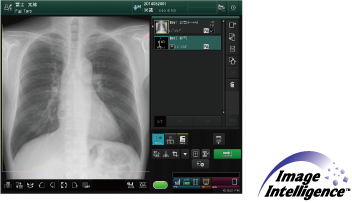

Works together with the console to display the detector status

The docking stand works together with the console to display the detector’s “Ready” status and identify color using the LEDs.
This makes it easy to check the current state of the detector even from far away.

Improved handling

Suitable for outdoor use with an expanded spectrum

FDR D-EVO III is compatible with 2.4GHz and 5GHz (W52/53/56)^*2 spectrum, making the device suitable for outdoors use. Also, the device supports IEEE802.11 ac, the new high-speed wireless LAN.

*2 Wireless band is allowed to be used depending on the regulation of each country.

“SmartSwitch” Technology

Fujifilm developed a technology “SmartSwitch” which allows automatic X-ray detection. With SmartSwitch, FDR D-EVO III no longer requires connection between the X-ray generator and DR power supply unit to automatically detect X-rays and start image creation.

*3 Console Advance

Advanced image processing

3D structure analysis technology to support mobile exam

* These image processing is achieved with Console Advance.

Virtual Grid

Provides a high quality image without using a grid

Virtual Grid processing corrects for the effects of scatter radiation. Without the need for a grid, Virtual Grid retains high contrast and image sharpness, while preventing the asymmetric density resulting from misalignment of X-ray tube and detector. (Option)

Multiple body parts supported

Dynamic Visualization II

Optimizes image quality using latest Exposure Data Recognizer

Advanced recognition algorithms automatically adjust contrast and density for individual body parts based on calculation of estimated 3D image data. (Option)

Product Name：FDR D-EVO III (Model number : DR-ID 1800)
