Ultrasonic Processor SP-900

NEW

Ultrasound observation device that is compact and can be used alone.

Contact Us

The content on this page is intended to healthcare professionals and equivalents.

Ultrasonic ProcessorEndoscopic Ultrasonic ProbeProbe

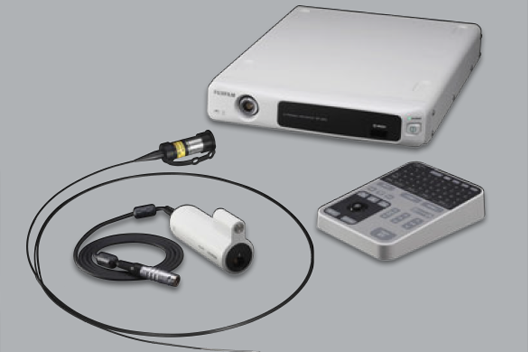

A compact ultrasonic probe system with enhanced operability, designed for a more efficient examination.

Ultrasonic Processor
SP-900
Power

AC 100-240 V, 50 / 60 Hz

Power consumption (rated)

0.7-0.5 A

Size

Dimensions (W×H×D)
377×80×480 mm

Weight
8.0 kg

Ultrasound image display

Scanning system
Mechanical scanning

Probe type
Radial

Scanning mode
B-mode

  • Product : Ultrasonic processor
  • GMDN: 40761
  • Generic name: General ultrasound imaging system, line-powered
Endoscopic Ultrasonic Probe
PB2020-M
Working Length

2,150mm

Outer Diameter*

1.4-1.9mm

Frequency

20MHz

*Outer Diameter of Insertion portion

  • Product name: Endoscopic Ultrasonic Probe
  • GMDN: 40770
  • Generic name: Surgical ultrasound imaging system transducer
Probe
Model Name Working Length Outer Diameter Frequency
P2620-M M Type 2120 mm 2.6 mm 20MHz
P2615-M 15MHz
P2612-M 12MHz
P2620-L L Type 2620 mm 2.6 mm 20MHz
P2615-L 15MHz
P2612-L 12MHz



  • Product name: Probe
  • GMDN: 40770
  • Generic name: Surgical ultrasound imaging system transducer
  • Above models can be connected to SP-900
  • Certain models may not be available in some countries.
