The content on this page is intended to healthcare professionals and equivalents.
EI-580BT
["Short" Double-Balloon Endoscope]
The 'short' Double Balloon Endoscope (sDBE) is engineered to overcome technically-challenging therapeutic ERCP procedures in patients with surgically-altered anatomy such as Roux-en-Y reconstruction or hepaticojejunostomy anastomosis. The 'short' Double Balloon Endoscope‘s length of 155 cm is optimum in these procedures; it provides compatibility with most standard ERCP devices as well as superior manoeuvrability for smoother insertion in situations of complex anatomy.
- Field of view
140°
- Observation range
2-100mm
- Distal end diameter
9.4 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
3.2 mm
- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°- Working length
1,550 mm
- Total length
1,850 mm
- Control portion ＆ Connector
G7 ＆ Conventional Connector
- Product : Video Endoscope
- GMDN: 36112
- Generic name: Flexible video duodenoscope, reusable
A slim-type enteroscope with a distal end diameter of 7.5mm, 1mm smaller than the previous model EN-450P5/20, and an instrument channel diameter of 2.2mm, equivalent to the previous type. The High Resolution Super CCD enables vivid and high quality images, and the optical lens enables the observation range of 2-100mm and a wide-angle 140° field of view. To be used in combination with the silicone rubber over-tube and balloon.
- Field of view
140°
- Observation range
2-100mm
- Distal end diameter
7.5 mm
- Insertion tube diameter
7.7 mm
- Minimum diameter of instrument channel
2.2 mm
- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°- Working length
2,000 mm
- Total length
2,300 mm
- Product : Video Endoscope
- GMDN: 36299
- Generic name: Flexible video enteroscope

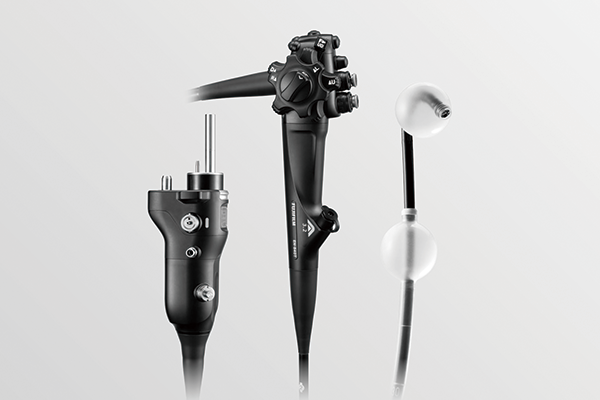

Double-balloon endoscope suitable for both observation and treatment. The 3.2mm instrument channel diameter enables improved suction performance and supports a wider variety of procedures including hemostasis and balloon dilatation. The High Resolution Super CCD enables vivid and high quality images, and the optical lens enables the observation range of 2-100mm and a wide-angle 140° field of view.
- Field of view
140°
- Observation range
2-100mm
- Distal end diameter
9.4 mm
- Insertion tube diameter
9.3 mm
- Minimum diameter of instrument channel
3.2 mm
- Bending capability
UP 180° / DOWN 180°
RIGHT 160° / LEFT 160°- Working length
2,000 mm
- Total length
2,300 mm
- Product : Video Endoscope
- GMDN: 36299
- Generic name: Flexible video enteroscope
